ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Handle Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

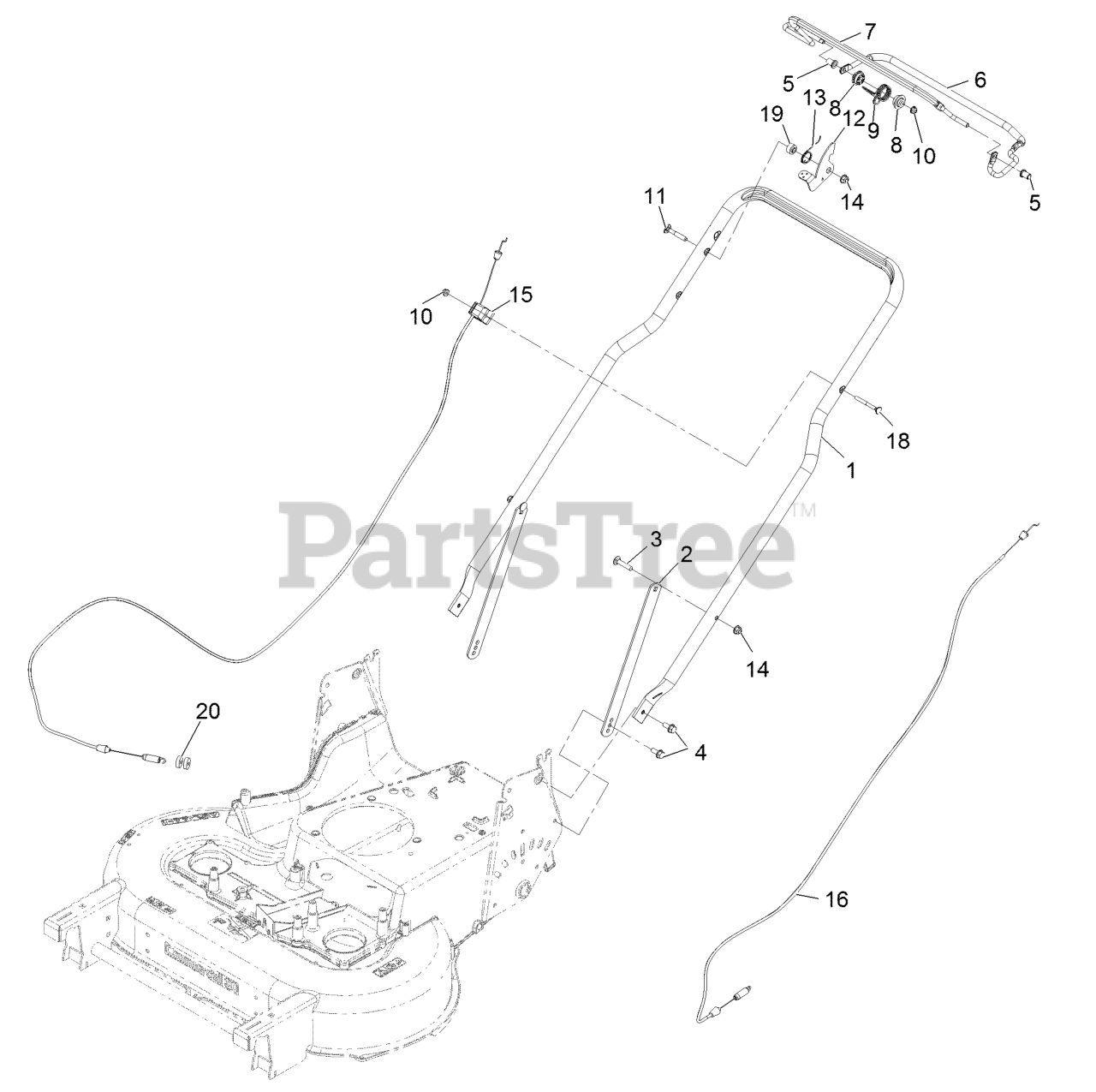

Handle Assembly Parts Diagram

  • Title

1

Exmark 120-7086-03

HANDLE

$94.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8208-03

SUPPORT-HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

4

Exmark 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, only 2 left!

0

6

Exmark 116-7907

BAIL-DRIVE COATED

$49.99

$

In Stock, only 3 left!

0

7

Exmark 109-8442

BAIL

$58.99

$

In Stock, only 1 left!

0

8

Exmark 109-8457

BUSHING-SPRING, PIVOT

$6.49

$

In Stock, only 3 left!

0

9

Exmark 116-5594

SPRING-RETURN, BBC

$2.99

$

In Stock, Qty 11

0

10

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

12

Exmark 116-2998

LEVER-BBC

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, Qty 9

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-0491

133-8157
(Superseded to 133-8157)

$96.99

$

In Stock, only 2 left!

0

16

Exmark 126-1664

CABLE-TRACTION

$35.99

$

In Stock, Qty 20+

0

18

Exmark 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

19

Exmark 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 1 left!

0

20

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

99

Exmark 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0
