ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Front Bumper And Wheel Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

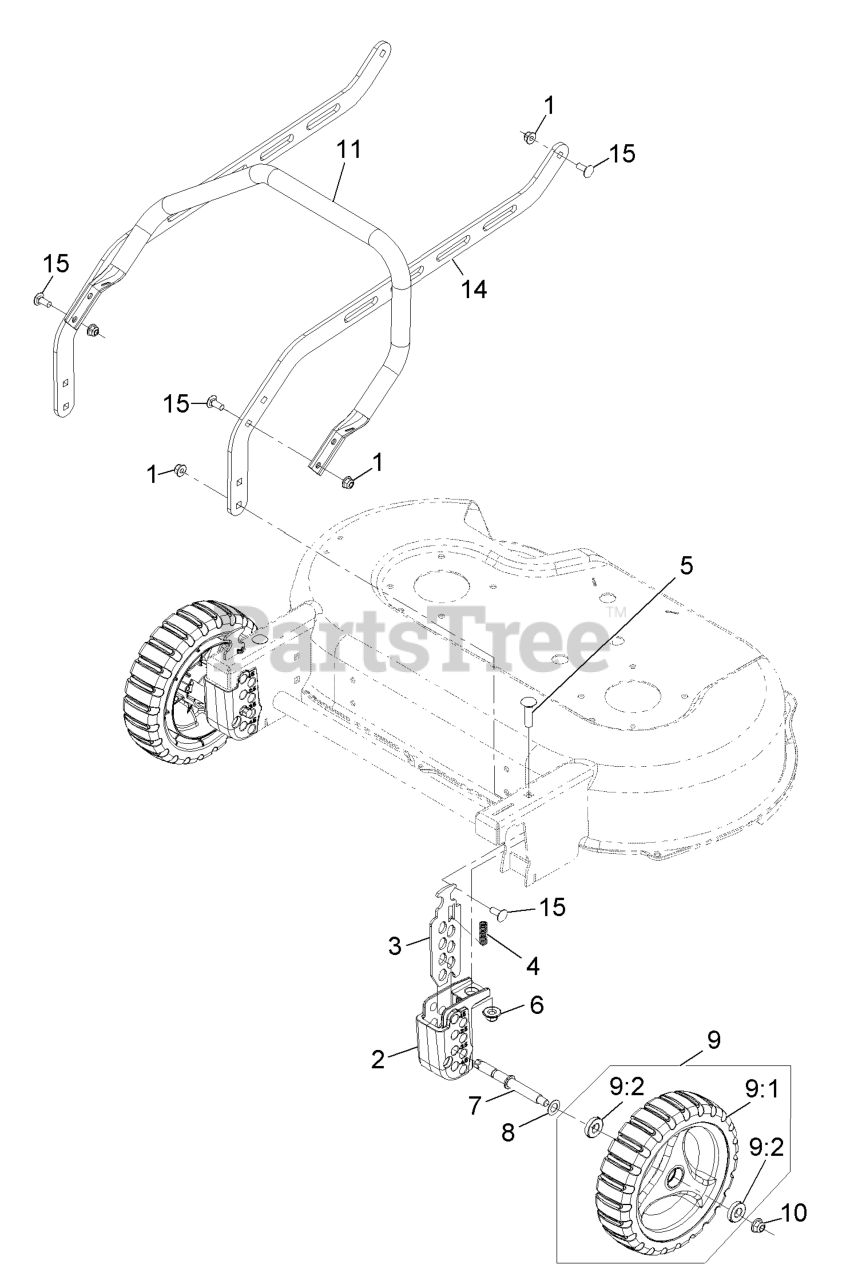

Front Bumper And Wheel Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 116-6357

BLOCK-FRONT QUADRANT

$25.99

$

In Stock, only 4 left!

0

3

Exmark 109-9292

PLATE, FRONT HEIGHT

$16.99

$

In Stock, only 2 left!

0

4

Exmark 109-7258

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 15

0

5

Exmark 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

6

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 2 left!

0

7

Exmark 116-0994

AXLE-WHEEL

$10.99

$

In Stock, Qty 7

0

8

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

9

Exmark 109-8016

126-7347
(Superseded to 126-7347)

$86.99

$

In Stock, Qty 5

0

9:1

Exmark 109-8033

126-7345
(Superseded to 126-7345)

$68.99

$

In Stock, only 2 left!

0

9:2

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$17.99

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-7675-03

GUARD-ENGINE

$57.99

$

Usually ships in 3-6 days

0

14

Exmark 116-7661-03

BRACE-RH

$44.99

$

In Stock, only 1 left!

0

15

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
