ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Deck, Frame, And Chute Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

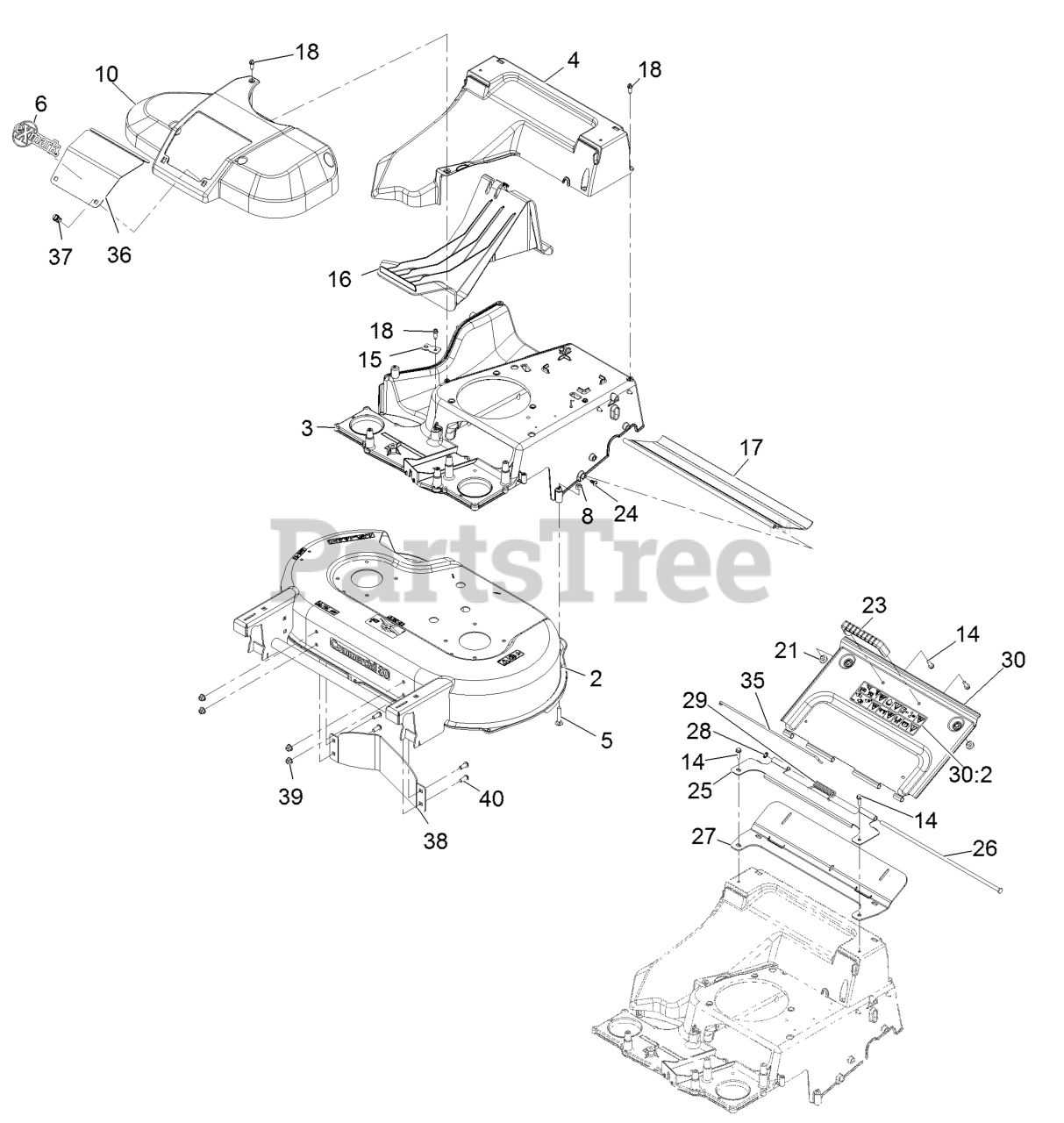

Deck, Frame, And Chute Assembly Parts Diagram

  • Title
2

Exmark 116-8354

126-7582
(Superseded to 126-7582)

$

$

Not available

3

Exmark 127-6859-01

136-5908-01
(Superseded to 140-3978)

$203.99

$

In Stock, Qty 5

0

4

Exmark 120-3336

133-8177
(Superseded to 133-8177)

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 127-6841

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

6

$10.99

$

In Stock, Qty 9

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 121-5810

COVER-BELT
(Superseded to 139-5406)

$36.99

$

In Stock, Qty 8

0

14

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

15

Exmark 107-7497

138-3224
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 5

0

16

Exmark 120-5225

PLUG-MULCH

$29.99

$

In Stock, Qty 13

0

17

Exmark 121-5841

SHIELD-TRAILING

$22.99

$

In Stock, only 2 left!

0

18

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

$6.49

$

In Stock, Qty 9

0

23

Exmark 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

24

Exmark 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-6351-03

BRACKET-HINGE

$39.99

$

In Stock, only 3 left!

0

26

Exmark 116-6933

PIN-HINGE

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 116-6229

SEAL-DOOR

$22.99

$

In Stock, Qty 16

0

28

Exmark 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 116-7573

SPRING-TORSION, COVER

$5.49

$

Usually ships in 3-6 days

0

30

Exmark 116-8355

REAR DOOR ASM

$72.99

$

In Stock, only 1 left!

0

30:2

Exmark 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

35

Exmark 116-6966

CLIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 121-5793-03

DOOR-ACCESS

$17.99

$

In Stock, only 4 left!

0

37

Exmark 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

38

Exmark 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

39

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

99

Exmark 125-5072

FRAME PLATE KIT

Note: Not illustrated

$49.99

$

Usually ships in 3-6 days

0

99:1

Exmark 125-2542

PLATE-FRAME

Note: Not illustrated

$44.99

$

Usually ships in 3-6 days

0

99:2

Exmark 3229-3

SCREW-CARR

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

99:3

Exmark 3296-42

NUT-LOCK, NI

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0
