ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Deck and Wheel Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

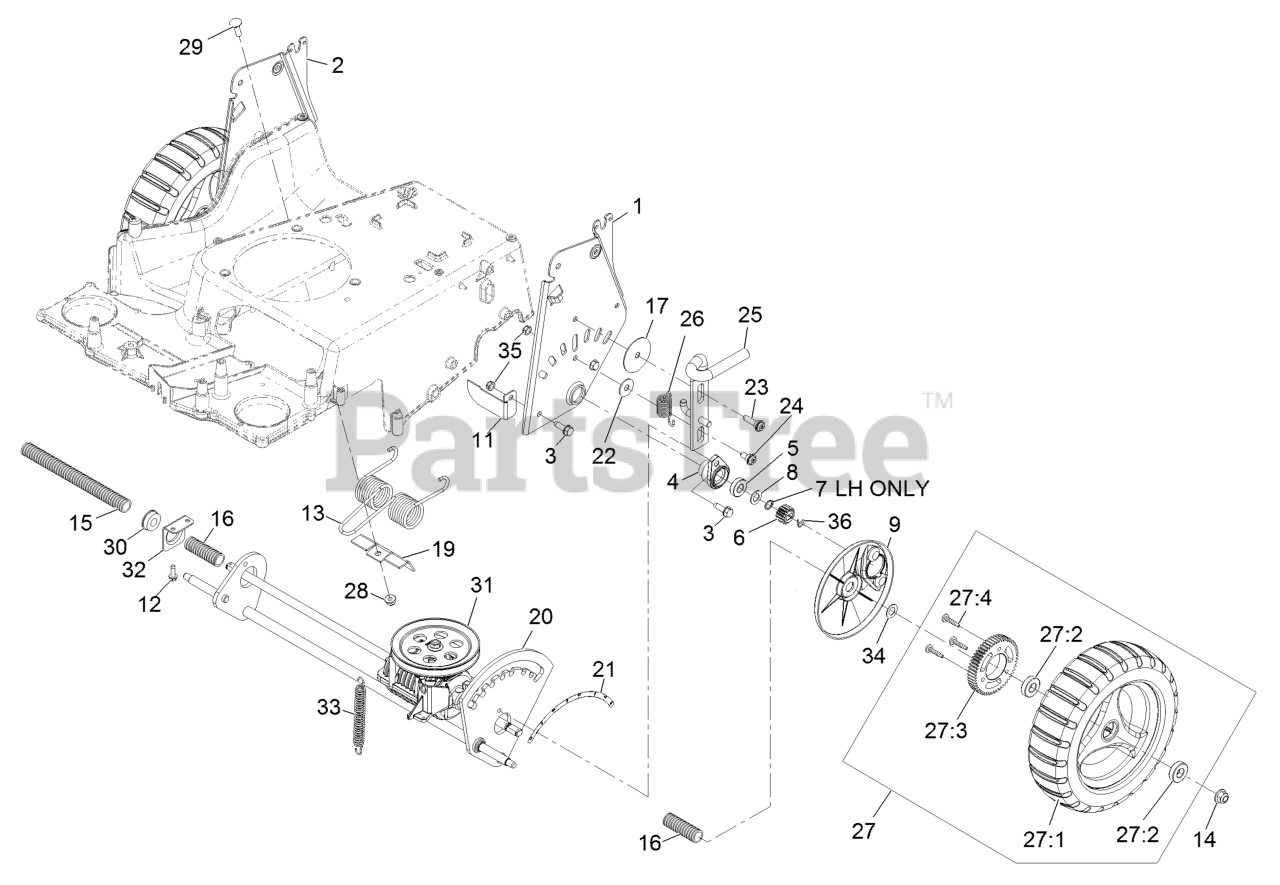

Deck and Wheel Assembly Parts Diagram

  • Title

1

Exmark 121-2394-03

LH HOC PLATE ASM

$43.99

$

Usually ships in 3-6 days

0

2

Exmark 121-2395-03

RH HOC PLATE ASM

$43.99

$

Usually ships in 3-6 days

0

3

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 120-5210

131-5364
(Superseded to 131-5364)

$14.99

$

In Stock, Qty 6

0

5

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$18.99

$

In Stock, Qty 20+

0

6

Exmark 110-9417

131-5399
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

9

Exmark 116-6352

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 121-5821

138-5338
(Superseded to 138-5338)

$6.49

$

In Stock, Qty 6

0

12

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Exmark 121-2368

SPRING-TORSION

$28.99

$

In Stock, only 2 left!

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 121-5799

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 20+

0

16

Exmark 121-5800

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 12

0

17

Exmark 125-2540

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 121-2397

BRACKET

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 120-7095

131-4516
(Superseded to 131-4516)

$115.99

$

In Stock, Qty 5

0

21

Exmark 116-7127

DECAL-HOC, REAR

$6.99

$

In Stock, only 1 left!

0

22

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, Qty 20+

0

24

Exmark 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

0

25

Exmark 120-7090

LOCK-HEIGHT, ADJUST

$36.99

$

Usually ships in 3-6 days

0

26

Exmark 120-9452

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

27

Exmark 116-5291

135-0204
(Superseded to 135-0204)

$110.99

$

In Stock, only 4 left!

0

27:1

Exmark 116-5292

135-0204
(Superseded to 135-0204)

$110.99

$

In Stock, only 4 left!

0

27:2

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$18.99

$

In Stock, Qty 20+

0

27:3

Exmark 109-7264

GEAR

$28.99

$

In Stock, only 1 left!

0

27:4

Exmark 27-6260

SCREW-DRIVE

$1.49

$

In Stock, only 1 left!

0

28

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

30

Exmark 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

31

Exmark 130-6671

131-9667
(Superseded to 131-9667)

$222.99

$

In Stock, Qty 20+

0

32

Exmark 120-7008

138-3233
(Superseded to 138-3233)

$5.49

$

In Stock, Qty 14

0

33

Exmark 120-7027

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

34

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

35

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

36

Exmark 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0
