ECH980-3045 - Kohler Command PRO EFI Engine, Made for HCP, 38hp 09 ENGINE CONTROLS Parts Diagram

Command PRO EFI Engine, Made for HCP, 38hp

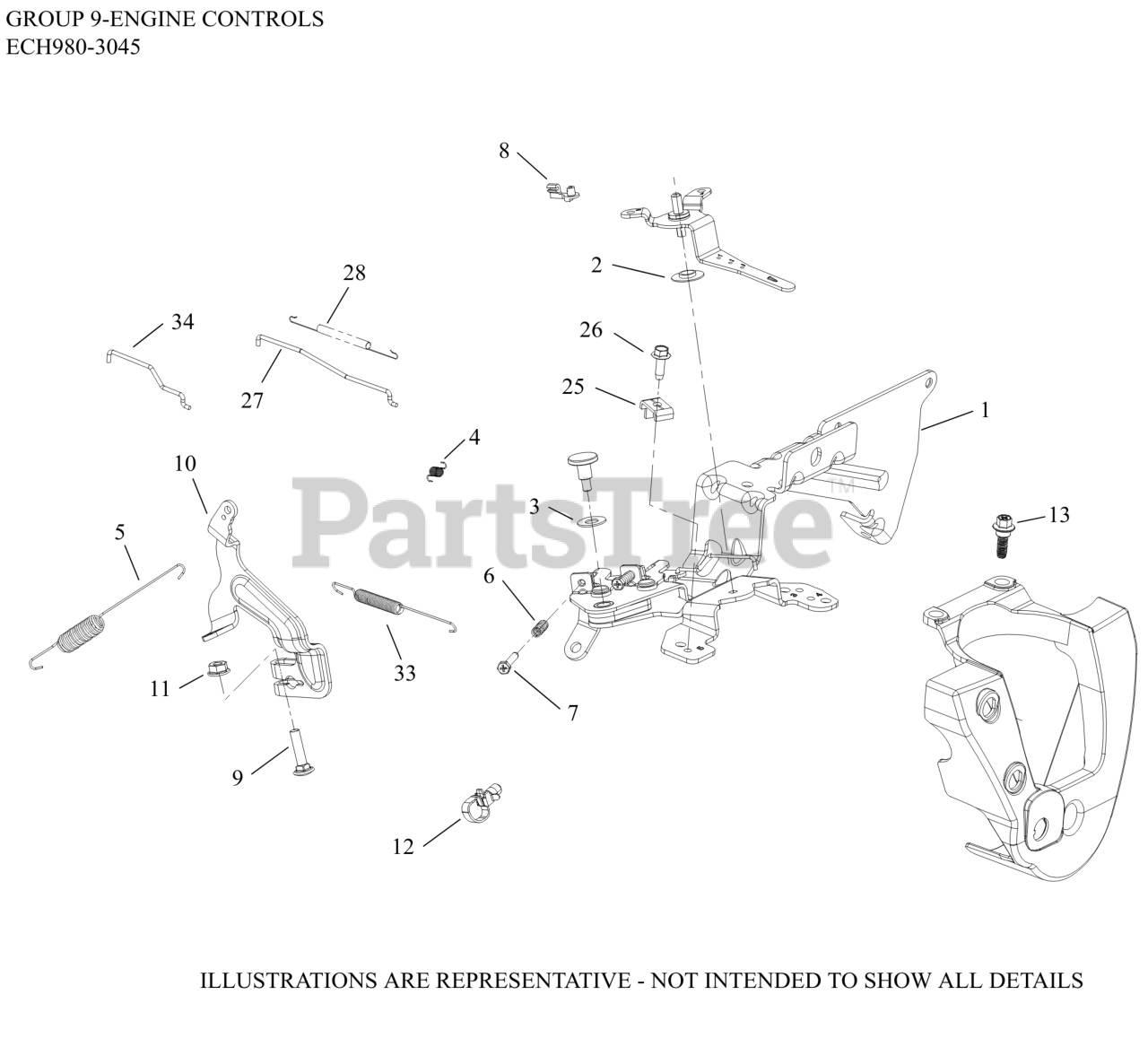

09 ENGINE CONTROLS Parts Diagram

  • Title

1

Kohler 62 536 20-S

CONTROL ASSEMBLY, SPEED (H/S EFI)

$323.99

$

Usually ships in 2-5 days

0

2

Kohler 20 468 07-S

WASHER, NYLON SHOULDER

$2.99

$

Usually ships in 2-5 days

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 62 089 20-S

SPRING, RETURN

$3.99

$

In Stock, only 1 left!

0

5

Kohler 62 089 48-S

SPRING, GOVERNOR

$20.99

$

Usually ships in 2-5 days

0

6

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

7

Kohler 20 086 10-S

SCREW, PHL THD FRM M4X0.7X25

$2.49

$

In Stock, only 3 left!

0

8

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

9

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

10

Kohler 62 090 29-S

KIT, GOVERNOR LEVER

$12.99

$

In Stock, only 1 left!

0

11

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

12

Kohler 25 454 09-S

TIE, WIRE

$2.49

$

In Stock, only 2 left!

0

25

Kohler 25 237 53-S

CLAMP, CABLE CABLE

$3.49

$

In Stock, Qty 5

0

26

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 62 079 27-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 12

0

28

Kohler 62 089 62-S

SPRING, LINKAGE

$5.49

$

In Stock, only 2 left!

0

33

Kohler 62 089 22-S

SPRING, GOV (HORZ IDLE 1626-1800)

$24.99

$

In Stock, only 1 left!

0

34

Kohler 62 079 30-S

LINKAGE, CONTROL LEVER

$7.49

$

In Stock, only 1 left!

0
