ECH980-3045 - Kohler Command PRO EFI Engine, Made for HCP, 38hp 08 FUEL SYSTEM Parts Diagram

Command PRO EFI Engine, Made for HCP, 38hp

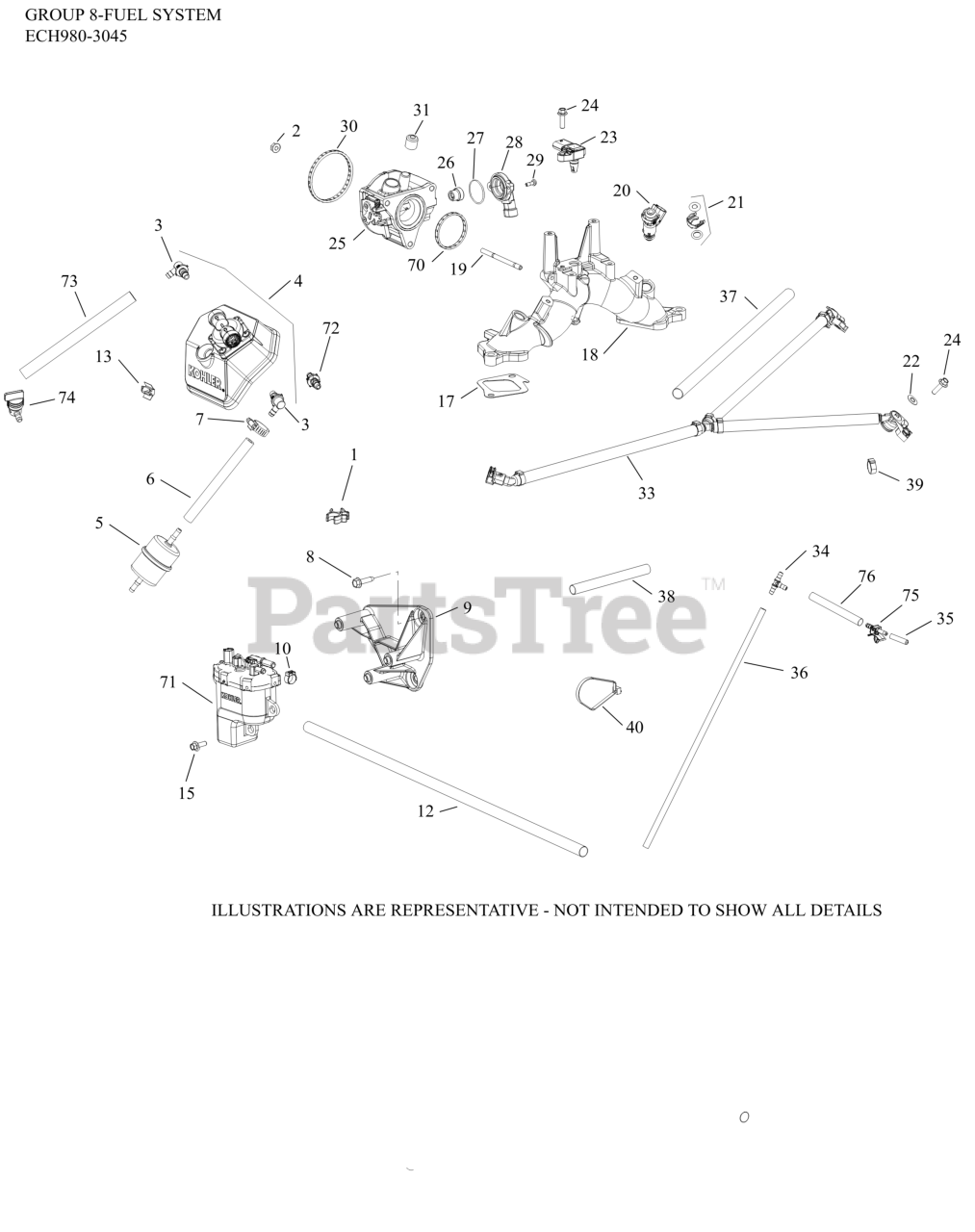

08 FUEL SYSTEM Parts Diagram

  • Title

1

Kohler 25 018 08-S

RETAINER, HOSE

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

3

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 2 left!

0

4

Kohler 62 559 01-S

KIT, FUEL PUMP

$194.99

$

In Stock, only 2 left!

0

5

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 086 395-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 62 063 39-S

BAFFLE, FUEL PUMP MODULE (HORZ)

$19.99

$

Usually ships in 2-5 days

0

10

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 25 431 32-S

SLEEVE, ANTI ABRASION

$13.99

$

Usually ships in 2-5 days

0

13

Kohler 25 154 22-S

CLIP, O2 SENSOR

$2.99

$

Usually ships in 2-5 days

0

15

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

17

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

18

Kohler 62 164 35-S

MANIFOLD, INTAKE HORIZONTAL (EFI)

$110.99

$

Usually ships in 2-5 days

0

19

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

20

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

21

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

22

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

24

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

25

Kohler 25 583 14-S

BODY, THROTTLE ASM (34)

$226.99

$

Usually ships in 2-5 days

0

26

Kohler 25 152 08-S

MAGNET ASSEMBLY, TPS

$16.99

$

In Stock, only 2 left!

0

27

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 25 418 12-S

SENSOR, THROTTLE POSITION

$86.99

$

In Stock, only 1 left!

0

29

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 153 31-S

O-RING (HDAC SEAL-EFI)

$2.99

$

Usually ships in 2-5 days

0

31

Kohler 25 173 38-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 62 399 13-S

RAIL ASSEMBLY, FUEL (HORZ)

$168.99

$

Usually ships in 2-5 days

0

34

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

35

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 25 326 28-S

HOSE, EVAPORATIVE

$4.49

$

In Stock, only 3 left!

0

37

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0

38

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

39

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

40

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 25 050 21-S

FILTER,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

70

Kohler 25 153 12-S

O-RING, THROTTLE BODY

$13.99

$

Usually ships in 2-5 days

0

71

Kohler 25 393 19-S

KIT, FUEL PUMP MODULE

$359.99

$

In Stock, only 4 left!

0

72

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

73

Kohler 25 431 14-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

74

Kohler 25 462 14-S

VALVE, FUEL SHUT-OFF

$17.99

$

Usually ships in 2-5 days

0

75

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

76

Kohler 25 431 61-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0
