ECH980-3045 - Kohler Command PRO EFI Engine, Made for HCP, 38hp 03 LUBRICATION Parts Diagram

Command PRO EFI Engine, Made for HCP, 38hp

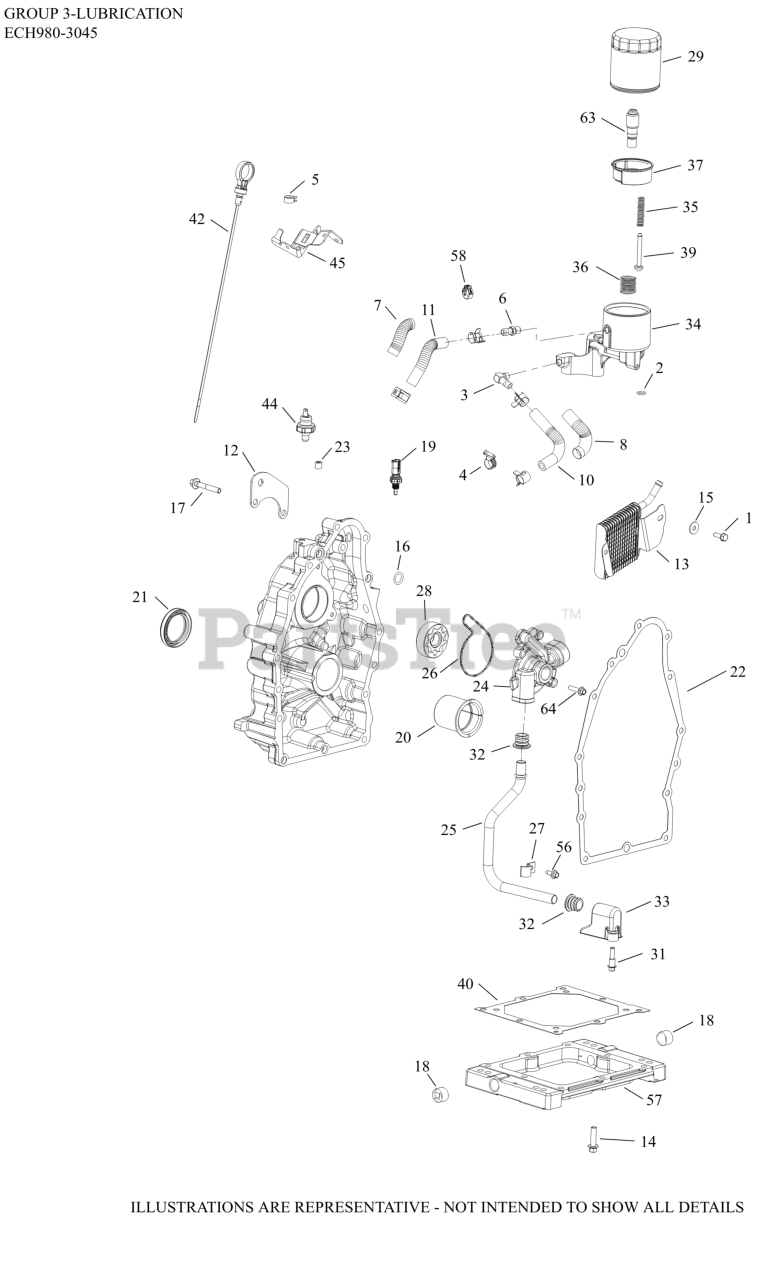

03 LUBRICATION Parts Diagram

  • Title

1

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

2

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

3

Kohler 25 155 38-S

CONNECTOR, HOSE

$16.99

$

In Stock, only 3 left!

0

4

Kohler 25 237 02-S

CLAMP

$3.99

$

In Stock, only 2 left!

0

5

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

6

Kohler 25 294 54-S

FITTING, BARBED HOSE

$4.99

$

Usually ships in 2-5 days

0

7

Kohler 25 431 16-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

8

Kohler 25 431 18-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

9

Kohler 62 009 12-S

KIT, CLOSURE PLATE-(#6200922S)
(Superseded to 62 009 22-S)

$649.99

$

Usually ships in 2-5 days

0

10

Kohler 62 326 06-S

HOSE, OIL SUPPLY

$16.99

$

In Stock, only 1 left!

0

11

Kohler 62 326 10-S

HOSE, OIL RETURN

$7.99

$

Usually ships in 2-5 days

0

12

Kohler 62 445 04-S

STRAP, LIFTING-USE 62 445 10-S
(Superseded to 62 445 10-S)

$10.99

$

Usually ships in 2-5 days

0

13

Kohler 62 594 05-S

COOLER, OIL ASSEMBLY

$184.99

$

Usually ships in 2-5 days

0

14

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

Usually ships in 2-5 days

0

15

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

16

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 1 left!

0

17

Kohler 25 086 618-S

SCREW, HEX FLANGE

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 25 139 74-S

PLUG, PIPE 1/2 NPTF SQ CTSK

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 25 418 02-S

SENSOR, TEMPERATURE

$36.99

$

In Stock, only 1 left!

0

20

Kohler 62 030 04-S

BEARING, CRANKSHAFT (PTO)

$58.99

$

Usually ships in 2-5 days

0

21

Kohler 25 032 18-S

SEAL, OIL PTO SIDE, BROWN

$

$

Not available

22

Kohler 62 041 21-S

GASKET, OIL PAN

$12.99

$

In Stock, only 3 left!

0

23

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

24

Kohler 62 081 42-S

HOUSING, OIL PUMP MACH-USE 62 081 38-S
(Superseded to 62 081 38-S)

$

$

Not available

25

Kohler 62 123 42-S

TUBE, OIL PICK-UP

$18.99

$

Usually ships in 2-5 days

0

26

Kohler 62 153 04-S

O-RING, OIL PUMP HOUSING

$7.49

$

In Stock, only 1 left!

0

27

Kohler 62 237 02-S

CLAMP

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 62 393 01-S

PUMP ASSEMBLY, OIL/GEROTOR

$28.99

$

Usually ships in 2-5 days

0

29

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

31

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

32

Kohler 62 032 19-S

SEAL, PICK-UP TUBE

$2.99

$

In Stock, only 2 left!

0

33

Kohler 62 081 06-S

HOUSING, OIL PICK-UP ASSEMBLY

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 62 081 34-S

KIT, OIL FILTER HOUSING

$141.99

$

In Stock, only 1 left!

0

35

Kohler 62 089 11-S

SPRING, OIL FILTER VALVE

$2.99

$

Usually ships in 2-5 days

0

36

Kohler 62 089 12-S

SPRING, OIL FILTER CUP

$2.99

$

In Stock, only 1 left!

0

37

Kohler 62 109 02-S

CUP, OIL FILTER ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

39

Kohler 62 462 02-S

VALVE, OIL FILTER

$7.99

$

In Stock, only 1 left!

0

40

Kohler 62 041 22-S

GASKET, OIL RESERVOIR

$6.99

$

Usually ships in 2-5 days

0

42

Kohler 62 038 02-S

DIPSTICK

$13.99

$

Usually ships in 2-5 days

0

44

Kohler 52 099 08-S

SWITCH, OIL PRESSURE

$62.99

$

In Stock, only 2 left!

0

45

Kohler 62 126 85-S

BRACKET, FUSE HOLDER

$5.49

$

Usually ships in 2-5 days

0

56

Kohler 25 086 404-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

57

Kohler 62 199 14-S

OIL RESERVOIR

$119.99

$

In Stock, only 1 left!

0

58

Kohler 25 237 54-S

CLAMP, HOSE OETIKER

$1.99

$

Usually ships in 2-5 days

0

63

Kohler 62 136 06-S

NIPPLE, OIL FILTER ASSEMBLY

$15.99

$

Usually ships in 2-5 days

0

64

Kohler 25 086 294-S

SCREW, HEX FLANGE M6 X 1

$2.49

$

Usually ships in 2-5 days

0
