ECH749-3013 - Kohler Command PRO EFI Engine, Made for Canada Power Tech, 26.5hp, 19.8kW Cylinder Head/Breather Group 4-24-605 ECH630-749 Parts Diagram

Command PRO EFI Engine, Made for Canada Power Tech, 26.5hp, 19.8kW

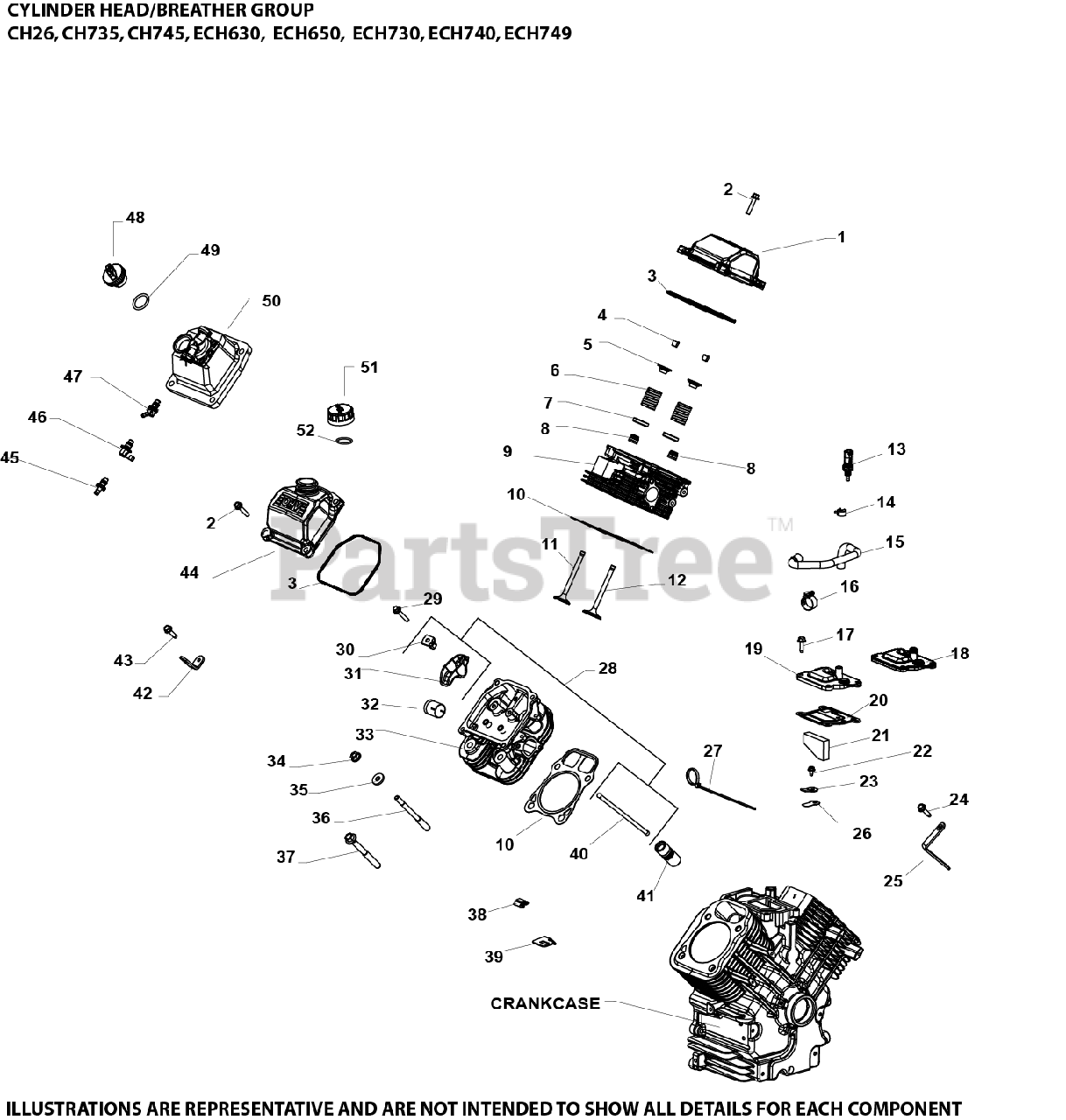

Cylinder Head/Breather Group 4-24-605 ECH630-749 Parts Diagram

  • Title

1

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

$35.99

$

In Stock, Qty 5

0

2

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

3

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

4

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

5

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

6

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 4 left!

0

7

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

8

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

9

Kohler 24 318 155-S

KIT, CYLINDER HEAD #1
(Superseded to 24 818 03-S)

$236.99

$

In Stock, only 1 left!

0

10

Kohler 24 841 04-S

KIT, CYLINDER HEAD GASKET

$45.99

$

In Stock, Qty 16

0

11

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 14

0

11

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

12

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 15

0

12

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

13

Kohler 25 418 02-S

SENSOR, TEMPERATURE

$36.99

$

In Stock, only 1 left!

0

15

Kohler 24 326 133-S

HOSE, BREATHER (EFI H/S, HDAC)

$16.99

$

Usually ships in 2-5 days

0

16

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

17

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

18

Kohler 24 096 132-S

KIT, BREATHER COVER USE 24 096 165-S
(Superseded to 24 096 165-S)

$35.99

$

Usually ships in 2-5 days

0

20

Kohler 24 041 67-S

GASKET, BREATHER

$13.99

$

In Stock, Qty 20+

0

21

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

Usually ships in 2-5 days

0

22

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

23

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

43

Kohler 25 086 395-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

25

Kohler 25 445 03-S

STRAP, LIFT

$

$

Not available

26

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, only 1 left!

0

28

Kohler 24 755 66-S

KIT, VALVE TRAIN

$45.99

$

In Stock, Qty 5

0

29

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

30

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

31

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 1 left!

0

32

Kohler 24 605 07-S

LINER, EXHAUST PORT

$17.99

$

In Stock, only 2 left!

0

33

Kohler 24 318 156-S

KIT, CYLINDER HEAD #2
(Superseded to 24 818 04-S)

$235.99

$

In Stock, only 1 left!

0

34

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

35

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

38

Kohler 25 154 22-S

CLIP, O2 SENSOR

$2.99

$

Usually ships in 2-5 days

0

39

Kohler 24 126 194-S

BRACKET, OXYGEN SENSOR

$1.49

$

In Stock, only 1 left!

0

40

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, only 1 left!

0

41

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC - (#2535111S)
(Superseded to 25 351 11-S)

$23.99

$

In Stock, Qty 5

0

42

Kohler 25 445 02-S

STRAP, LIFTING

$2.99

$

In Stock, only 1 left!

0

45

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

46

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 2 left!

0

48

Kohler 24 227 02-S

CAP ASSY, OIL FILL (YELLOW)

$7.99

$

In Stock, Qty 6

0

49

Kohler 24 153 32-S

O-RING

$2.49

$

In Stock, only 4 left!

0

50

Kohler 24 559 10-S

KIT, VALVE COVER-FUEL PUMP

$168.99

$

In Stock, Qty 12

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED

$96.99

$

In Stock, only 3 left!

0
