ECH740-3024 - Kohler Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW Lubrication Group 3-24-829 Parts Diagram

Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW

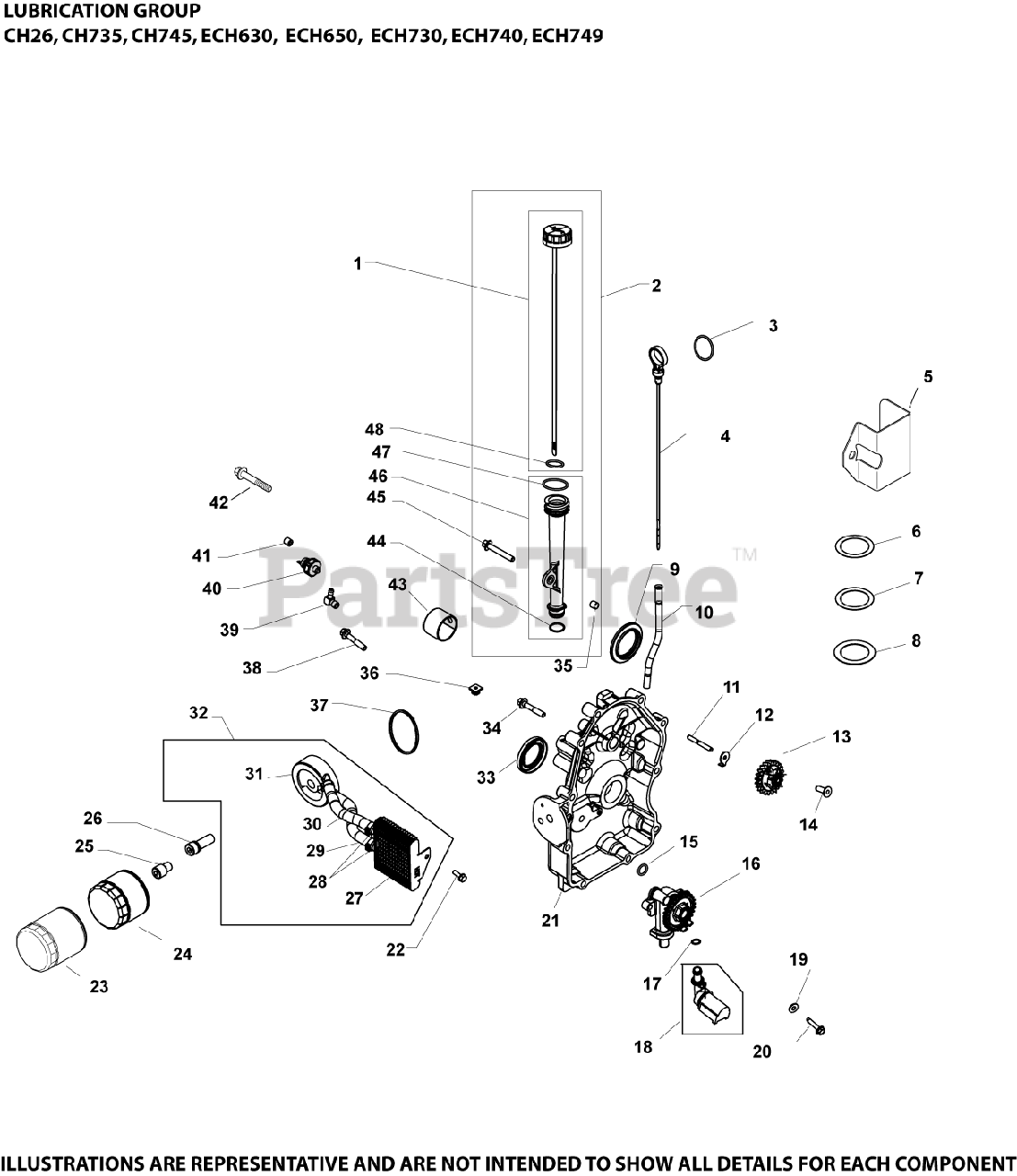

Lubrication Group 3-24-829 Parts Diagram

  • Title

4

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 5

0

10

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$35.99

$

In Stock, Qty 6

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

12

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

13

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 11

0

14

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

15

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

16

Kohler 24 393 53-S

KIT, OIL PUMP ASSEMBLY

$

$

Not available

17

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

18

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 1 left!

0

19

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

20

Kohler 25 086 401-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 2 left!

0

21

Kohler 24 009 163-S

PLATE, CLOSURE & BEARING - DISCONTINUED

$

$

Not available

22

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

23

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

26

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

27

Kohler 24 594 42-S

COOLER, OIL ASSEMBLY

$196.99

$

Usually ships in 2-5 days

0

28

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$4.49

$

In Stock, only 4 left!

0

29

Kohler 24 326 130-S

HOSE, OIL COOLER

$32.99

$

Usually ships in 2-5 days

0

30

Kohler 24 326 129-S

HOSE, OIL COOLER

$38.99

$

In Stock, only 4 left!

0

31

Kohler 24 029 81-S

ADAPTER, OIL FILTER (CH EFI)

$

$

Not available

32

Kohler 24 594 49-S

COOLER, OIL & DIVERTER ASSEMBLY USE 24 594 58-S
(Superseded to 24 594 58-S)

$

$

Not available

33

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

34

Kohler 25 086 17-S

SCREW - DISCONTINUED

$

$

Not available

35

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

36

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

37

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 8

0

38

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

40

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

2475509-S

Kohler 24 755 09-S

KIT, PUMP ADAPTER

Note: NOT ILLUSTRATED

$313.99

$

Usually ships in 2-5 days

0

X-23-1-S

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

X-8-21-S

Kohler X-8-21-S

SCREW,CAP HD 7/16-14x1 1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2423716-S

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 4 left!

0
