ECH740-3024 - Kohler Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW Ignition/Charging Group 5-24-1867 Parts Diagram

Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW

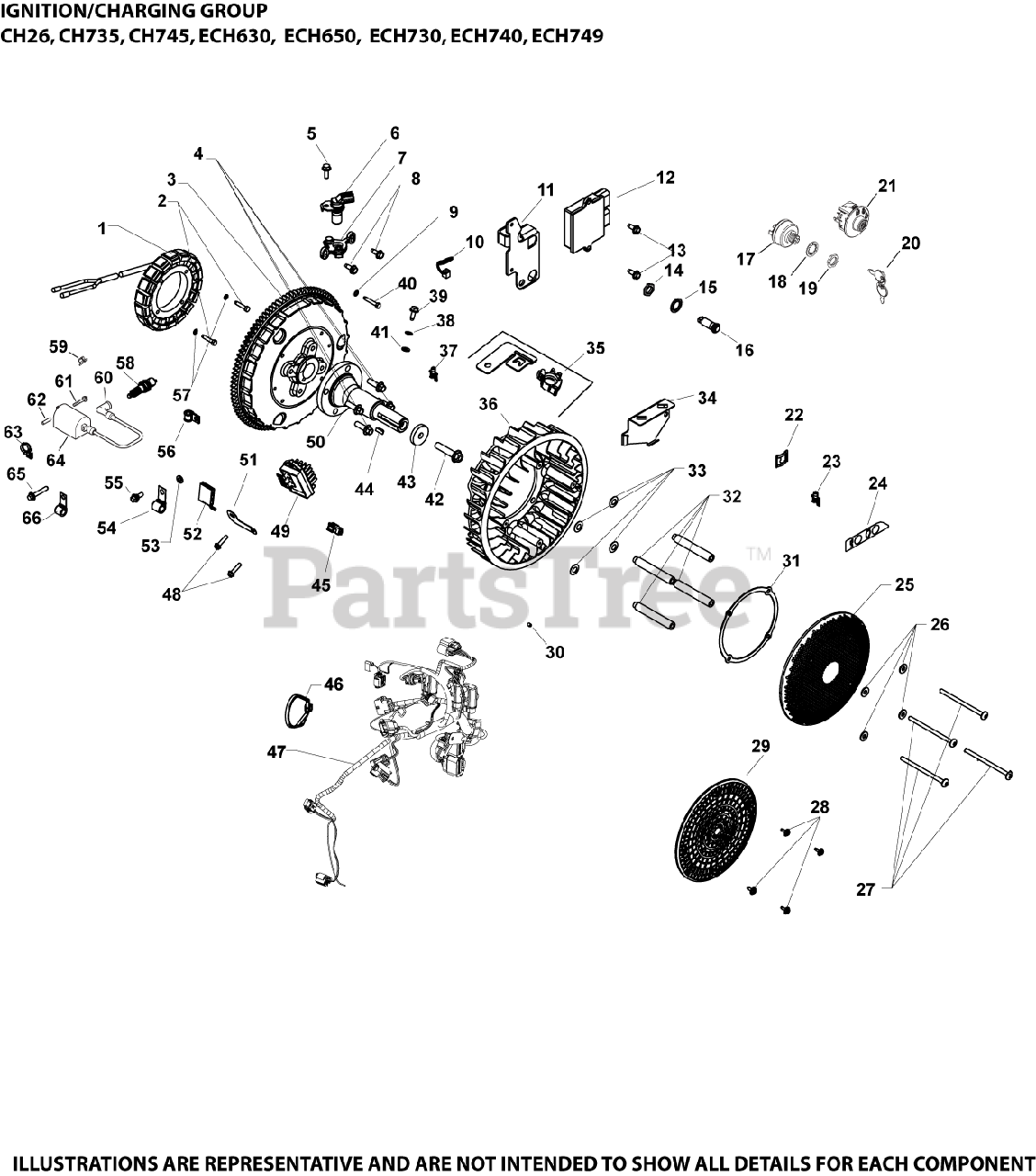

Ignition/Charging Group 5-24-1867 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

3

Kohler 24 025 62-S

FLYWHEEL ASSEMBLY

$283.99

$

In Stock, only 1 left!

0

5

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

6

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

7

Kohler 25 126 13-S

BRACKET, SENSOR MOUNT-(#2512616S)
(Superseded to 25 126 16-S)

$7.49

$

Usually ships in 2-5 days

0

8

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

9

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

10

Kohler 24 173 08-S

CAP, CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

11

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

12

Kohler 24 584 70-S

MODULE, ECU

$310.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

25

Kohler 54 755 15-S

KIT, GRASS SCREEN

$41.99

$

In Stock, only 1 left!

0

30

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

35

Kohler 25 154 21-S

KIT, MOUNTING CLIP
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

37

Kohler 25 454 09-S

TIE, WIRE

$2.49

$

In Stock, only 2 left!

0

38

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

40

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

41

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

43

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

44

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

47

Kohler 24 176 157-S

HARNESS, WIRING ASSEMBLY
(Superseded to 24 176 275-S)

$261.99

$

Usually ships in 2-5 days

0

48

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

49

Kohler 25 403 21-S

REGULATOR, RECTIFIER USE 25 403 32-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

51

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

Usually ships in 2-5 days

0

52

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

54

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

54

Kohler 25 237 36-S

CLAMP

$2.99

$

Usually ships in 2-5 days

0

55

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

57

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

58

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

63

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

64

Kohler 25 519 02-S

COIL, IGNITION - EFI

$167.99

$

In Stock, only 1 left!

0

65

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

66

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

25086117-S

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 4 left!

0
