ECH740-3024 - Kohler Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW Engine Controls Group 9-24-566 ECH630-749 Parts Diagram

Command PRO EFI Engine, Made for Vermeer, 27hp, 20.1kW

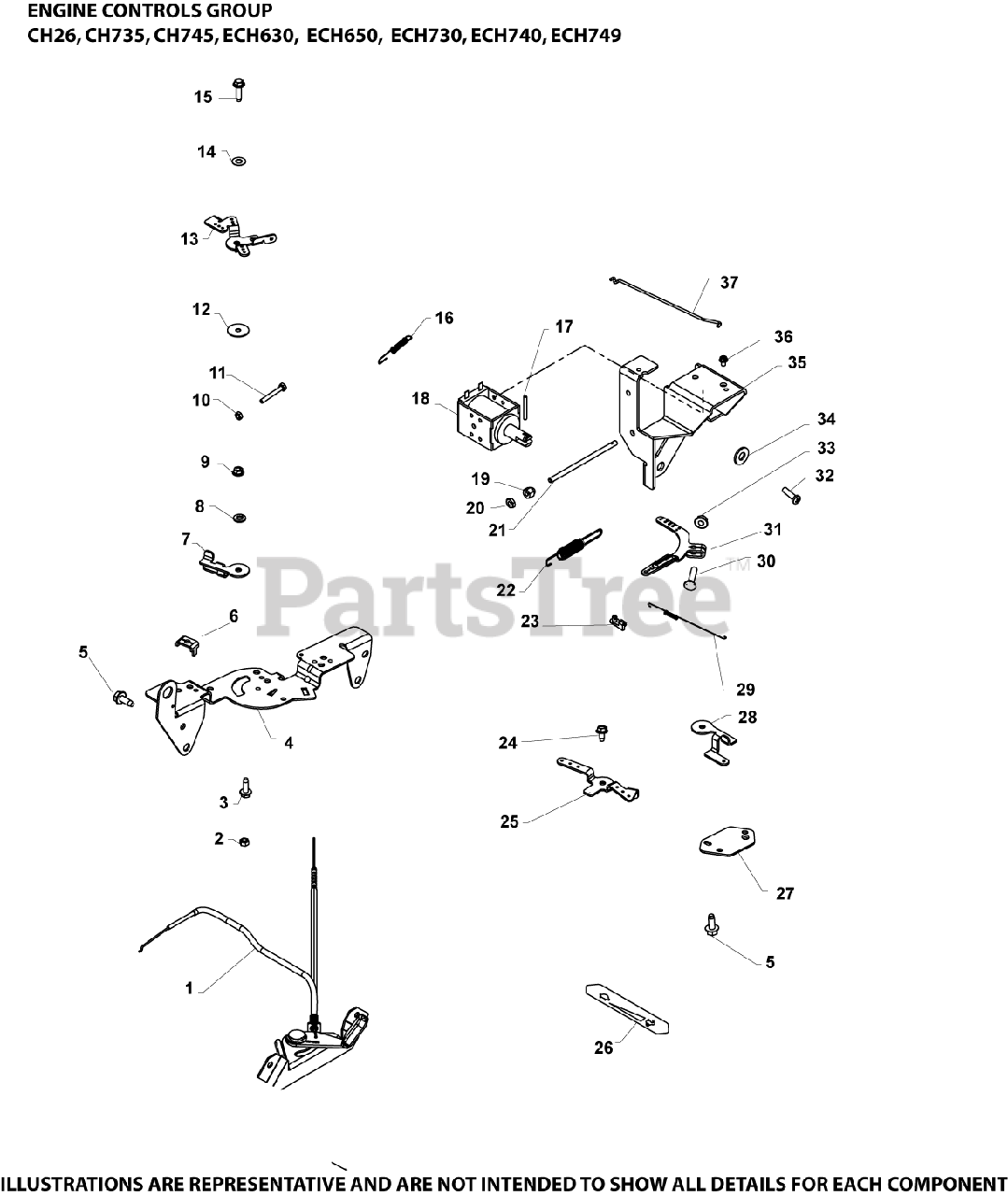

Engine Controls Group 9-24-566 ECH630-749 Parts Diagram

  • Title
2

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

3

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 24 126 176-S

BRACKET, CONTROL
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

5

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

6

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

8

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

9

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

10

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

11

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

12

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

14

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

15

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

16

Kohler 24 089 51-S

SPRING, THROTTLE LIMITER

$5.49

$

In Stock, only 1 left!

0

22

Kohler 24 089 48-S

SPRING, GOVERNOR (PURPLE)

$8.99

$

In Stock, Qty 9

0

23

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

28

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$5.49

$

In Stock, only 1 left!

0

29

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

30

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

31

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

33

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

37

Kohler 24 079 33-S

LINKAGE, THROTTLE

$2.99

$

In Stock, only 1 left!

0
