ECH740-3001 - Kohler Command PRO EFI Engine, Basic Version, 27hp, 20.1kW Crankcase Group 2-24-369 ECH630-749 Parts Diagram

Command PRO EFI Engine, Basic Version, 27hp, 20.1kW

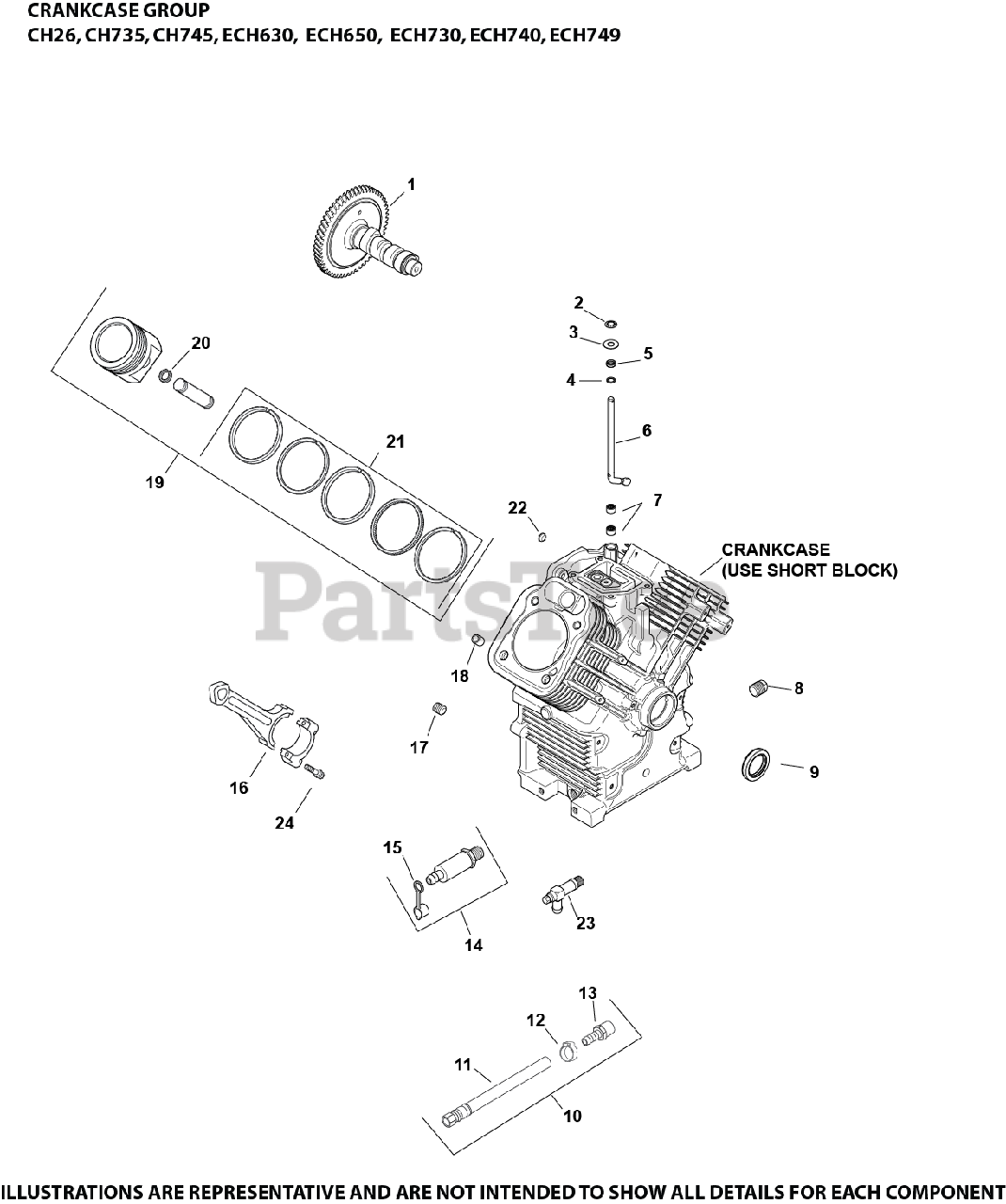

Crankcase Group 2-24-369 ECH630-749 Parts Diagram

  • Title

1

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

2

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

5

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

6

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

8

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

9

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

16

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

18

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

19

Kohler 25 874 14-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 25 108 01-S

$174.99

$

In Stock, Qty 8

0

19

Kohler 25 874 18-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 25 108 02-S

$206.99

$

Usually ships in 2-5 days

0

19

Kohler 25 874 19-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 25 108 03-S

$253.99

$

Usually ships in 2-5 days

0

19

Kohler 25 874 20-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 25 108 04-S

$250.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 30-S

PISTON W/RINGS (STYLE A)(STD) - RING SET 24 108 14-S
(Superseded to 25 874 14-S)

$174.99

$

In Stock, Qty 8

0

19

Kohler 24 874 31-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 15-S
(Superseded to 25 874 10-S)

$206.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 32-S

PISTON W/RINGS (STYLE A)(.25)-RING SET 24 108 16-S (#2587411S)
(Superseded to 25 874 11-S)

$253.99

$

In Stock, only 1 left!

0

19

Kohler 24 874 33-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 17-S - USE 25 874 04-S
(Superseded to 25 874 17-S)

$261.99

$

Usually ships in 2-5 days

0

20

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

21

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

In Stock, only 2 left!

0

21

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

21

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

21

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$103.99

$

Usually ships in 2-5 days

0

22

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

24

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0
