ECH730-3057 - Kohler Command PRO EFI Engine, Made for Hydralada, 23hp, 17.2kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Made for Hydralada, 23hp, 17.2kW

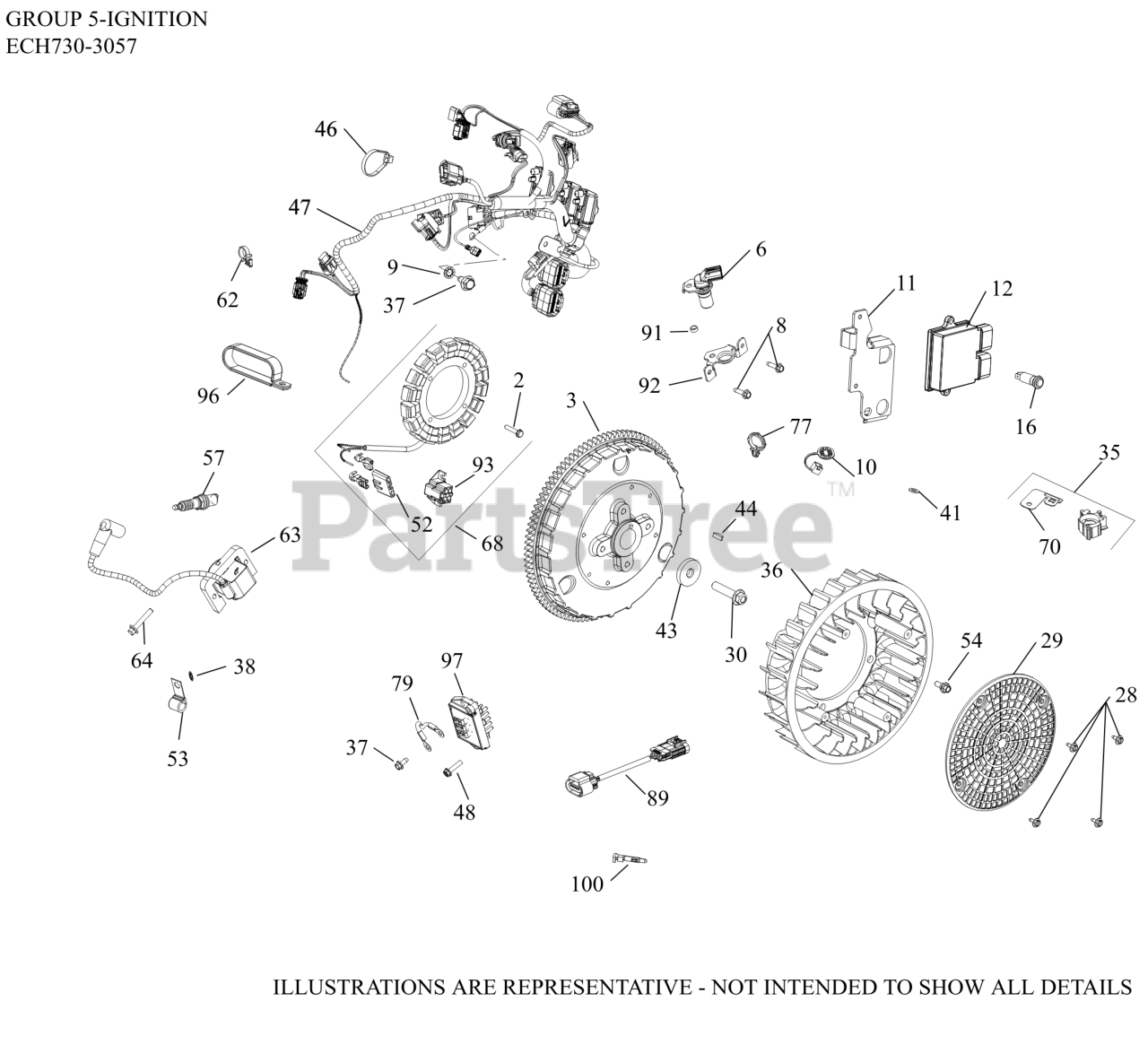

05 Ignition/Charging Parts Diagram

  • Title

2

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 24 025 100-S

FLYWHEEL, ASSEMBLY

$235.99

$

Usually ships in 2-5 days

0

6

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

Usually ships in 2-5 days

0

8

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, only 1 left!

0

9

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

10

Kohler 24 173 08-S

CAP, CONNECTOR

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

12

Kohler 24 584 194-S

MODULE, ECU
(Superseded to 24 584 210-S)

$295.99

$

In Stock, only 1 left!

0

16

Kohler 25 352 19-S

LAMP, INDICATOR (INCANDESCENT)

$25.99

$

Usually ships in 2-5 days

0

28

Kohler 25 086 126-S

SCREW, SEMS DOG POINT

$5.49

$

In Stock, only 3 left!

0

29

Kohler 24 162 35-S

SCREEN,GRASS LOW PRFLE W/O HOLE

$28.99

$

Usually ships in 2-5 days

0

30

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

35

Kohler 25 154 21-S

KIT, MOUNTING CLIP
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 157 11-S

FAN-USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

Usually ships in 2-5 days

0

37

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

38

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

41

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

43

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

44

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

46

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

47

Kohler 24 176 258-S

HARNESS, WIRING ASSEMBLY

$269.99

$

In Stock, only 1 left!

0

48

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

52

Kohler 25 155 41-S

CONNECTOR

$29.99

$

In Stock, only 2 left!

0

53

Kohler 25 237 36-S

CLAMP

$2.99

$

Usually ships in 2-5 days

0

54

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

57

Kohler 25 132 14-S

SPARK PLUG, RFI

$15.99

$

Usually ships in 2-5 days

0

62

Kohler 25 154 27-S

CLIP, SNAP-IN-USE 25 018 05-S

Note: Before S/N 4924100011

$

$

Not available

62

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

63

Kohler 25 519 04-S

COIL, IGNITION - EFI (RFI/EMC)

$203.99

$

In Stock, only 2 left!

0

64

Kohler M-640034-S

SCREW, FLG (BLACK) M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

68

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 2 left!

0

68

Kohler 54 755 03-S

KIT, 25 AMP CONVERSION-DISCONTINUED

$

$

Not available

70

Kohler 25 154 20-S

CLIP USE 25 154 21-S
(Superseded to 25 154 21-S)

$

$

Not available

77

Kohler 25 018 05-S

RETAINER, WIRE HARNESS
(Superseded to 25 154 27-S)

Note: After S/N 4924100001

$

$

Not available

79

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

89

Kohler 24 176 161-S

HARNESS ASSEMBLY, WIRING

$78.99

$

Usually ships in 2-5 days

0

91

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

92

Kohler 25 126 18-S

BRACKET, SENSOR

$5.49

$

In Stock, only 1 left!

0

93

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

96

Kohler 25 237 45-S

CLAMP, INSULATED DOUBLE

$3.49

$

Usually ships in 2-5 days

0

97

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$82.99

$

In Stock, Qty 9

0

100

Kohler 25 452 25-S

TERMINAL

$2.49

$

Usually ships in 2-5 days

0
