ECH630-3055 - Kohler Command PRO EFI Engine, Made for John Deere, 19hp, 14.2kW 09 Engine Controls Parts Diagram

Command PRO EFI Engine, Made for John Deere, 19hp, 14.2kW

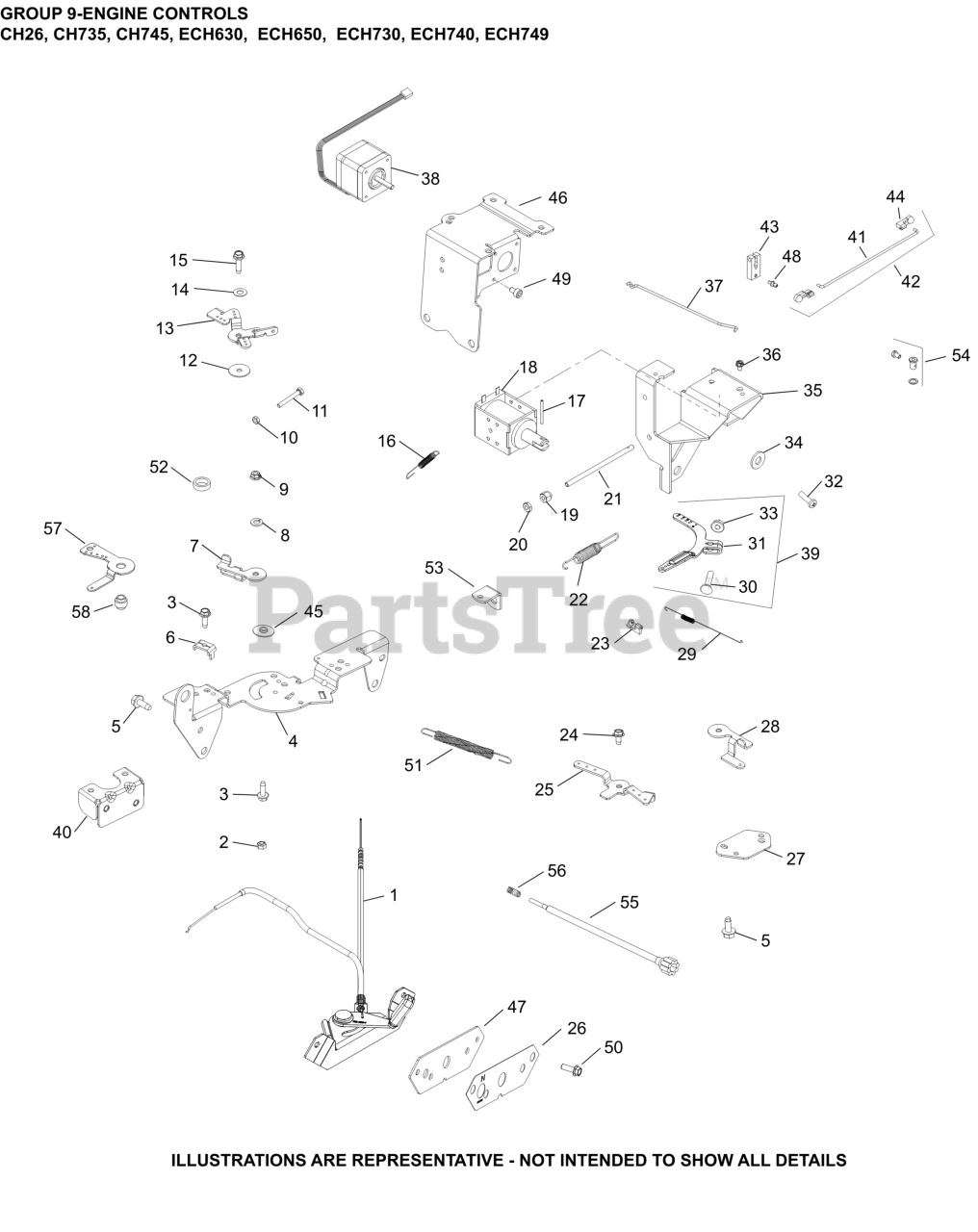

09 Engine Controls Parts Diagram

  • Title

2

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

3

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 24 126 263-S

BRACKET, CONTROL

$9.99

$

In Stock, only 1 left!

0

5

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

6

Kohler 25 237 53-S

CLAMP, CABLE CABLE

$3.49

$

In Stock, Qty 5

0

8

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

9

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

10

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, Qty 5

0

11

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 10

0

12

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$12.99

$

In Stock, only 1 left!

0

14

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

15

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

16

Kohler 24 089 51-S

SPRING, THROTTLE LIMITER

$4.99

$

Usually ships in 2-5 days

0

22

Kohler 24 089 44-S

SPRING, GOVERNOR (RED)

$8.99

$

In Stock, only 1 left!

0

23

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 16

0

28

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$4.99

$

In Stock, only 1 left!

0

29

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 5

0

30

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

31

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

33

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

37

Kohler 24 079 33-S

LINKAGE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

39

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0
