ECH630-3039 - Kohler Command PRO EFI Engine, Made for CPD, 19hp, 14.2kW Crankcase Group 2-24-479 ECH630-749 Parts Diagram

Command PRO EFI Engine, Made for CPD, 19hp, 14.2kW

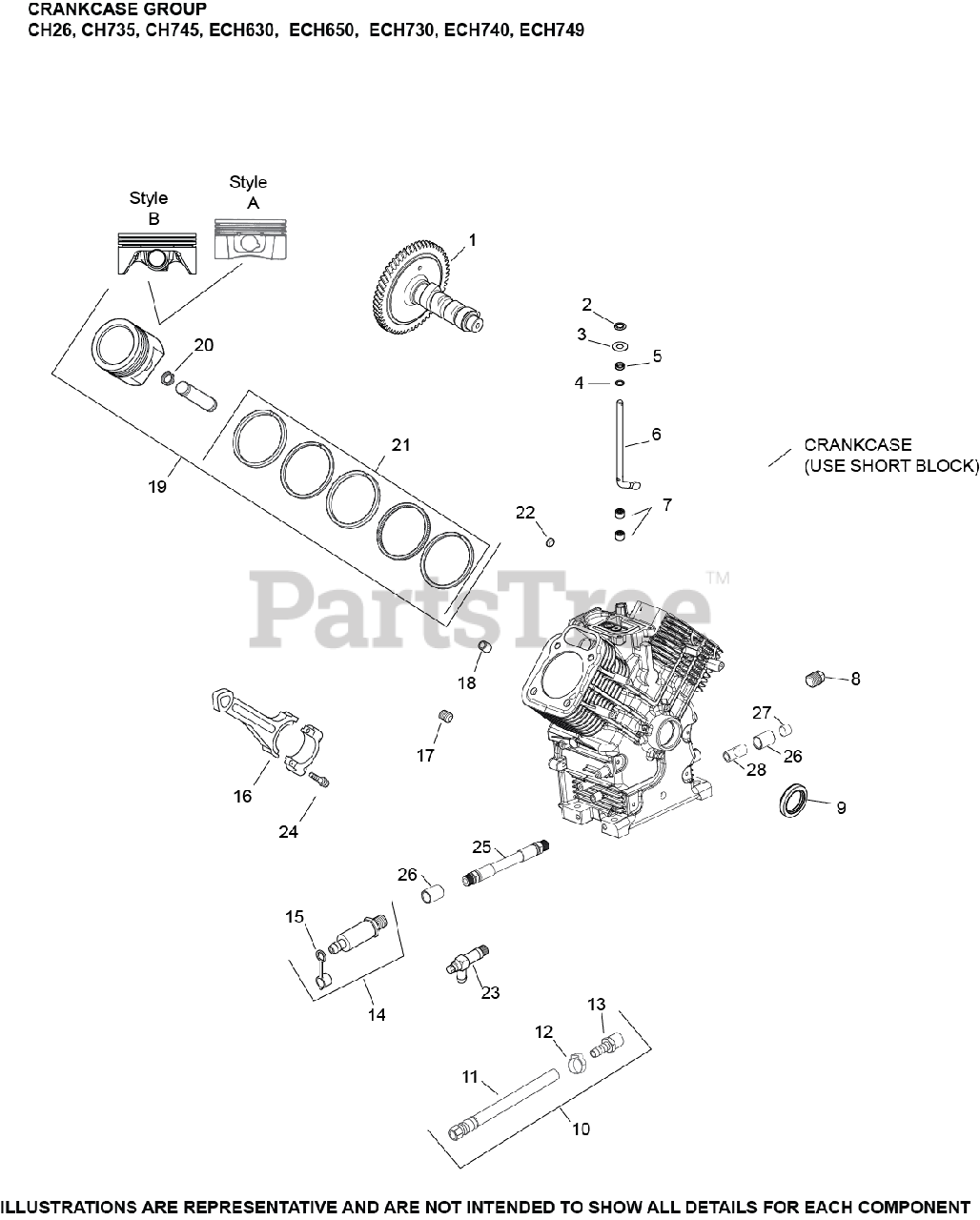

Crankcase Group 2-24-479 ECH630-749 Parts Diagram

  • Title

1

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

2

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

5

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

6

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$41.99

$

Usually ships in 2-5 days

0

7

Kohler 28 030 05-S

BEARING, NEEDLE

$12.99

$

Usually ships in 2-5 days

0

8

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

9

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

16

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

16

Kohler 24 067 35-S

KIT, CONNECTING ROD ASSEMBLY (.25 mm)
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

17

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

18

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

19

Kohler 24 874 58-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 24 108 26-S

$141.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 59-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 24 108 27-S

$141.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 60-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 24 108 28-S

$141.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 61-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 24 108 29-S

$141.99

$

Usually ships in 2-5 days

0

20

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

21

Kohler 24 108 26-S

RING SET (STYLE B) (STD)1.2MM TOP RING THICKNESS

$150.99

$

Usually ships in 2-5 days

0

21

Kohler 24 108 27-S

RING SET (STYLE B) (.08)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

21

Kohler 24 108 28-S

RING SET (STYLE B) (.25)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

21

Kohler 24 108 29-S

RING SET (STYLE B) (.50)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

5213909-S

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0
