ECH440-3011 - Kohler Command PRO EFI Engine, Made for Walker, 14hp, 10.5kW 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for Walker, 14hp, 10.5kW

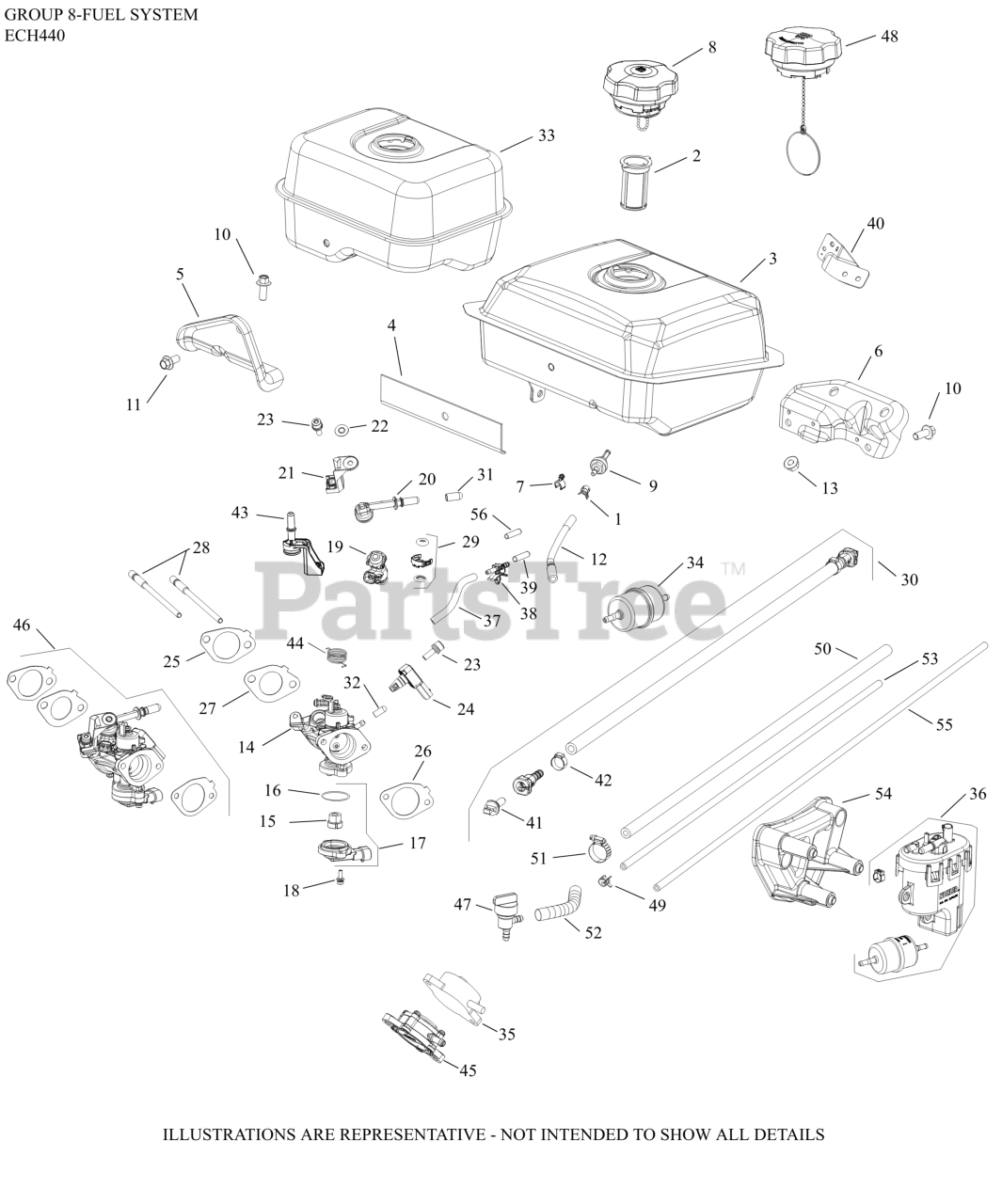

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 237 01-S

CLAMP, FUEL LINE

$2.49

$

In Stock, only 4 left!

0

2

Kohler 17 050 20-S

FILTER, FUEL TANK

$5.49

$

In Stock, Qty 10

0

3

Kohler 17 065 87-S

TANK, FUEL

$128.99

$

In Stock, only 1 left!

0

5

Kohler 17 126 159-S

BRACKET, FUEL SUPPORT

$10.99

$

Usually ships in 2-5 days

0

6

Kohler 17 126 245-S

BRACKET, FUEL SUPPORT ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

8

Kohler 17 173 19-S

CAP, EVAPORATIVE EMISSIONS-(#1717343S)
(Superseded to 17 173 49-S)

Note: Before S/N 4819112008

$46.99

$

In Stock, only 1 left!

0

8

Kohler 17 173 43-S

FUEL CAP, ASSEMBLY-USE 17 173 49-S
(Superseded to 17 173 49-S)

$46.99

$

In Stock, only 1 left!

0

9

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$7.49

$

In Stock, only 3 left!

0

10

Kohler 25 086 224-S

SCREW, M8 X 20

$2.49

$

Usually ships in 2-5 days

0

11

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

Usually ships in 2-5 days

0

12

Kohler 25 111 134-S

HOSE, FUEL LOW-PERMEATION

$3.99

$

Usually ships in 2-5 days

0

13

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 17 583 07-S

KIT, THROTTLE BODY AND GASKETS

$769.99

$

Usually ships in 2-5 days

0

16

Kohler 25 153 18-S

O-RING

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 17 418 01-S

KIT, TPS

$82.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 664-S

SCREW, HEXALOBULAR M4 X 0.7 X SEMS

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

20

Kohler 25 173 51-S

CAP, FUEL INJECTOR

$7.99

$

Usually ships in 2-5 days

0

21

Kohler 25 126 29-S

BRACKET ASSEMBLY, FUEL CAP

$6.49

$

Usually ships in 2-5 days

0

22

Kohler 17 154 15-S

CLIP, RETAINER

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 25 086 666-S

SCREW, HEXALOBULAR M6 X 1 SEMS

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

25

Kohler 17 041 35-S

KIT, GASKET INTAKE

$16.99

$

In Stock, only 2 left!

0

26

Kohler 17 041 74-S

GASKET, THROTTLE BODY

$3.49

$

Usually ships in 2-5 days

0

27

Kohler 17 041 66-S

GASKET, INSULATOR TO T-BODY

$3.99

$

Usually ships in 2-5 days

0

28

Kohler 17 072 43-S

STUD, INTAKE

$6.99

$

Usually ships in 2-5 days

0

29

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

31

Kohler 25 173 55-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 25 173 56-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

34

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

35

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

36

Kohler 25 755 73-S

KIT,FP MODULE (ECH/ECV 440,630,940)

$353.99

$

In Stock, Qty 8

0

47

Kohler 17 099 25-S

FUEL SHUTOFF, SWITCH

$9.99

$

Usually ships in 2-5 days

0

48

Kohler 17 173 49-S

CAP, FUEL ASSEMBLY

Note: After S/N 4819112018

$46.99

$

In Stock, only 1 left!

0

49

Kohler 17 237 14-S

CLAMP, HOSE

$2.49

$

Usually ships in 2-5 days

0

50

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

51

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

52

Kohler 25 431 16-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

55

Kohler 24 326 153-S

HOSE, EVAPORATIVE

$7.49

$

Usually ships in 2-5 days

0

56

Kohler 25 173 34-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0
