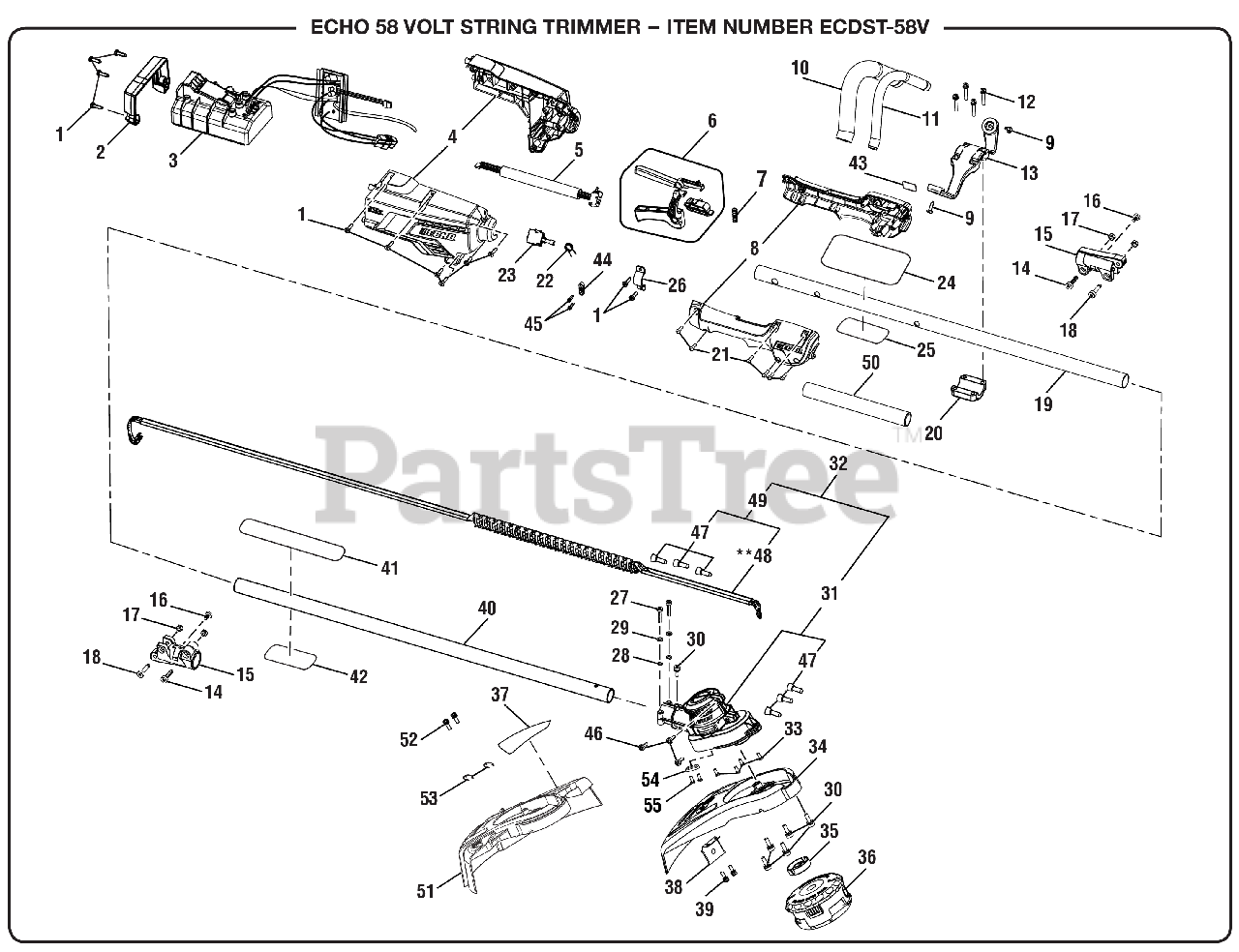

ECDST-58V (107397021) - Echo String Trimmer, 58V Battery, Revision 04 (2019-02) General Assembly Parts Diagram

String Trimmer, 58V Battery, Revision 04

General Assembly Parts Diagram

  • Title

1

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, Qty 8

0

2

Echo 534165001

Battery Carriage Fastener

$1.49

$

Usually ships in 2-4 days

0

3

Echo 206698002

Battery Carriage & Motor Controller Assembly

$101.99

$

Usually ships in 2-4 days

0

4

Echo 206706001

Handle Housing Assembly

$14.99

$

Usually ships in 2-4 days

0

5

Echo 206699001

Switch and Wire Assembly

$6.49

$

Usually ships in 2-4 days

0

6

Echo 351052001

Switch Trigger, Lock-Out Button and ON/OFF Switch Assembly

$1.49

$

Usually ships in 2-4 days

0

7

Echo 679973001

Compression Spring (Trigger)

$1.49

$

In Stock, only 3 left!

0

8

Echo 307839001

Rear Handle Housing Assembly

$5.49

$

In Stock, only 1 left!

0

9

Echo 662185001

Screw (10-14 x 17 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 563598001

Foam Grip

$5.99

$

In Stock, only 1 left!

0

11

Echo 528391002

Front Handle

$3.49

$

Usually ships in 2-4 days

0

12

Echo 662184001

Screw w/Washers (M5 x 26 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 528392002

Handle Bracket

$2.99

$

Usually ships in 2-4 days

0

14

Echo 662151001

Screw (M6 x 25 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 13

0

15

Echo 643262001

COUPLER

$6.49

$

In Stock, only 2 left!

0

16

Echo 662153001

Screw (M5 x 10 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

17

Echo 678610006

Lock Nut (M6)

$1.49

$

In Stock, Qty 15

0

18

Echo T662716001

Screw (M6 x 26 mm, Recessed Hex Soc. Hd.)

$1.49

$

In Stock, Qty 12

0

19

Echo 205032002

Upper Boom Assembly (Incl. Key Nos. 24-25)

$15.99

$

Usually ships in 2-4 days

0

20

Echo 528393002

Clamp (Auxiliary Handle)

$1.49

$

Usually ships in 2-4 days

0

21

Echo 660024061

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 694572001

Torsion Spring

$1.49

$

In Stock, only 1 left!

0

23

Echo 760952002

Variable Signal Switch

$7.99

$

In Stock, only 2 left!

0

24

Echo 940657315

Icon Warning Label

$1.49

$

Usually ships in 2-4 days

0

25

Echo 941588257

Data Label

$1.49

$

Usually ships in 2-4 days

0

26

Echo 639806001

CLAMP

$1.49

$

Usually ships in 2-4 days

0

27

Echo 662174001

Screw (M5 x 26 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

28

Echo 636270001

Washer (Special)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 636603001

Washer (ID5.2 x OD10 x 0.8t)

$1.49

$

Usually ships in 2-4 days

0

30

Echo 662158001

Screw w/Washers (M5 x 12.5 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

31

Echo 205055001

Motor, Motor Housing and Gear Box Assembly

$140.99

$

Usually ships in 2-4 days

0

32

Echo 205056001

Motor, Motor Housing and Gear Box Assembly

$159.99

$

Usually ships in 2-4 days

0

33

Echo 660925002

Screw (M4 x 9 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 535232001

Grass Deflector

$5.99

$

Usually ships in 2-4 days

0

35

Echo 643254001

WASHER

$2.49

$

In Stock, Qty 13

0

36

Echo 307342001

Stringhead Assembly
(Superseded to 99944200907)

$41.99

$

In Stock, Qty 13

0

37

Echo 940851390

Warning Label

$1.49

$

Usually ships in 2-4 days

0

38

Echo 637849001

Line Cutting Blade

$

$

Not available

39

Echo 660208052

Screw (M4 x 16 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

40

Echo 205033002

Lower Boom Assembly (Incl. Key Nos. 41-42)

$14.99

$

Usually ships in 2-4 days

0

41

Echo 940851049

Echo Logo Label (Upper Boom)

$1.49

$

Usually ships in 2-4 days

0

42

Echo 940851389

Icon Warning Label (Lower Boom)

$1.49

$

Usually ships in 2-4 days

0

43

Echo 940851047

Throttle Label

$1.49

$

Usually ships in 2-4 days

0

44

Echo 513211001

Cord Clamp

$6.49

$

Usually ships in 2-4 days

0

45

Echo 661817001

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

46

Echo 660608003

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

47

Echo 790009004

Wire Connector

Note: Denotes Item Is Part Of A Subassembly

$1.49

$

Usually ships in 2-4 days

0

48

Echo 291823001

Main Electric Wire

Note: Denotes Item Is Part Of A Subassembly

$18.99

$

Usually ships in 2-4 days

0

49

Echo 205054001

Main Electric Wire

$19.99

$

Usually ships in 2-4 days

0

50

Echo 564772001

Foam

$1.99

$

Usually ships in 2-4 days

0

51

Echo 120817001

Small Guard (Inc. Key No. 54)

$3.99

$

Usually ships in 2-4 days

0

52

Echo 662531001

Screw w/Washers (M5 x 13.5 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

53

Echo 678879001

E-Ring

$1.49

$

Usually ships in 2-4 days

0

54

Echo 513211001

Cord Clamp

$6.49

$

Usually ships in 2-4 days

0

55

Echo 661559001

Cap Screw (M4 x 11 mm, T20 Torx Hd.)

$

$

Currently unavailable

Echo 961193006

Operator's Manual

$

$

Not available

Echo 130345020DG9

EU, ECHO Battery Pack (ECBP-58V20, Not Included)

$

$

Currently unavailable

Echo 140330009

Charger 220~240V-AC 50V-DC 5A (ECHO ECBC-58VEU, Not Included)

$

$

Currently unavailable

Echo 140330010

Charger 220~240V-AC 50V-DC 5A (ECHO ECBC-58VUK, Not Included)

$

$

Currently unavailable

Echo 639850001

Hex Key Wrench (M5 x 127.5 mm x 27.5 mm)

$2.49

$

Usually ships in 2-4 days
