EC6400 (9261-0) - Generac 6,400 Watt Portable Generator Control Panel No. 80839 Parts Diagram

6,400 Watt Portable Generator

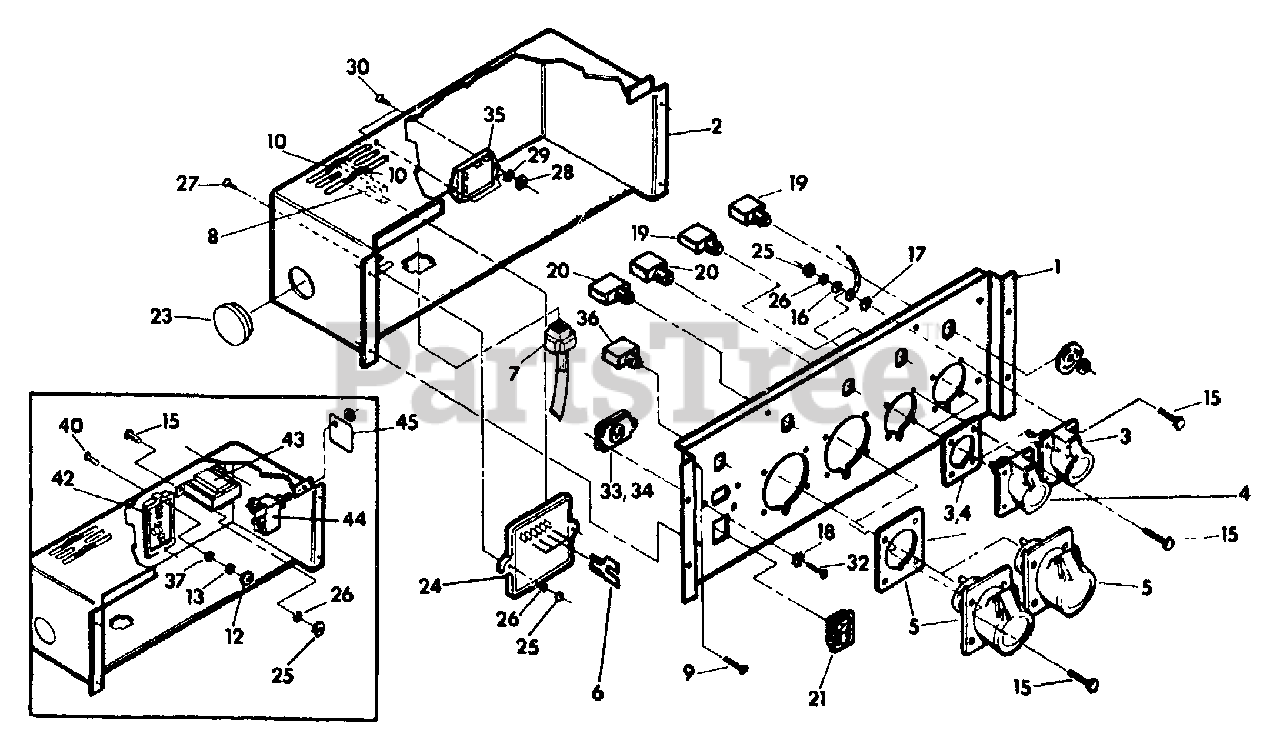

Control Panel No. 80839 Parts Diagram

  • Title

1

Briggs & Stratton 78377

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 77315

Control Panel Cover

$

$

Currently unavailable

3

Briggs & Stratton 79647

230 volts, 16 amp Outlet (blue)

$

$

Currently unavailable

4

Briggs & Stratton 79646

115 volts, 16 amp Outlet (yellow)

$

$

Currently unavailable

5

Briggs & Stratton 80242

115 volts, 32 amp Outlet (yellow)

$

$

Currently unavailable

6

Briggs & Stratton 74094

"Y" Connector
(Superseded to 74094GS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

9

Briggs & Stratton 63036

No. 8-18 x 1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 29333A

Tie-Wrap
(Superseded to 29333AGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

15

Briggs & Stratton 36934

No. 10-32 x 5/8" Pan Head Machine Screw

$

$

Currently unavailable

16

Briggs & Stratton 23897

No. 10 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23762

No. 10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23364

No. 6 Internal Shakeproof Washer
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

15 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit Breaker

$

$

Not available

21

Briggs & Stratton 66817

Engine-Control Switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 58221

1-3/4" dia. Plug

$

$

Not available

24

Briggs & Stratton 74074

A-C Voltage Regulator

$

$

Currently unavailable

25

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Pan Head Machine Screw

$

$

Currently unavailable

28

Briggs & Stratton 22188

No. 6-32 Hex Nut

$

$

Currently unavailable

29

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

No. 6-32 x 1/2" Pan Head Machine Screw
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 43181

M3-0.5 x 10mm Pan Head Machine Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 66821

Battery Charge Outlet
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66822

Outlet Retainer
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

Thermal Relay

$

$

Not available

36

Briggs & Stratton 75207B

10 amp Circuit Breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 80077

M4-0.7 x 20mm Pan Head Machine Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 61274

Oil Switch Vinyl Boot

$

$

Currently unavailable

42

Briggs & Stratton 67632C

Idle Control PCB Assembly

$

$

Not available

43

Briggs & Stratton 77278

I/C Transformer

$

$

Currently unavailable

44

Briggs & Stratton 55869

Toggle Switch

$

$

Currently unavailable

45

Briggs & Stratton 76255

I/C Switch

$

$

Currently unavailable
