EC 7600 - Shindaiwa 14" Cut-Off Saw (Original Version) Crankcase, Cylinder, Muffler Parts Diagram

14" Cut-Off Saw

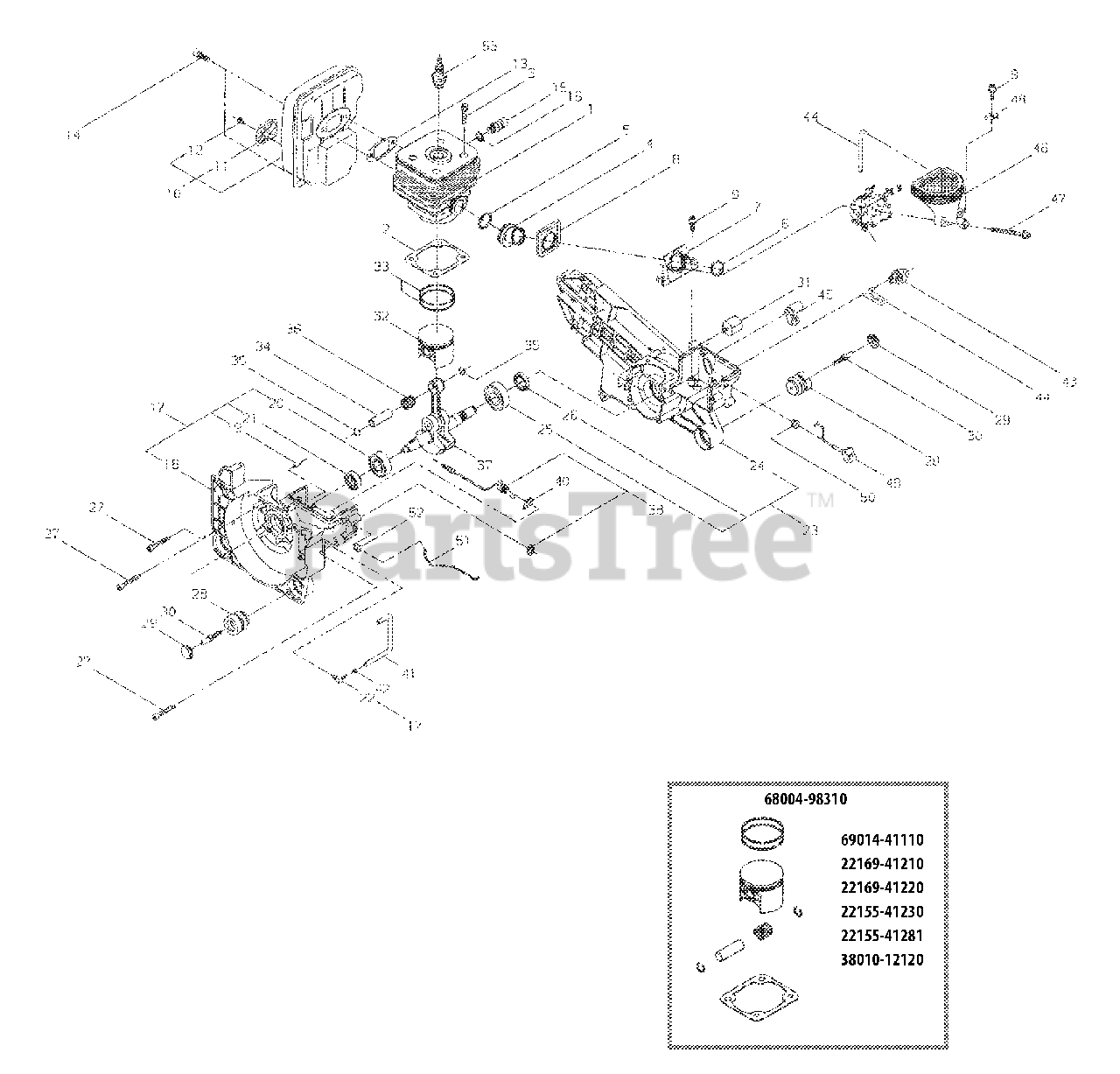

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 38010-12110

CYLINDER
(Superseded to 38010-12112)

$171.99

$

Usually ships in 2-4 days

0

2

Echo 38010-12120

GASKET
(Superseded to V100000580)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 22169-12190

BOLT
(Superseded to V204000690)

$0.99

$

In Stock, Qty 8

0

4

Echo 38010-12210

BOOT
(Superseded to A202000190)

$18.99

$

Usually ships in 2-4 days

0

5

Echo 22182-12160

SPRING
(Superseded to V451000920)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 22150-12170

SLEEVE
(Superseded to V360000120)

$2.49

$

In Stock, only 4 left!

0

7

Echo 38010-12220

BRACKET

$4.49

$

Usually ships in 2-4 days

0

8

Echo 38010-12230

SEAL
(Superseded to A203000020)

$7.99

$

In Stock, only 1 left!

0

9

Echo 11060-05141

SCREW - 5X14
(Superseded to V203001020)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 38010-15010

MUFFLER ASSY
(Superseded to A030000640)

$55.99

$

Usually ships in 2-4 days

0

11

Echo 38010-15140

TAIL PLATE
(Superseded to A312000020)

$6.49

$

Usually ships in 2-4 days

0

12

Echo 11203-05080

SCREW - 5X8
(Superseded to 9157805008)

$0.99

$

In Stock, Qty 5

0

13

Echo 38010-15210

GASKET
(Superseded to V104001630)

$3.99

$

Usually ships in 2-4 days

0

14

Echo 11060-06200

SCREW - 6X20
(Superseded to V204000700)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 38010-16110

VALVE, DECOMPRESSION
(Superseded to A014000090)

$48.99

$

Usually ships in 2-4 days

0

16

Echo 22173-16160

GASKET
(Superseded to V109000150)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 68000-21010

CRANKCASE ASSY - LEFT
(Superseded to 68000-21012)

$93.99

$

Usually ships in 2-4 days

0

18

Echo 68000-21110

CRANKCASE ASSY - REAR
(Superseded to 68000-21010)

$93.99

$

Usually ships in 2-4 days

0

19

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

20

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 8

0

21

Echo 22155-21630

SEAL, OIL
(Superseded to V508000080)

$11.99

$

In Stock, only 1 left!

0

22

Echo 22150-21220

CONNECTOR, PIPE
(Superseded to V185000000)

$6.49

$

Usually ships in 2-4 days

0

23

Echo 38010-21020

CRANKCASE ASSY - RIGHT
(Superseded to 38010-21021)

$112.99

$

Usually ships in 2-4 days

0

24

Echo 38010-21210

CRANKCASE - RIGHT
(Superseded to 38010-21020)

$112.99

$

Usually ships in 2-4 days

0

25

Echo 02030-06203

BEARING, BALL - 6203C3
(Superseded to 90081036203)

$12.99

$

Usually ships in 2-4 days

0

26

Echo 22169-21630

SEAL, OIL
(Superseded to V510000030)

$12.99

$

Usually ships in 2-4 days

0

27

Echo 22169-21910

BOLT - 5X35
(Superseded to V203001450)

$1.99

$

Usually ships in 2-4 days

0

28

Echo 72330-33710

CUSHION
(Superseded to V401000430)

$7.99

$

In Stock, only 1 left!

0

29

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

30

Echo 22169-33770

BOLT
(Superseded to V203001650)

$3.99

$

Usually ships in 2-4 days

0

31

Echo 20050-87160

CUSHION
(Superseded to V401000450)

$7.49

$

Usually ships in 2-4 days

0

32

Echo 69014-41110

PISTON
(Superseded to 38010-41110)

$51.99

$

Usually ships in 2-4 days

0

33

Echo 22169-41210

RING, PISTON
(Superseded to A101000560)

$18.99

$

Usually ships in 2-4 days

0

34

Echo 22169-41220

PIN, PISTON
(Superseded to V610000010)

$6.49

$

Usually ships in 2-4 days

0

35

Echo 22155-41230

RING, RETAINING
(Superseded to V580000060)

$0.99

$

Usually ships in 2-4 days

0

36

Echo 22155-41281

BEARING, NEEDLE
(Superseded to V557000030)

$11.99

$

Usually ships in 2-4 days

0

37

Echo 38010-42010

CRANKSHAFT ASSY
(Superseded to P021037720)

$226.99

$

In Stock, only 1 left!

0

38

Echo 68000-71340

SWITCH ASSY
(Superseded to A440001680)

$10.99

$

Usually ships in 2-4 days

0

40

Echo 68000-71330

SWITCH PLATE

$2.49

$

Usually ships in 2-4 days

0

41

Echo 22155-82111

PIPE - IMPULSE
(Superseded to V470001640)

$8.99

$

Usually ships in 2-4 days

0

42

Echo 22150-82140

CLIP
(Superseded to V490000760)

$0.99

$

In Stock, Qty 5

0

43

Echo 38010-81330

BULB, PURGE
(Superseded to 12318139130)

$7.49

$

In Stock, Qty 20+

0

44

Echo 38010-81341

TUBE
(Superseded to V470001650)

$7.99

$

Usually ships in 2-4 days

0

45

Echo 38010-81440

GROMMET, CABURETOR
(Superseded to V131000170)

$1.99

$

Usually ships in 2-4 days

0

46

Echo 38010-82470

ELBOW
(Superseded to A204000190)

$24.99

$

Usually ships in 2-4 days

0

47

Echo 38010-82360

BOLT

$3.49

$

Usually ships in 2-4 days

0

48

Echo 38010-82420

PLATE

$4.49

$

Usually ships in 2-4 days

0

49

Echo 38010-83310

ROD, CHOKE
(Superseded to A240000180)

$5.99

$

In Stock, only 1 left!

0

50

Echo 22150-33410

GROMMET
(Superseded to V130000160)

$2.49

$

In Stock, only 1 left!

0

51

Echo 38010-83321

ROD, THROTTLE
(Superseded to C454000320)

$8.49

$

Usually ships in 2-4 days

0

52

Echo 38010-83330

GROMMET
(Superseded to V133000040)

$8.49

$

In Stock, only 1 left!

0

53

Echo 1300013507

SPARK PLUG -- BPMR-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

68004-98310

Echo 68004-98310

PISTON ASSY
(Superseded to 68004-98311)

$90.99

$

Usually ships in 2-4 days

0
