EC 7600 - Shindaiwa 14" Cut-Off Saw (EPA Version) Clutch, Cutter Assembly Parts Diagram

14" Cut-Off Saw (EPA Version)

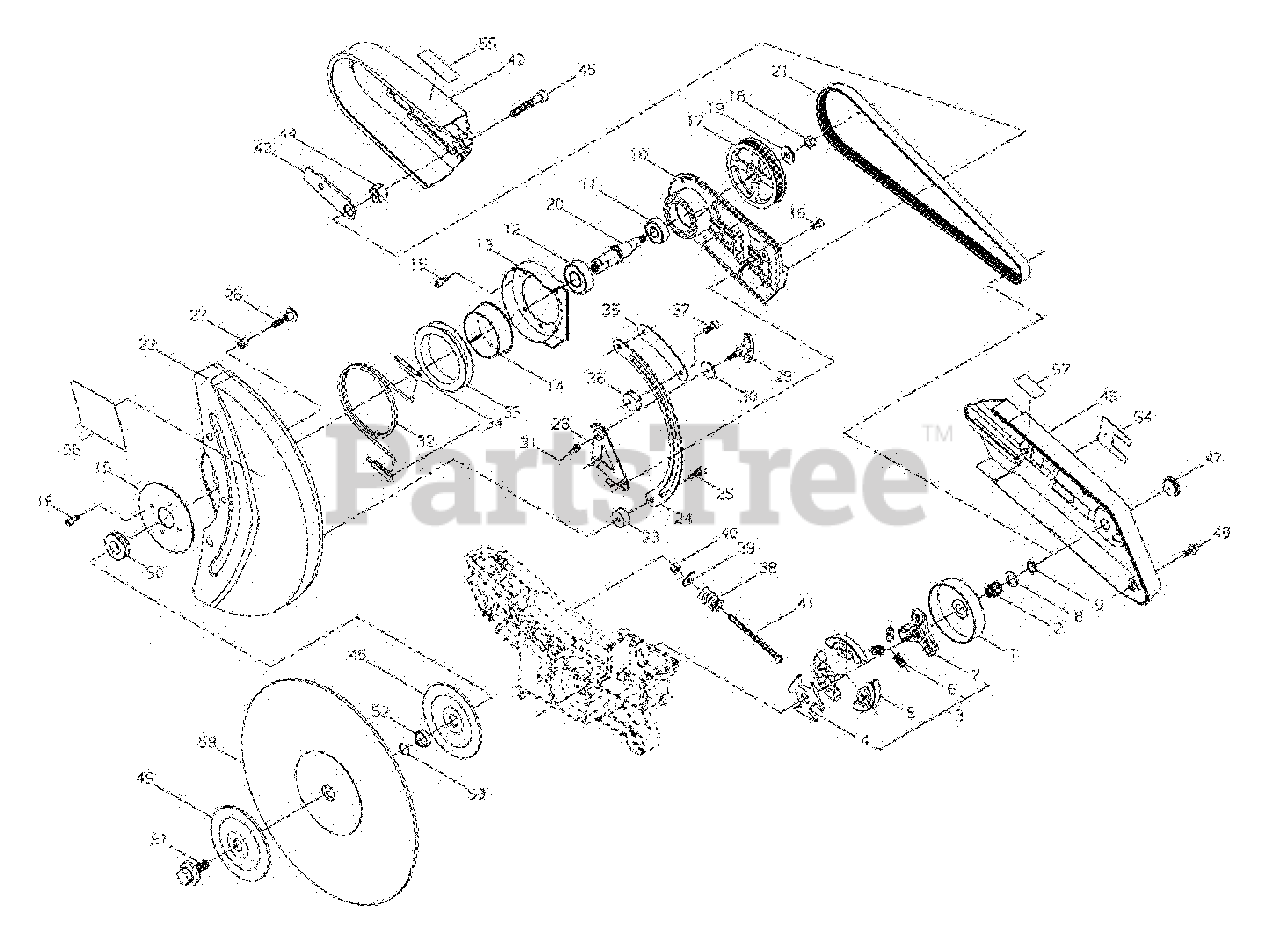

Clutch, Cutter Assembly Parts Diagram

  • Title

1

Echo 38011-51110

DRUM, CLUTCH
(Superseded to A556001200)

$71.99

$

Usually ships in 2-4 days

0

1

Echo 38010-51110

DRUM, CLUTCH
(Superseded to A556001190)

$69.99

$

Usually ships in 2-4 days

0

2

Echo 38010-51320

BEARING, NEEDLE
(Superseded to V558000010)

$11.99

$

Usually ships in 2-4 days

0

3

Echo 22169-51200

CLUTCH ASSY
(Superseded to A056000650)

$41.99

$

Usually ships in 2-4 days

0

4

Echo 22169-51240

HUB, CLUTCH - OUTER
(Superseded to A552000300)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 22169-51220

SHOE, CLUTCH
(Superseded to A555000260)

$6.49

$

Usually ships in 2-4 days

0

6

Echo 22150-51230

SPRING, CLUTCH
(Superseded to A566000210)

$1.99

$

In Stock, only 3 left!

0

7

Echo 22169-51210

HUB, CLUTCH - INNER
(Superseded to A552000290)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 22150-55120

PLATE, THRUST
(Superseded to V393000010)

$0.99

$

In Stock, Qty 8

0

9

Echo 02430-13100

RING, RETAINING - 13
(Superseded to 90070100013)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 38010-63110

CASE, BEARING
(Superseded to C530000130)

$74.99

$

Usually ships in 2-4 days

0

11

Echo 02006-06201

BEARING, BALL - 6201
(Superseded to 90081206201)

$12.99

$

In Stock, only 2 left!

0

12

Echo 02006-06203

BEARING, BALL - 6203
(Superseded to 90081206203)

$16.99

$

Usually ships in 2-4 days

0

13

Echo 38010-63330

PLATE, SPRING

$

$

Not available

14

Echo 38010-63310

RING
(Superseded to V583000210)

$3.99

$

Usually ships in 2-4 days

0

15

Echo 38010-63320

PLATE, BEARING

$

$

Not available

16

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

17

Echo 38010-64111

PULLEY, DRIVE
(Superseded to V176000120)

$94.99

$

Usually ships in 2-4 days

0

18

Echo 01500-08061

NUT - 8
(Superseded to 90050000008)

$0.99

$

In Stock, Qty 20+

0

19

Echo 15401-20007

COLLAR
(Superseded to V306000330)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 38010-64120

DRIVESHAFT

$47.99

$

Usually ships in 2-4 days

0

21

Echo 38010-64130

BELT, DRIVE
(Superseded to 38010-64131)

$44.99

$

In Stock, only 2 left!

0

22

Echo 38011-65111

GUARD, WHEEL
(Superseded to 38011-65112)

$282.99

$

Usually ships in 2-4 days

0

22

Echo 38010-65111

GUARD, WHEEL
(Superseded to 38010-65112)

$245.99

$

In Stock, only 1 left!

0

23

Echo 15401-20100

COLLAR
(Superseded to 15401-20101)

$3.99

$

In Stock, only 3 left!

0

24

Echo 38010-65310

SLIDE PLATE
(Superseded to C371000020)

$16.99

$

Usually ships in 2-4 days

0

25

Echo 01020-06200

SCREW - 6X20
(Superseded to 90010506020)

$1.49

$

In Stock, only 3 left!

0

26

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 15401-00008

COLLAR

$4.49

$

In Stock, only 2 left!

0

28

Echo 38010-65330

PLATE, LOCK
(Superseded to C371000030)

$13.99

$

Usually ships in 2-4 days

0

29

Echo 38010-65342

KNOB
(Superseded to V299000460)

$7.99

$

Usually ships in 2-4 days

0

30

Echo 15401-20008

WASHER
(Superseded to V304000320)

$0.99

$

Usually ships in 2-4 days

0

31

Echo 38010-65400

NUT
(Superseded to V263000310)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 17520-98200

SPRING
(Superseded to V452001020)

$16.99

$

Usually ships in 2-4 days

0

33

Echo 38010-65360

GUIDE, SPRING
(Superseded to C235000010)

$4.49

$

Usually ships in 2-4 days

0

34

Echo 38010-65370

SPRING HOLDER
(Superseded to V456000210)

$1.99

$

Usually ships in 2-4 days

0

35

Echo 68002-65310

ANGLE PLATE
(Superseded to Discontinued)

$

$

Not available

36

Echo 68002-65320

NUT
(Superseded to Discontinued)

$

$

Not available

37

Echo 01020-06120

SCREW - 6X12
(Superseded to 90010506012)

$1.49

$

Usually ships in 2-4 days

0

38

Echo 1750017500

SPRING
(Superseded to V450001240)

$3.49

$

Usually ships in 2-4 days

0

39

Echo 38010-66330

WASHER
(Superseded to V304000290)

$0.99

$

In Stock, only 1 left!

0

40

Echo 38010-66310

NUT
(Superseded to V264000190)

$10.99

$

In Stock, only 1 left!

0

41

Echo 38010-66320

SCREW
(Superseded to 11203-06908)

$2.49

$

In Stock, only 1 left!

0

42

Echo 38010-67310

PULLY COVER
(Superseded to C361000090)

$13.99

$

Usually ships in 2-4 days

0

43

Echo 38010-67320

PLATE, TENSION
(Superseded to V150002580)

$7.49

$

Usually ships in 2-4 days

0

44

Echo 38010-67330

BLOCK, TENSION
(Superseded to V270000030)

$7.49

$

Usually ships in 2-4 days

0

45

Echo 01020-08500

SCREW - 8X50
(Superseded to 9110008050)

$1.99

$

Usually ships in 2-4 days

0

46

Echo 38010-67340

COVER, CLUTCH
(Superseded to 38010-67341)

$23.99

$

Usually ships in 2-4 days

0

47

Echo 38010-67351

PLUG
(Superseded to V141000120)

$2.99

$

Usually ships in 2-4 days

0

48

Echo 11060-05141

SCREW - 5X14
(Superseded to V203001020)

$1.99

$

Usually ships in 2-4 days

0

49

Echo 38010-68110

FLANGE
(Superseded to C365000090)

$23.99

$

Usually ships in 2-4 days

0

50

Echo 15401-21022

COLLAR
(Superseded to V360000160)

$11.99

$

In Stock, only 3 left!

0

51

Echo 38010-68130

BOLT - FLANGE
(Superseded to V206000280)

$11.99

$

Usually ships in 2-4 days

0

52

Echo 15401-21031

COLLAR
(Superseded to V360000130)

$6.49

$

In Stock, Qty 5

0

53

Echo 68000-69310

RING, RETAINING
(Superseded to V582000210)

$1.49

$

In Stock, Qty 5

0

54

Echo 68005-91330

LABEL - TRADE

$5.49

$

Usually ships in 2-4 days

0

54

Echo 68004-91330

LABEL - TRADE

$

$

Not available

55

Echo 19401-00286

LABEL - INSTRUCTION

$1.99

$

Usually ships in 2-4 days

0

56

Echo 68005-91341

LABEL - CAUTION

$

$

Not available

56

Echo 68004-91341

LABEL - CAUTION

$

$

Not available

57

Echo 19405-00021

LABEL - ARROW

$1.99

$

Usually ships in 2-4 days

0

58

Echo 80654

CUT OFF WHEEL

$

$

Currently unavailable

58

Echo 80653

CUT OFF WHEEL

$

$

Currently unavailable
