EC 7600 - Shindaiwa 14" Cut-Off Saw (EPA Version) Carburetor Parts Diagram

14" Cut-Off Saw (EPA Version)

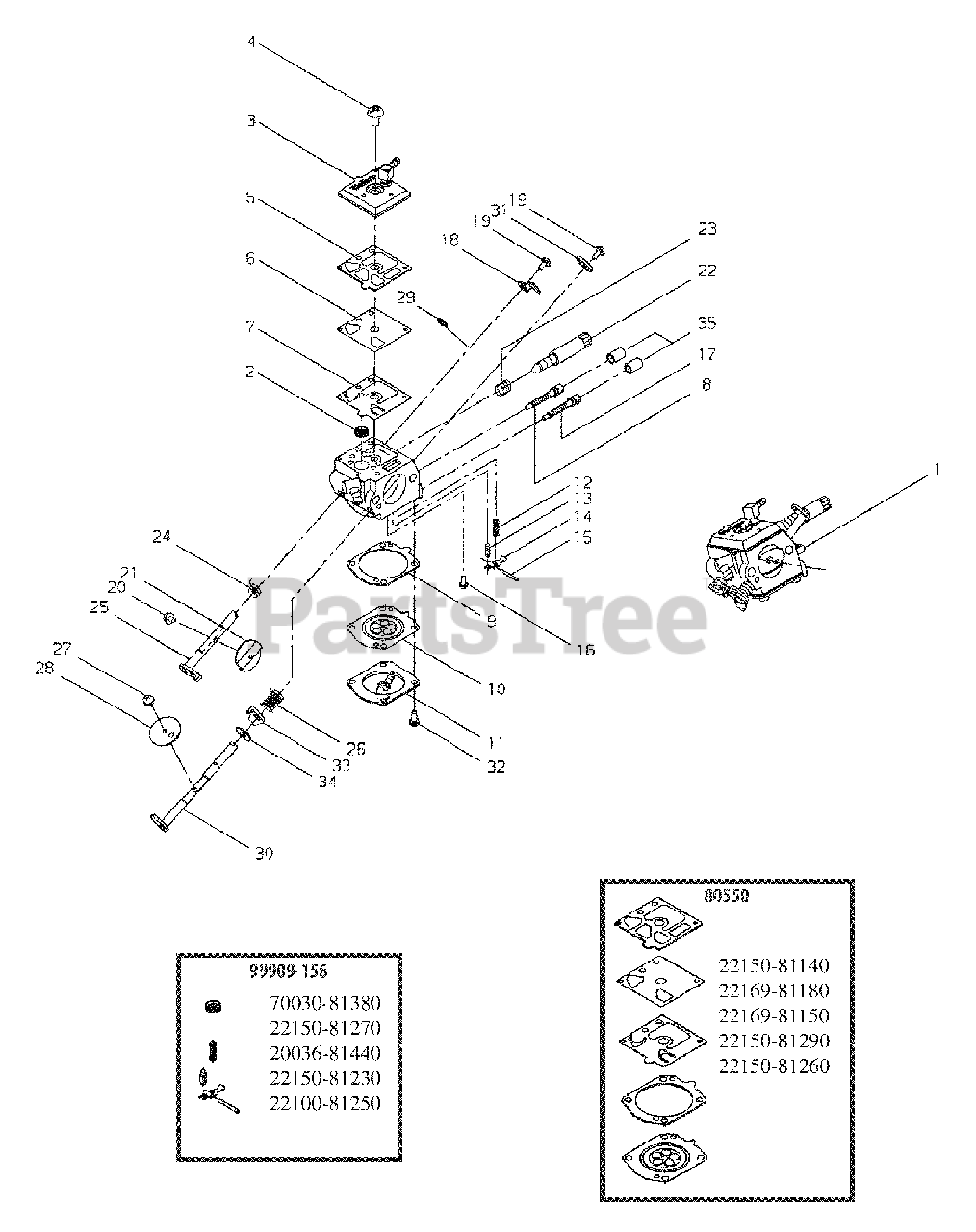

Carburetor Parts Diagram

  • Title

1

Echo 68002-81010

CARBURETOR
(Superseded to 68006-81010)

$127.99

$

Usually ships in 2-4 days

0

2

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

3

Echo 22150-81120

COVER, PUMP

$0.99

$

Usually ships in 2-4 days

0

4

Echo 22150-81130

SCREW
(Superseded to 12311016130)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 22150-81140

GASKET, PUMP
(Superseded to 12312512330)

$2.99

$

In Stock, only 1 left!

0

6

Echo 22169-81180

DIAPHRAGM, PUMP
(Superseded to P003003150)

$16.99

$

Usually ships in 2-4 days

0

7

Echo 22169-81150

DIAPHRAGM, PUMP
(Superseded to P003003130)

$15.99

$

Usually ships in 2-4 days

0

8

Echo 38010-81430

NEEDLE - LOW SPEED
(Superseded to 12312043131)

$4.49

$

Usually ships in 2-4 days

0

9

Echo 22150-81290

GASKET, METERING
(Superseded to 12314016130)

$2.49

$

In Stock, only 1 left!

0

10

Echo 22150-81260

DIAPHRAGM, METERING
(Superseded to 12314116130)

$

$

Not available

11

Echo 38010-81350

COVER, DIAPHRAGM

$

$

Not available

12

Echo 22150-81270

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

13

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

14

Echo 22150-81230

LEVER, METERING
(Superseded to 12312318330)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

16

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$1.49

$

In Stock, only 1 left!

0

17

Echo 38010-81361

NEEDLE - HIGH SPEED

$13.99

$

Usually ships in 2-4 days

0

18

Echo 22160-81390

STOP, THROTTLE
(Superseded to 12315630830)

$1.99

$

Usually ships in 2-4 days

0

19

Echo 22100-81360

SCREW
(Superseded to 12311403930)

$1.49

$

In Stock, Qty 13

0

20

Echo 20803-81140

SCREW
(Superseded to 12311405260)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 22150-81340

VALVE, THROTTLE
(Superseded to 12311616130)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 22156-81410

SCREW, IDLE ADJUST
(Superseded to P003003030)

$11.99

$

Usually ships in 2-4 days

0

23

Echo 22156-81420

SPRING
(Superseded to 12313304260)

$6.49

$

In Stock, Qty 15

0

24

Echo 22150-81430

SPRING, THROTTLE RETURN
(Superseded to P003000560)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 38010-81370

SHAFT, THROTTLE

$

$

Not available

26

Echo 38010-81380

SPRING, CHOKE RETURN
(Superseded to P003000610)

$1.49

$

Usually ships in 2-4 days

0

27

Echo 20803-81150

SCREW
(Superseded to 12311438830)

$1.49

$

In Stock, Qty 13

0

28

Echo 38010-81390

VALVE, CHOKE
(Superseded to P003003330)

$7.99

$

Usually ships in 2-4 days

0

29

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, only 2 left!

0

30

Echo 38010-81400

SHAFT, CHOKE
(Superseded to P003003340)

$19.99

$

Usually ships in 2-4 days

0

31

Echo 22156-81380

TRIGGER, THROTTLE
(Superseded to P003003020)

$3.99

$

Usually ships in 2-4 days

0

32

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

Usually ships in 2-4 days

0

33

Echo 38010-81420

LEVER, FAST IDLE
(Superseded to P003000620)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 20036-81185

WASHER
(Superseded to 12314926030)

$0.99

$

In Stock, only 1 left!

0

35

Echo 69014-81130

CAP, LIMITER

$2.99

$

Usually ships in 2-4 days

0

80550

Echo 80550

DIAPHRAGM/GASKET KIT

$23.99

$

In Stock, only 1 left!

0

99909-156

Echo 99909-156

REPAIR KIT

$6.99

$

Usually ships in 2-4 days

0
