EC 13 V (41272) - Snapper Engine, Made by Robin Subaru, 4hp Flywheel Brake Parts Diagram

Engine, Made by Robin Subaru, 4hp

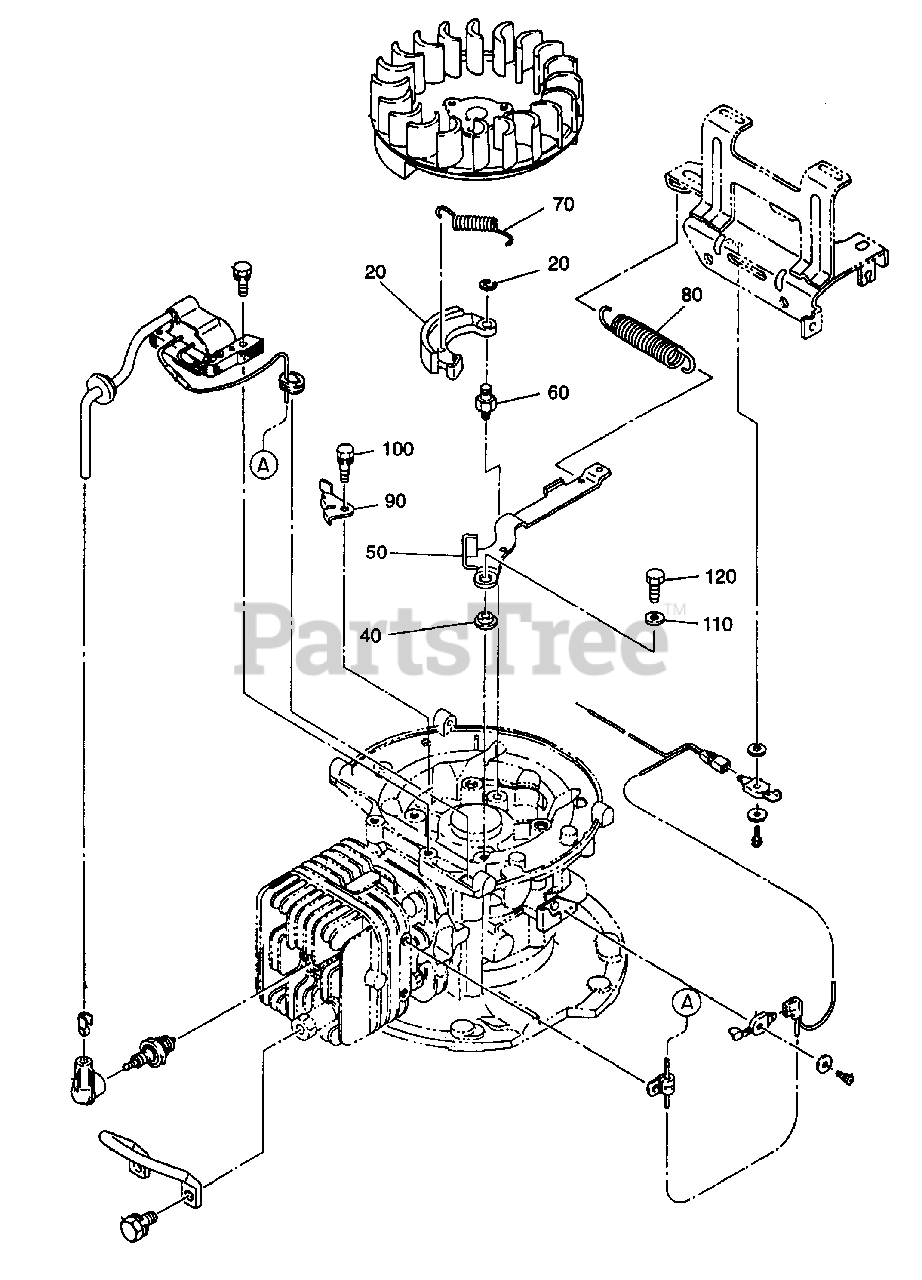

Flywheel Brake Parts Diagram

  • Title
--

Snapper 157-86002-10

BRAKE ASSY (Includes items 20, 30, 40, 50, & 70)(Not shown)

$

$

Not available

$

$

Currently unavailable

30

Snapper 157-86601-11

BRAKE SHOE CP

$

$

Not available

$

$

Not available

50

Snapper 157-86302-03

CONTROL LEVER

$

$

Not available

60

Snapper 157-86701-01

PIVOT BOLT CP

$

$

Not available

70

Snapper 157-86201-13

RETURN SPRING

$

$

Not available

80

Snapper 226-86105-13

BRAKE SPRING

$

$

Not available

90

Snapper 157-86801-03

BRACKET, BRAKE

$

$

Not available

100

Snapper 001-13061-40

BOLT & WASHER ASSY

Note: (Code No. 2466 & up)

$

$

Not available

100

Snapper 001-13061-60

BOLT AND WASHER ASSY

Note: (Code No. 2465 & below)

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Not available
