EBZ 8500 RH - RedMax Backpack Blower (SN: 10200101 & Above) (2014-04) HOUSING Parts Diagram

Backpack Blower

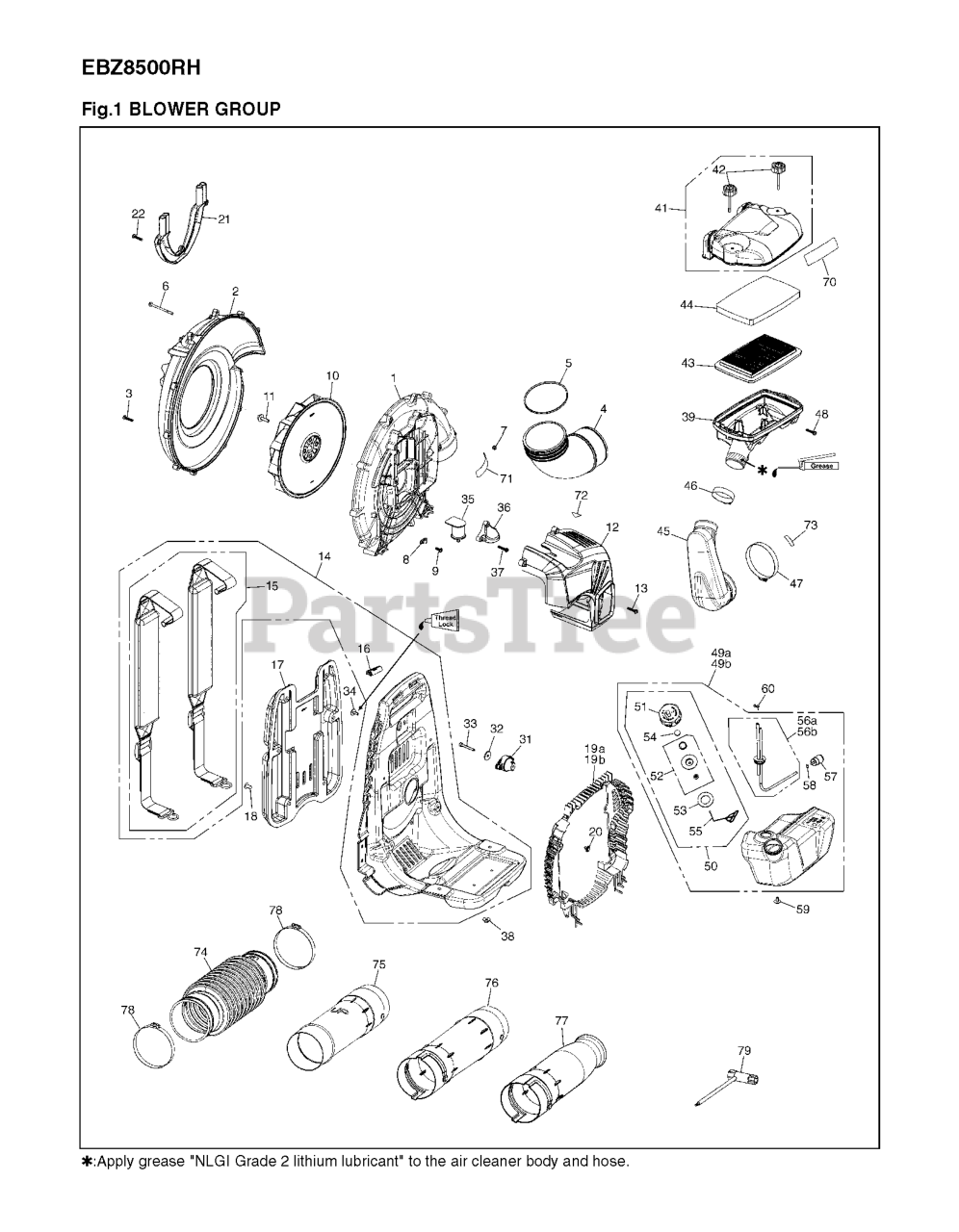

HOUSING Parts Diagram

  • Title
1

RedMax 576574401

CASE VOLUTE
(Superseded to 586245901)

$120.99

$

Usually ships in 3-10 days

0

2

RedMax 576574501

VOLUTE,COVER

$100.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 5

0

$17.99

$

In Stock, only 1 left!

0

5

RedMax 505179801

0-RING
(Superseded to 510579301)

$6.49

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 4 left!

0

8

RedMax 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

10

RedMax 576561501

FAN
(Superseded to 589266101)

$40.99

$

In Stock, Qty 10

0

$4.99

$

In Stock, only 4 left!

0

12

RedMax 576561701

ENGINE COVER

$28.99

$

In Stock, Qty 8

0

13

$3.99

$

In Stock, Qty 5

0

14

RedMax 577423501

FRAME ASSY
(Superseded to 577423701)

$51.99

$

In Stock, only 1 left!

0

15

RedMax 511758401

BAND ASSY (RPLS 848L583611)

$20.99

$

In Stock, Qty 20+

0

16

RedMax 544270001

CLIP
(Superseded to 511758801)

$4.99

$

In Stock, Qty 20+

0

$31.99

$

In Stock, Qty 19

0

18

RedMax 526476701

CLIP
(Superseded to 505184901)

$4.99

$

In Stock, Qty 20+

0

19a

RedMax 576574801

NET
(Superseded to 579659401)

$20.99

$

Usually ships in 3-10 days

0

19b

RedMax 579659401

NET ASSY

$20.99

$

Usually ships in 3-10 days

0

20

RedMax 526243901

CLIP
(Superseded to 505184701)

$7.49

$

Usually ships in 3-10 days

0

21

$10.99

$

In Stock, only 4 left!

0

22

$3.99

$

In Stock, Qty 5

0

31

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$13.99

$

In Stock, only 2 left!

0

32

RedMax 502850501

WASHER
(Superseded to 544270601)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 576810301

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, only 4 left!

0

34

$5.99

$

In Stock, only 2 left!

0

35

$17.99

$

In Stock, only 1 left!

0

36

$4.99

$

Usually ships in 3-10 days

0

37

$3.99

$

In Stock, Qty 5

0

$4.99

$

In Stock, Qty 6

0

39

RedMax 576563701

BODY AIR FILTER

$22.99

$

In Stock, Qty 17

0

41

RedMax 576575001

COVER ASSY

$34.99

$

In Stock, Qty 11

0

42

RedMax 544271401

KNOB BOLT

$13.99

$

In Stock, Qty 9

0

43

RedMax 512652001

ELEMENT
(Superseded to 544271501)

$31.99

$

In Stock, Qty 20+

0

44

RedMax 512654101

ELEMENT
(Superseded to 544271601)

$17.99

$

In Stock, Qty 11

0

45

RedMax 576575301

HOSE
(Superseded to 584642401)

$28.99

$

In Stock, Qty 6

0

46

RedMax 544271901

CLAMP(F64)

$4.99

$

In Stock, only 1 left!

0

47

RedMax 544274001

CLAMP(F96)

$6.49

$

Usually ships in 3-10 days

0

48

$3.99

$

In Stock, Qty 5

0

49a

RedMax 576575501

TANK ASSY
(Superseded to 579140201)

$91.99

$

Usually ships in 3-10 days

0

49b

RedMax 579140201

TANK ASSY

$91.99

$

Usually ships in 3-10 days

0

50

RedMax 504117701

ASSY FUEL CAP

$30.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 1 left!

0

52

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

53

$4.99

$

Usually ships in 3-10 days

0

54

$6.49

$

Usually ships in 3-10 days

0

55

$3.49

$

Usually ships in 3-10 days

0

56a

RedMax 577089801

PIPE
(Superseded to 586359613)

$9.99

$

Usually ships in 3-10 days

0

56b

RedMax 579138304

PIPE ASSY
(Superseded to 586359613)

$9.99

$

Usually ships in 3-10 days

0

57

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

58

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 5

0

59

$6.49

$

In Stock, only 1 left!

0

60

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, Qty 12

0

70

RedMax 576575901

DECAL, CLEANER

$4.99

$

In Stock, Qty 20+

0

71

$3.99

$

Usually ships in 3-10 days

0

72

$3.99

$

In Stock, Qty 9

0

73

RedMax 521740201

LABEL,CHOKE

$3.99

$

In Stock, Qty 10

0

74

RedMax 576564701

HOSE
(Superseded to 587555301)

$17.99

$

In Stock, Qty 8

0

$17.99

$

In Stock, Qty 13

0

$9.49

$

Usually ships in 3-10 days

0

77

RedMax 576576401

PIPE,END

$14.99

$

In Stock, Qty 7

0

78

RedMax 544274101

CLAMP(F115)

$4.99

$

In Stock, Qty 12

0

79

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

Usually ships in 3-10 days

0
