EBZ 8050 (966364001) - RedMax Backpack Blower (2011-04) ENGINE Parts Diagram

Backpack Blower

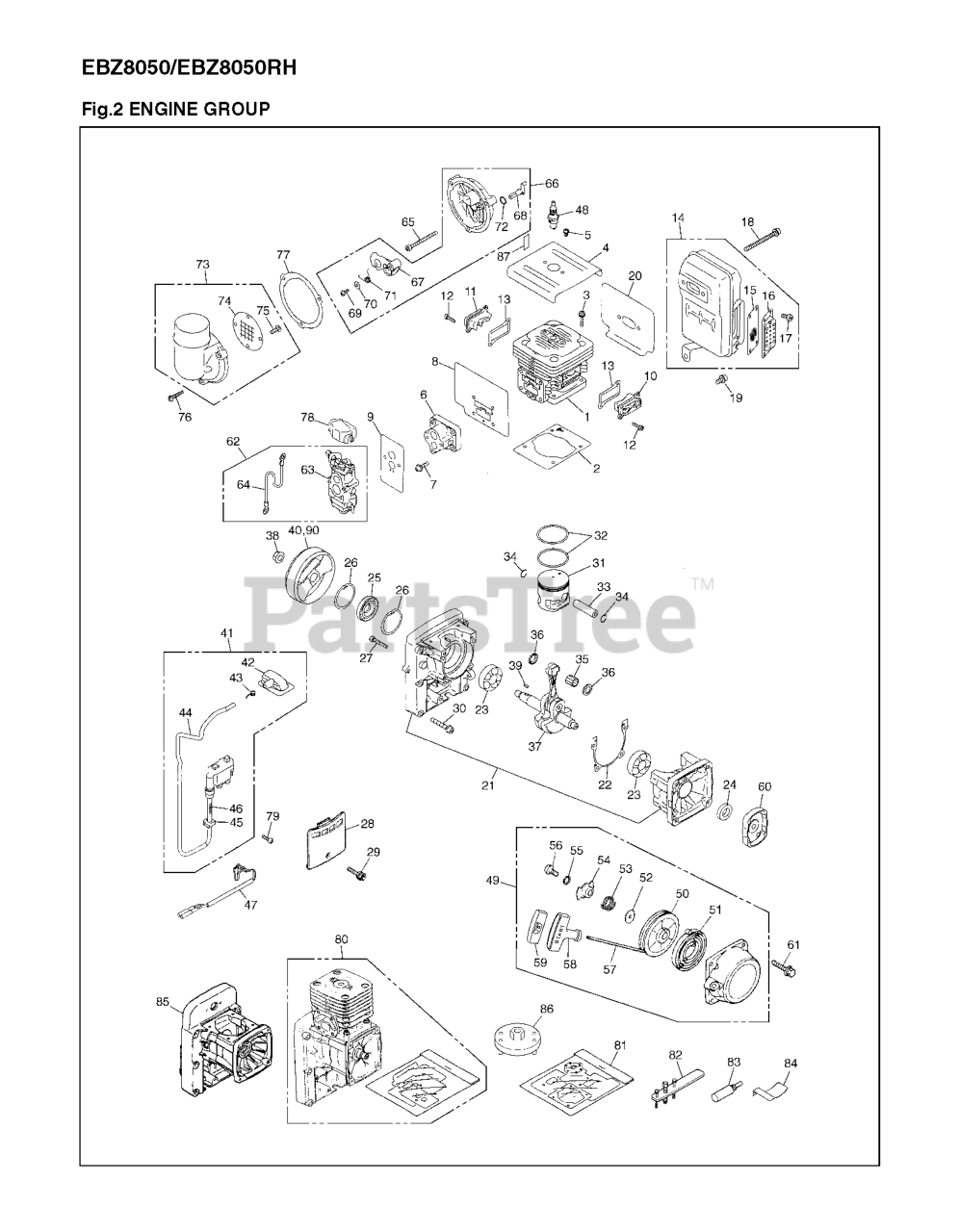

ENGINE Parts Diagram

  • Title

1

RedMax 504796201

CYLINDER

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 521626801

GASKET
(Superseded to 544256501)

$7.49

$

In Stock, only 4 left!

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 521627201

PLATE
(Superseded to 544256701)

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 544256801

SCREW

$3.49

$

In Stock, only 1 left!

0

6

RedMax 521627401

INSULATOR

$18.99

$

Usually ships in 3-10 days

0

7

RedMax 521516501

BOLT

$6.49

$

In Stock, only 4 left!

0

8

RedMax 521627501

GASKET
(Superseded to 544257101)

$8.99

$

In Stock, Qty 7

0

9

RedMax 521627601

GASKET

$4.99

$

In Stock, Qty 5

0

10

RedMax 505184001

RP_COVER TR(S)

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 505183901

COVER TR(F)

$7.99

$

In Stock, only 4 left!

0

12

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

13

RedMax 521627101

GASKET

$4.99

$

In Stock, Qty 8

0

14

RedMax 504796001

MUFFLER-A

Note: . 15 16 17

$91.99

$

Usually ships in 3-10 days

0

15

RedMax 504798201

%ARRESTER

$5.99

$

Usually ships in 3-10 days

0

16

RedMax 504798301

RP_DIFFUSER

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 544362701

BOLT

$3.49

$

In Stock, Qty 8

0

18

RedMax 504798401

BOLT

$5.99

$

Usually ships in 3-10 days

0

19

RedMax 544258001

RP_BOLT

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 511445501

GASKET MUFFLER

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 521628201

CRANKCASE COMP.

$42.99

$

Usually ships in 3-10 days

0

22

RedMax 521628301

GASKET
(Superseded to 544258301)

$

$

Not available

23

RedMax 521521301

BALL BEARING

$18.99

$

In Stock, only 2 left!

0

24

RedMax 521521901

SEAL
(Superseded to 544258501)

$8.99

$

In Stock, only 3 left!

0

25

RedMax 521522001

SEAL
(Superseded to 544258601)

$8.99

$

In Stock, only 1 left!

0

26

RedMax 516126201

SNAP-RING
(Superseded to 510551701)

$

$

Not available

27

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

28

RedMax 521628401

COVER
(Superseded to 544258901)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

30

RedMax 521517601

BOLT
(Superseded to 576810401)

$4.99

$

In Stock, only 4 left!

0

31

RedMax 504796301

PISTON

$62.99

$

In Stock, only 4 left!

0

32

RedMax 504796501

PISTON RING (1-PER BOX)
(Superseded to 510918401)

$8.99

$

In Stock, Qty 9

0

33

RedMax 504796401

PISTON PIN

$9.49

$

In Stock, Qty 14

0

34

RedMax 521531901

SNAP RING

$6.49

$

In Stock, only 1 left!

0

35

RedMax 521520801

ROLLER BEARING
(Superseded to 544259601)

$18.99

$

In Stock, only 4 left!

0

36

RedMax 521520501

WASHER

$4.99

$

In Stock, Qty 5

0

37

RedMax 521628801

SHAFT COMP

$157.99

$

In Stock, only 1 left!

0

38

RedMax 513241901

NUT

$6.49

$

In Stock, only 4 left!

0

39

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 544260101

ROTOR
(Superseded to 511455001)

Note: OPPAMA ROTOR COIL BEFORE SN 90939055

$51.99

$

Usually ships in 3-10 days

0

90

RedMax 574814201

ROTOR

Note: IKEDA ROTOR COIL AFTER SN 91239056

$66.99

$

In Stock, only 1 left!

0

41

RedMax 521633401

COIL ASSY.(RPLS 848H107120)

Note: OPPAMA ROTOR COIL BEFORE SN 90939055. 42 43 44 45

$

$

Not available

41

RedMax 574814301

COIL ASSY

Note: IKEDA ROTOR COIL AFTER SN 91239056. 42 43 44 45 46

$121.99

$

Usually ships in 3-10 days

0

42

RedMax 512258501

CAP

$12.99

$

Usually ships in 3-10 days

0

43

RedMax 521739501

SPRING
(Superseded to 515415201)

Note: OPPAMA ROTOR COIL BEFORE SN 90939055

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 521358701

SPRING

Note: IKEDA ROTOR COIL AFTER SN 91239056

$0.99

$

Usually ships in 3-10 days

0

44

RedMax 544362901

RP TUBE-A

$3.49

$

Usually ships in 3-10 days

0

45

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

46

RedMax 544362901

RP TUBE-A

Note: IKEDA ROTOR COIL AFTER SN 91239056

$3.49

$

Usually ships in 3-10 days

0

47

RedMax 512258401

CORD-COMP

$9.99

$

Usually ships in 3-10 days

0

48

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

49

RedMax 521629301

RECOIL ASSY

Note: . 50 thru 59

$47.99

$

In Stock, only 3 left!

0

50

RedMax 521629901

REEL
(Superseded to 544261101)

$36.99

$

Usually ships in 3-10 days

0

51

RedMax 521629601

SPRING

$17.99

$

In Stock, Qty 6

0

52

RedMax 521630801

WASHER
(Superseded to 544261801)

$4.99

$

In Stock, Qty 20+

0

53

RedMax 521630601

SPRING FRICTION

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 521630301

PLATE
(Superseded to 544262001)

$10.99

$

Usually ships in 3-10 days

0

55

RedMax 521631201

WASHER

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

57

RedMax 521531801

ROPE
(Superseded to 544261401)

$5.99

$

Usually ships in 3-10 days

0

58

RedMax 521630001

KNOB
(Superseded to 544261501)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 521631301

COVER
(Superseded to 544261601)

$3.99

$

Usually ships in 3-10 days

0

60

RedMax 521629501

PULLEY ASSY

$18.99

$

In Stock, only 1 left!

0

61

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

62

RedMax 521631401

CARBURETOR SET

Note: . 63 64

$206.99

$

Usually ships in 3-10 days

0

63

RedMax 505183101

CARBURETOR-A

$169.99

$

Usually ships in 3-10 days

0

64

RedMax 505183201

CORD
(Superseded to 501003001)

$4.99

$

Usually ships in 3-10 days

0

65

RedMax 515390701

BOLT

$4.99

$

Usually ships in 3-10 days

0

66

RedMax 544363101

CUP ASSY

Note: . 67 68 69 70 71 72

$34.99

$

Usually ships in 3-10 days

0

67

RedMax 521632901

CHOKE PLATE

$

$

Not available

68

RedMax 521633001

LEVER

$3.99

$

In Stock, Qty 5

0

69

RedMax 521519301

SCREW
(Superseded to 510910501)

$

$

Not available

70

RedMax 521519701

RP_WASHER

$

$

Not available

71

RedMax 521632701

SPRING

$4.99

$

Usually ships in 3-10 days

0

72

RedMax 516136001

O-RING

$4.99

$

In Stock, Qty 14

0

73

RedMax 521632001

CUP COVER ASSY
(Superseded to 544263301)

Note: . 74 75

$10.99

$

Usually ships in 3-10 days

0

74

RedMax 521632501

SCREEN
(Superseded to 544263401)

$5.99

$

Usually ships in 3-10 days

0

75

RedMax 516361701

SCREW
(Superseded to 513303601)

$3.49

$

Usually ships in 3-10 days

0

76

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

77

RedMax 521632601

GASKET

$8.99

$

In Stock, only 4 left!

0

78

RedMax 506744201

COVER

$9.99

$

In Stock, only 1 left!

0

79

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

80

RedMax 577911501

SHORT BLOCK

$

$

Not available

RedMax 521627501

GASKET
(Superseded to 544257101)

$8.99

$

In Stock, Qty 7

0

RedMax 521627601

GASKET

$4.99

$

In Stock, Qty 5

0

RedMax 511445501

GASKET MUFFLER

$10.99

$

Usually ships in 3-10 days

0

81

RedMax 521626301

GASKET KIT

$11.99

$

Usually ships in 3-10 days

0

82

RedMax 513673501

PULLER ASSY

$241.99

$

Usually ships in 3-10 days

0

83

RedMax 515387901

STOPPER

$32.99

$

Usually ships in 3-10 days

0

84

RedMax 510961701

GAUGE

$60.99

$

Usually ships in 3-10 days

0

85

RedMax 521628101

RP_CRANKCASE-A

$

$

Not available

86

RedMax 521533301

RP_PULLER

$

$

Not available

87

RedMax 521740201

LABEL,CHOKE

$3.99

$

In Stock, Qty 11

0
