EBZ 8001 RH - RedMax Backpack Blower (SN: 61201408 & Above) FRAME Parts Diagram

Backpack Blower

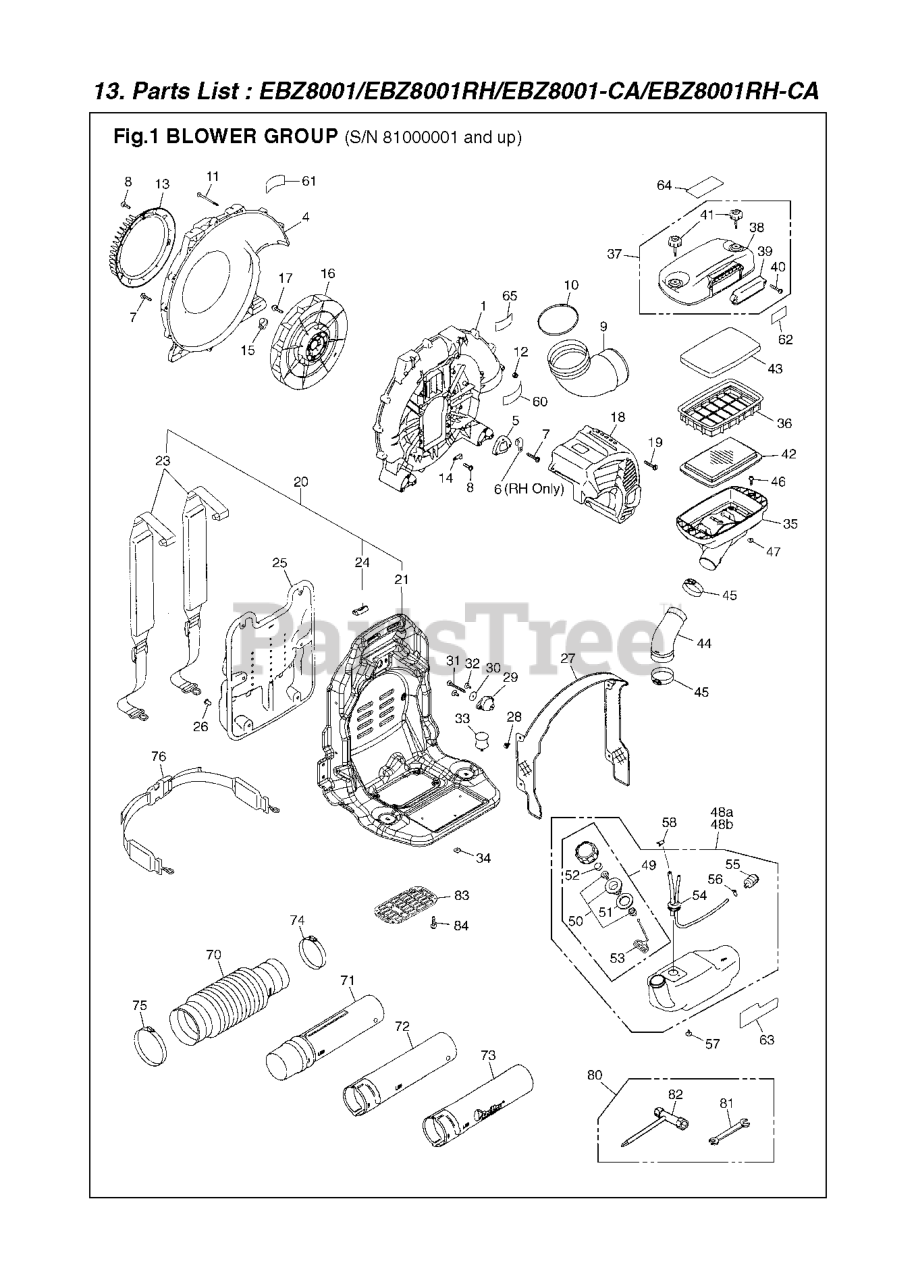

FRAME Parts Diagram

  • Title

1

RedMax 511763001

VOLUTE CASE

$194.99

$

Usually ships in 3-10 days

0

4

RedMax 511766301

COVER.V

$109.99

$

In Stock, only 1 left!

0

5

RedMax 511766101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 513671901

CLAMP

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

8

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0

9

RedMax 505180801

ELBOW
(Superseded to 511766101)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 505179801

0-RING
(Superseded to 510579301)

$6.49

$

In Stock, only 1 left!

0

11

RedMax 544264601

SCREW

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 514189301

$

$

Not available

13

RedMax 505184301

COVER (FUNNEL)

$22.99

$

Usually ships in 3-10 days

0

14

RedMax 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 511766201

CAP

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 505184401

RP_FAN

$74.99

$

In Stock, only 1 left!

0

17

RedMax 510906101

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 511755301

COVER.ENGINE

$

$

Not available

19

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

20

RedMax 511821201

FRAME (RPLS 848L5M3500)

$

$

Not available

21

RedMax 511822101

FRAME EBZ8001(R-848L583513,14)
(Superseded to 511821201)

$

$

Not available

23

RedMax 511758401

BAND ASSY (RPLS 848L583611)

$20.99

$

In Stock, Qty 20+

0

24

RedMax 544270001

CLIP
(Superseded to 511758801)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 505184801

PAD
(Superseded to 511758001)

$26.99

$

In Stock, only 3 left!

0

26

RedMax 505184901

CLIP
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

27

RedMax 511757601

NET-C

$7.99

$

Usually ships in 3-10 days

0

28

RedMax 505184701

CLIP
(Superseded to 526243901)

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$13.99

$

In Stock, only 2 left!

0

30

RedMax 502850501

WASHER
(Superseded to 544270601)

$4.99

$

Usually ships in 3-10 days

0

31

RedMax 521517201

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, Qty 5

0

32

RedMax 544270801

SCREW

$5.99

$

In Stock, Qty 6

0

33

RedMax 513667301

DAMPER
(Superseded to 516874901)

$13.99

$

In Stock, only 2 left!

0

34

RedMax 513667501

NUT

$4.99

$

In Stock, only 1 left!

0

35

RedMax 505182501

BODY

$20.99

$

In Stock, only 2 left!

0

36

RedMax 505182401

CASE

$11.99

$

Usually ships in 3-10 days

0

37

RedMax 521676901

COVER ASSY

Note: . 38 39 40 41

$

$

Not available

38

RedMax TBD

$

$

Not available

39

RedMax 544271301

COVER

$6.99

$

Usually ships in 3-10 days

0

40

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

41

RedMax 521677101

KNOB BOLT-RED

$

$

Not available

42

RedMax 512652001

ELEMENT
(Superseded to 544271501)

$31.99

$

In Stock, Qty 20+

0

43

RedMax 512654101

ELEMENT
(Superseded to 544271601)

$17.99

$

In Stock, Qty 20+

0

44

RedMax 505182801

HOSE

$17.99

$

Usually ships in 3-10 days

0

45

RedMax 510925801

CLAMP
(Superseded to 544271901)

$4.99

$

In Stock, only 2 left!

0

46

RedMax 512845601

BOLT

$6.49

$

In Stock, Qty 6

0

47

RedMax 505182601

NUT

$4.99

$

Usually ships in 3-10 days

0

48A

RedMax 521677501

TANK-A***
(Superseded to 521679101)

Note: . 49 50 51-56

$93.99

$

Usually ships in 3-10 days

0

49

RedMax 504117701

ASSY FUEL CAP

Note: . 50 51 52 53

$30.99

$

In Stock, only 3 left!

0

50

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

51

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

52

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

53

RedMax 504117901

STOPPER

$3.49

$

Usually ships in 3-10 days

0

54

RedMax 511772601

PIPE C
(Superseded to 579138305)

$15.99

$

Usually ships in 3-10 days

0

55

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

56

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

57

RedMax 544273101

SCREW

$3.49

$

In Stock, Qty 5

0

58

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

60

RedMax 513666101

LABEL.CAUTION

$3.49

$

Usually ships in 3-10 days

0

61

RedMax 521832401

LABEL, NET

$6.49

$

Usually ships in 3-10 days

0

62

RedMax 511822501

LABEL EBZ8001

$

$

Not available

63

RedMax 511822701

LABEL,TANK

$

$

Not available

64

RedMax 512651301

LABEL

$9.49

$

Usually ships in 3-10 days

0

65

RedMax 510963901

$

$

Not available

70

RedMax 521676601

HOSE ALT 848L6565A0
(Superseded to 505180901)

$37.99

$

Usually ships in 3-10 days

0

71

RedMax 511767301

SWIVEL JOINT
(Superseded to 521676501)

$17.99

$

In Stock, only 1 left!

0

72

RedMax 511768201

PIPE

$18.99

$

Usually ships in 3-10 days

0

73

RedMax 511768701

PIPE END (RPLS 848L5865E0)
(Superseded to 521679001)

$37.99

$

Usually ships in 3-10 days

0

74

RedMax 510926001

CLAMP
(Superseded to 544274001)

$6.49

$

Usually ships in 3-10 days

0

75

RedMax 510926101

CLAMP
(Superseded to 544274101)

$4.99

$

In Stock, Qty 19

0

76

RedMax 521674801

BAND ASSY (RPLS 848L583620)

$43.99

$

Usually ships in 3-10 days

0

80

RedMax 521532301

TOOL-SET

Note: . 81 82

$7.99

$

Usually ships in 3-10 days

0

81

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

82

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 2 left!

0

83

RedMax 505185201

RP_NET

$

$

Not available

84

RedMax 510925401

CLIP

$

$

Not available
