EBZ 8001 RH - RedMax Backpack Blower (SN: 61201408 & Above) (2006-12) 004 - ENGINE GROUP Parts Diagram

Backpack Blower

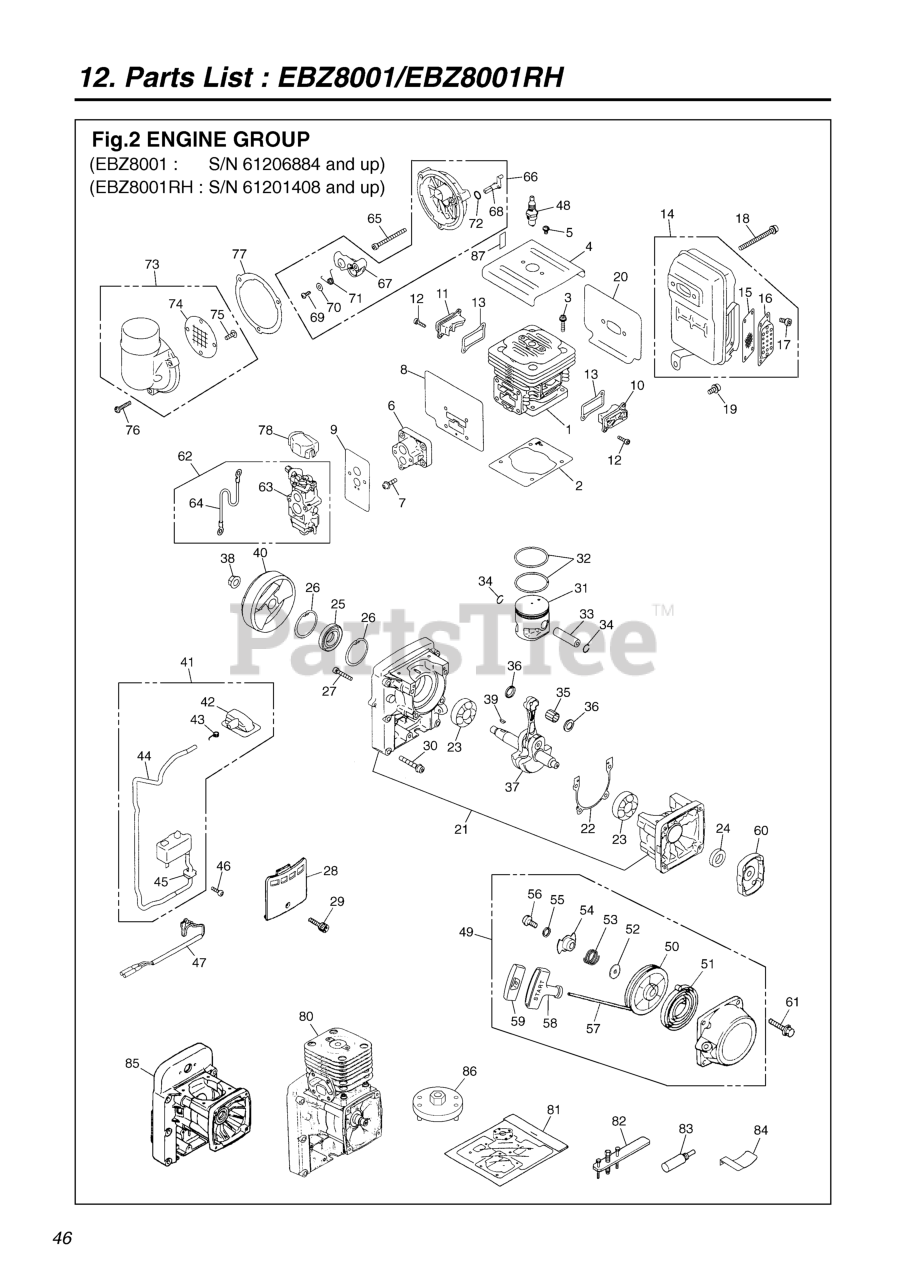

004 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax 848H0012A2

CYLINDER (EBZ8000)
(Superseded to 504796201)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 848H0012B1

GASKET, BASE
(Superseded to 511444201)

$7.49

$

In Stock, only 4 left!

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 848H0012G0

PLATE, CYL
(Superseded to 521627201)

$4.99

$

Usually ships in 3-10 days

0

5

RedMax T496050810

SCREW TORX
(Superseded to 544256801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 848H0014A0

INSULATOR
(Superseded to 521627401)

$18.99

$

Usually ships in 3-10 days

0

7

RedMax 8488152001

BOLT TORX
(Superseded to 521516501)

$6.49

$

In Stock, only 3 left!

0

8

RedMax 848H0014B2

GASKET, INSULATOR
(Superseded to 511444901)

$8.99

$

In Stock, Qty 7

0

9

RedMax 848H0014C1

GASKET, CARB.
(Superseded to 521627601)

$4.99

$

In Stock, Qty 5

0

10

RedMax 848H0012C0

COVER, TR-S
(Superseded to 505184001)

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 848H0012D0

COVER,TR-F
(Superseded to 505183901)

$7.99

$

In Stock, only 4 left!

0

12

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

13

RedMax 848H0012E1

GASKET, TR
(Superseded to 521627101)

$4.99

$

In Stock, Qty 8

0

14

RedMax 848H101510

Muffler Assy
(Superseded to 504796001)

$91.99

$

Usually ships in 3-10 days

0

15

RedMax 848H1015B0

Arrester
(Superseded to 504798201)

$5.99

$

Usually ships in 3-10 days

0

16

RedMax 848H1015U0

Diffuser
(Superseded to 504798301)

$6.49

$

Usually ships in 3-10 days

0

17

RedMax T495040800

Bolt
(Superseded to 544362701)

$3.49

$

In Stock, only 3 left!

0

18

RedMax 8488167500

BOLT TORX
(Superseded to 504798401)

$5.99

$

Usually ships in 3-10 days

0

19

RedMax T495061431

BOLT
(Superseded to 544258001)

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 848H0015C1

GASKET, MUFFLER (RPLS. -15C0)
(Superseded to 511445501)

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 848H002110

CRANKCASE-CASE
(Superseded to 521628201)

$42.99

$

Usually ships in 3-10 days

0

22

RedMax 848H0021D1

GASKET, CASE
(Superseded to 511446001)

$

$

Not available

23

RedMax 84889G4200

BEARING
(Superseded to 576696201)

$18.99

$

Usually ships in 3-10 days

0

24

RedMax 8488AG2700

SEAL
(Superseded to 521521901)

$8.99

$

In Stock, Qty 5

0

25

RedMax 8488AG4200

SEAL
(Superseded to 521522001)

$8.99

$

In Stock, only 1 left!

0

26

RedMax 0406504218

SNAP RING
(Superseded to 544258701)

$

$

Not available

27

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

28

RedMax 848H0021H0

COVER
(Superseded to 544258901)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

30

RedMax 8488164500

BOLT TORX
(Superseded to 544259101)

$4.99

$

In Stock, only 4 left!

0

31

RedMax 848H0041A1

PISTON
(Superseded to 504796301)

$62.99

$

In Stock, only 2 left!

0

32

RedMax 8488C50200

RING
(Superseded to 510918401)

$8.99

$

In Stock, Qty 5

0

33

RedMax 8488BC4500

PIN
(Superseded to 504796401)

$9.49

$

In Stock, Qty 14

0

34

RedMax 8488T31300

SNAP RING
(Superseded to 521531901)

$6.49

$

In Stock, Qty 7

0

35

RedMax 84888C1600

BEARING
(Superseded to 521520801)

$18.99

$

In Stock, Qty 7

0

36

RedMax 848873C000

WASHER
(Superseded to 521520501)

$4.99

$

In Stock, only 1 left!

0

37

RedMax 848H004203

CRANKSHAFT-C
(Superseded to 521628801)

$157.99

$

In Stock, only 1 left!

0

38

RedMax 140043230

NUT, M10
(Superseded to 513241901)

$6.49

$

In Stock, Qty 5

0

39

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 848H1071A0

ROTOR
(Superseded to 511455001)

$51.99

$

Usually ships in 3-10 days

0

41

RedMax 848H107121

COIL ASSY
(Superseded to 521633401)

$

$

Not available

42

RedMax T110872110

CAP
(Superseded to 521739401)

$12.99

$

Usually ships in 3-10 days

0

43

RedMax T110872120

SPRING
(Superseded to 521739501)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax T110872130

TUBE
(Superseded to 544362901)

$3.49

$

Usually ships in 3-10 days

0

45

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

47

RedMax T110871240

CORD-C
(Superseded to 512258401)

$9.99

$

In Stock, only 1 left!

0

48

RedMax 369991867

SPARK PLUG
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

49

RedMax 848H007512

RECOIL ASSY (RPLS -7511)
(Superseded to 521629301)

$47.99

$

Usually ships in 3-10 days

0

50

RedMax 848H0075C2

REEL (REPLACES -75C1)
(Superseded to 521629901)

$36.99

$

Usually ships in 3-10 days

0

51

RedMax 848H0075B0

SPRING
(Superseded to 521629601)

$17.99

$

In Stock, only 4 left!

0

52

RedMax 848H0075M1

WASHER (REPLACES -75M0)
(Superseded to 544261801)

$4.99

$

In Stock, Qty 20+

0

53

RedMax 848H0075L2

SPRING, FRICTION (RPLS. -75L1)
(Superseded to 544261901)

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 848H0075K2

PLATE, FRICTION (RPLS. -75K1)
(Superseded to 511449201)

$10.99

$

Usually ships in 3-10 days

0

55

RedMax 848H0075W1

WASHER (REPLACES -75W0)
(Superseded to 544261701)

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

57

RedMax 8488S90000

ROPE
(Superseded to 544261401)

$5.99

$

Usually ships in 3-10 days

0

58

RedMax 848H0075J0

KNOB
(Superseded to 511448901)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 848H0075Z0

COVER KNOB
(Superseded to 544261601)

$3.99

$

Usually ships in 3-10 days

0

60

RedMax 848H007521

PULLEY (RPLS 848-H00-7520)
(Superseded to 521629501)

$18.99

$

In Stock, only 1 left!

0

61

RedMax 482032120

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

62

RedMax 848H008000

CARBURETOR SET
(Superseded to 521631401)

$206.99

$

Usually ships in 3-10 days

0

63

RedMax 848H008100

CARBURETOR-A (WYA-44)
(Superseded to 505183101)

$169.99

$

Usually ships in 3-10 days

0

64

RedMax 8488M10550

Cord
(Superseded to 501003001)

$4.99

$

Usually ships in 3-10 days

0

65

RedMax 482082310

BOLT
(Superseded to 515390701)

$4.99

$

Usually ships in 3-10 days

0

66

RedMax 848H018330

CUP ASSY
(Superseded to 544363101)

$34.99

$

In Stock, only 1 left!

0

67

RedMax 848H0183C0

PLATE, CHOKE
(Superseded to 521632901)

$

$

Not available

68

RedMax 848H0183D0

LEVER
(Superseded to 521633001)

$2.49

$

Usually ships in 3-10 days

0

69

RedMax 8488541600

SCREW
(Superseded to 510910501)

$

$

Not available

70

RedMax 8488704000

WASHER
(Superseded to 521519701)

$

$

Not available

71

RedMax 848H0084A0

SPRING
(Superseded to 521632701)

$4.99

$

Usually ships in 3-10 days

0

72

RedMax 0700011007

O-RING
(Superseded to 516136001)

$4.99

$

In Stock, Qty 8

0

73

RedMax 848H008341

COVER ASSY. (REPLACES -8340)
(Superseded to 521632001)

$10.99

$

Usually ships in 3-10 days

0

74

RedMax 848H0083K1

SCREEN
(Superseded to 544263401)

$5.99

$

Usually ships in 3-10 days

0

75

RedMax 149182360

SCREW
(Superseded to 513303601)

$3.49

$

Usually ships in 3-10 days

0

76

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 9

0

77

RedMax 848H0083M1

GASKET,CUP
(Superseded to 521632601)

$8.99

$

In Stock, only 4 left!

0

78

RedMax 450081910

COVER
(Superseded to 506744201)

$9.99

$

In Stock, only 1 left!

0

80

RedMax 848H001000

SHORT BLOCK (EBZ8000)
(Superseded to 577911501)

$

$

Not available

81

RedMax 848H000610

GASKET KIT
(Superseded to 521626301)

$11.99

$

Usually ships in 3-10 days

0

82

RedMax 275096100

PULLER ASSY

$69.26

$

Usually ships in 3-10 days

0

83

RedMax 481096220

STOPPER (TOOL)
(Superseded to 521345101)

$32.99

$

Usually ships in 3-10 days

0

84

RedMax 275096240

GAUGE

$

$

Not available

85

RedMax 848H002100

CRANKCASE-A
(Superseded to 521628101)

$

$

Not available

86

RedMax 8488W00020

PULLER
(Superseded to 521533301)

$

$

Not available

87

RedMax T110882061

LABEL, CHOKE
(Superseded to 521740201)

$3.99

$

In Stock, Qty 11

0
