EBZ 7500 RH - RedMax Backpack Blower (SN: 01200101 & Above) (2014-04) HOUSING Parts Diagram

Backpack Blower

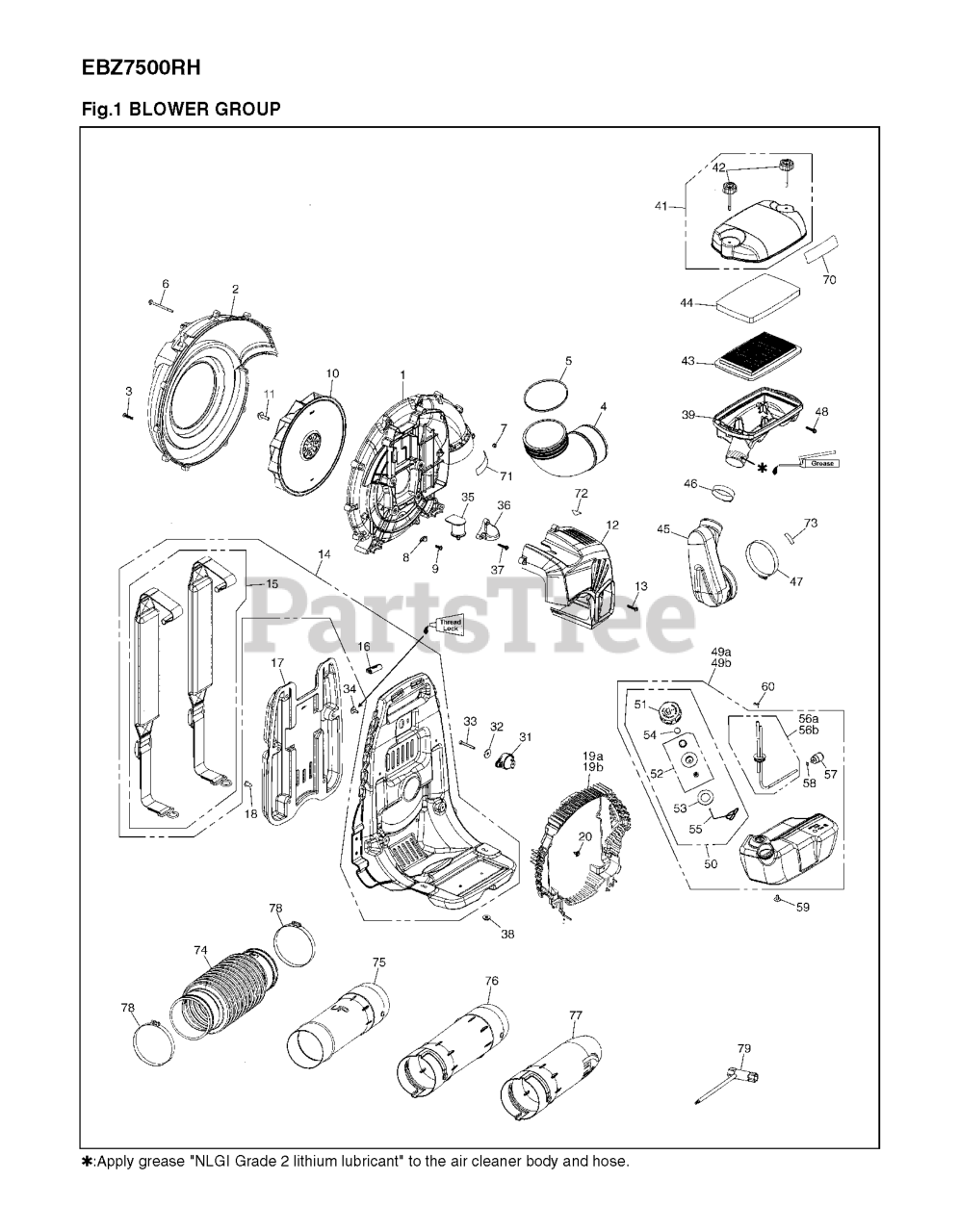

HOUSING Parts Diagram

  • Title

1

RedMax 576561201

VOLUTE

$78.99

$

Usually ships in 3-10 days

0

2

RedMax 576561301

VOLUTE,COVER

$74.99

$

Usually ships in 3-10 days

0

3

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

4

RedMax 576561401

ELBOW

$17.99

$

Usually ships in 3-10 days

0

5

RedMax 505179801

0-RING
(Superseded to 510579301)

$6.49

$

In Stock, only 1 left!

0

6

RedMax 544264601

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 514183901

NUT

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0

10

RedMax 576561501

FAN
(Superseded to 589266101)

$40.99

$

In Stock, only 1 left!

0

11

RedMax 576561601

BOLT

$4.99

$

In Stock, Qty 11

0

12

RedMax 576561701

ENGINE COVER

$28.99

$

In Stock, Qty 20+

0

13

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

14

RedMax 576561801

FRAME ASSY

$84.99

$

Usually ships in 3-10 days

0

15

RedMax 511758401

BAND ASSY (RPLS 848L583611)

$20.99

$

In Stock, Qty 20+

0

16

RedMax 544270001

CLIP
(Superseded to 511758801)

$4.99

$

In Stock, Qty 20+

0

17

RedMax 576562001

PAD

$31.99

$

In Stock, Qty 11

0

18

RedMax 526476701

CLIP
(Superseded to 505184901)

$4.99

$

In Stock, Qty 20+

0

19a

RedMax 576562101

NET
(Superseded to 579659501)

$9.49

$

Usually ships in 3-10 days

0

19b

RedMax 579659501

NET

$9.49

$

Usually ships in 3-10 days

0

20

RedMax 526243901

CLIP
(Superseded to 505184701)

$7.49

$

Usually ships in 3-10 days

0

31

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$13.99

$

In Stock, only 2 left!

0

32

RedMax 502850501

WASHER
(Superseded to 544270601)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 576810301

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, Qty 5

0

34

RedMax 544270801

SCREW

$5.99

$

In Stock, Qty 6

0

35

RedMax 576562201

DAMPER

$17.99

$

In Stock, only 1 left!

0

36

RedMax 576562301

BRACKET

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

38

RedMax 513667501

NUT

$4.99

$

In Stock, only 1 left!

0

39

RedMax 576563701

BODY AIR FILTER

$22.99

$

In Stock, Qty 20+

0

41

RedMax 576563801

COVER

$26.99

$

In Stock, only 2 left!

0

42

RedMax 544271401

KNOB BOLT

$13.99

$

In Stock, Qty 7

0

43

RedMax 512652001

ELEMENT
(Superseded to 544271501)

$31.99

$

In Stock, Qty 20+

0

44

RedMax 512654101

ELEMENT
(Superseded to 544271601)

$17.99

$

In Stock, Qty 20+

0

45

RedMax 576564001

HOSE

$18.99

$

Usually ships in 3-10 days

0

46

RedMax 544271901

CLAMP(F64)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 544274001

CLAMP(F96)

$6.49

$

Usually ships in 3-10 days

0

48

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

49a

RedMax 576564101

TANK ASSY

$54.99

$

Usually ships in 3-10 days

0

49b

RedMax 579140001

TANK ASSY
(Superseded to 579140001)

$91.99

$

Usually ships in 3-10 days

0

50

RedMax 504117701

ASSY FUEL CAP

$30.99

$

In Stock, only 3 left!

0

51

RedMax 505309701

CAP

$4.99

$

In Stock, only 2 left!

0

52

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

53

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

54

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

55

RedMax 504117901

STOPPER

$3.49

$

Usually ships in 3-10 days

0

56a

RedMax 577089801

PIPE
(Superseded to 586359613)

$9.99

$

Usually ships in 3-10 days

0

56b

RedMax 579138304

PIPE ASSY
(Superseded to 586359613)

$9.99

$

Usually ships in 3-10 days

0

57

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

58

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

59

RedMax 577628801

SCREW

$6.49

$

In Stock, only 1 left!

0

60

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

70

RedMax 576564401

DECAL,CLEANER

$6.49

$

In Stock, Qty 6

0

71

RedMax 577083401

DECAL

$3.99

$

In Stock, only 1 left!

0

72

RedMax 521553601

LABEL

$3.99

$

In Stock, Qty 10

0

73

RedMax 521740201

LABEL,CHOKE

$3.99

$

In Stock, Qty 11

0

74

RedMax 576564701

HOSE
(Superseded to 587555301)

$17.99

$

In Stock, only 2 left!

0

75

RedMax 576564801

PIPE

$17.99

$

In Stock, only 4 left!

0

76

RedMax 576564901

PIPE

$9.49

$

Usually ships in 3-10 days

0

77

RedMax 576565001

PIPE

$9.99

$

In Stock, Qty 10

0

78

RedMax 544274101

CLAMP(F115)

$4.99

$

In Stock, Qty 19

0

79

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 2 left!

0
