EBZ 7500 RH (966709901) - RedMax Backpack Blower (2010-10) ENGINE Parts Diagram

Backpack Blower

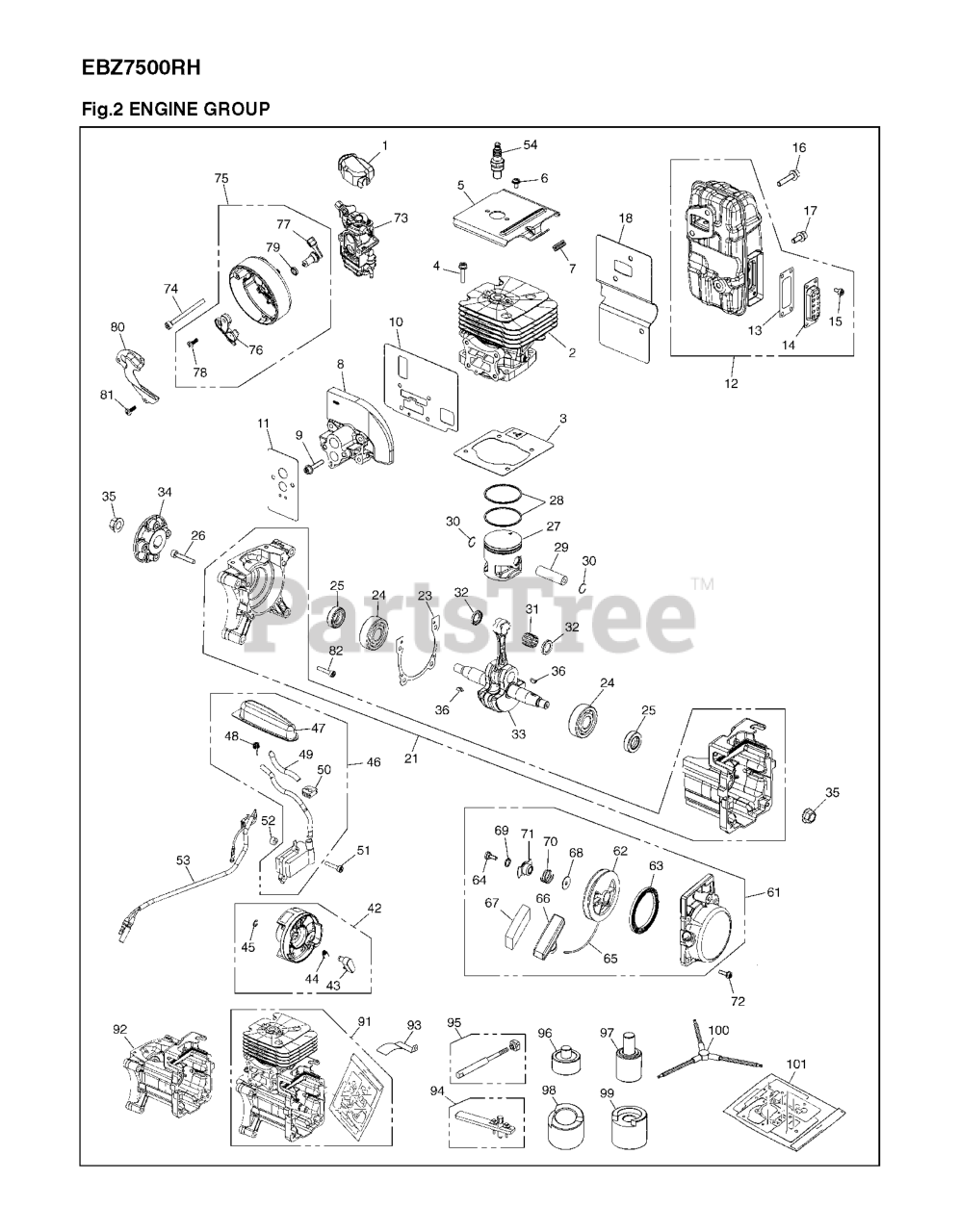

ENGINE Parts Diagram

  • Title

1

RedMax 506744201

COVER

$9.99

$

In Stock, only 2 left!

0

2

RedMax 577257301

CYLINDER ASSY

$87.99

$

Usually ships in 3-10 days

0

3

RedMax 576589401

GASKET

$5.99

$

In Stock, Qty 10

0

4

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

5

RedMax 576589501

PLATE

$8.99

$

Usually ships in 3-10 days

0

6

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 576589601

GROMMET

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 576589701

INSULATOR
(Superseded to 578108301)

$34.99

$

In Stock, Qty 6

0

9

RedMax 576589801

BOLT

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 577357801

GASKET
(Superseded to 577694801)

$13.99

$

In Stock, Qty 15

0

11

RedMax 577089601

GASKET

$3.99

$

In Stock, Qty 20+

0

12

RedMax 577953501

MUFFLER ASSY
(Superseded to 585044201)

Note: . 13 14 15

$100.99

$

Usually ships in 3-10 days

0

13

RedMax 576590501

SPARK ARRESTER
(Superseded to 585044401)

$4.99

$

In Stock, only 3 left!

0

14

RedMax 576590601

DIFFUSOR

$7.49

$

In Stock, only 1 left!

0

15

RedMax 544362701

BOLT

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 576590701

BOLT

$4.99

$

In Stock, only 2 left!

0

17

RedMax 576590801

BOLT

$3.99

$

In Stock, Qty 7

0

18

RedMax 576590901

GASKET

$9.99

$

Usually ships in 3-10 days

0

21

RedMax 576591101

CRANKCASE COMP

$46.99

$

Usually ships in 3-10 days

0

23

RedMax 576591601

GASKET

$6.49

$

In Stock, Qty 9

0

24

RedMax 576696201

BALL BEARING
(Superseded to 521521301)

$18.99

$

Usually ships in 3-10 days

0

25

RedMax 521521901

SEAL
(Superseded to 544258501)

$8.99

$

In Stock, Qty 5

0

26

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

27

RedMax 544259201

PISTON

$51.99

$

Usually ships in 3-10 days

0

28

RedMax 544259301

RING

$11.99

$

In Stock, Qty 9

0

29

RedMax 544259401

PIN

$7.99

$

In Stock, only 4 left!

0

30

RedMax 521531901

SNAP RING

$6.49

$

In Stock, Qty 7

0

31

RedMax 576696401

BEARING
(Superseded to 544259601)

$18.99

$

In Stock, Qty 7

0

32

RedMax 521520501

WASHER

$4.99

$

In Stock, only 1 left!

0

33

RedMax 576591901

CRANKSHAFT COMP

$169.99

$

Usually ships in 3-10 days

0

34

RedMax 576592701

COUPLING

$31.99

$

Usually ships in 3-10 days

0

35

RedMax 513241901

NUT

$6.49

$

In Stock, only 1 left!

0

36

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 576593001

ROTOR ASSY
(Superseded to 587655101)

Note: . 43 44 45

$

$

Not available

43

RedMax 576593201

RATCHET

$6.49

$

Usually ships in 3-10 days

0

44

RedMax 576593301

SPRING

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 510490101

RING

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 576593401

COIL ASSY
(Superseded to 583916701)

Note: . 47 48 49 50

$

$

Not available

47

RedMax 576593601

CAP

$11.99

$

Usually ships in 3-10 days

0

48

RedMax 513243301

SPRING PLUG

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 576593701

TUBE

$3.49

$

Usually ships in 3-10 days

0

50

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

51

RedMax 522654401

BOLT TORX

$2.49

$

In Stock, only 1 left!

0

52

RedMax 521769701

SPACER
(Superseded to 588171401)

$6.49

$

Usually ships in 3-10 days

0

53

RedMax 576593801

CORD

$17.99

$

Usually ships in 3-10 days

0

54

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

61

RedMax 576594001

RECOIL ASSY

Note: . 62 thru 71

$66.99

$

In Stock, Qty 20+

0

62

RedMax 576594201

REEL

$10.99

$

In Stock, only 1 left!

0

63

RedMax 521629601

SPRING

$17.99

$

In Stock, only 3 left!

0

64

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

65

RedMax 577053101

ROPE

$7.99

$

In Stock, only 3 left!

0

66

RedMax 521630001

KNOB
(Superseded to 544261501)

$6.49

$

Usually ships in 3-10 days

0

67

RedMax 521631301

COVER
(Superseded to 544261601)

$3.99

$

Usually ships in 3-10 days

0

68

RedMax 521630801

WASHER
(Superseded to 544261801)

$4.99

$

In Stock, Qty 20+

0

69

RedMax 521631201

WASHER

$4.99

$

Usually ships in 3-10 days

0

70

RedMax 521630601

SPRING FRICTION

$3.99

$

Usually ships in 3-10 days

0

71

RedMax 521630301

PLATE
(Superseded to 544262001)

$10.99

$

Usually ships in 3-10 days

0

72

RedMax 506745601

BOLT

$3.99

$

Usually ships in 3-10 days

0

73

RedMax 544363001

CARB
(Superseded to 581156101)

$87.99

$

In Stock, Qty 7

0

74

RedMax 515390701

BOLT

$4.99

$

Usually ships in 3-10 days

0

75

RedMax 576594501

CUP ASSY

Note: . 76 77 78 79

$34.99

$

In Stock, only 3 left!

0

76

RedMax 576594701

PLATE CHOKE

$6.49

$

In Stock, Qty 5

0

77

RedMax 576594801

LEVER

$5.99

$

In Stock, Qty 20+

0

78

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

79

RedMax 516136001

O-RING

$4.99

$

In Stock, Qty 8

0

80

RedMax 576594901

PLATE
(Superseded to 582900001)

$6.49

$

In Stock, Qty 14

0

81

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

82

RedMax 576564301

BOLT

$4.99

$

In Stock, Qty 8

0

91

RedMax 577083601

SHORT BLOCK
(Superseded to 579655701)

$279.99

$

Usually ships in 3-10 days

0

RedMax 577357801

GASKET
(Superseded to 577694801)

Note: INCLUDES GASKETS

$13.99

$

In Stock, Qty 15

0

RedMax 577089601

GASKET

$3.99

$

In Stock, Qty 20+

0

RedMax 576590901

GASKET

$9.99

$

Usually ships in 3-10 days

0

92

RedMax 577083801

CRANKCASE ASSY

Note: . 21 23 24 25

$120.99

$

In Stock, only 1 left!

0

93

RedMax 513673701

GAUGE

$60.99

$

Usually ships in 3-10 days

0

94

RedMax 577409701

PULLER ASSY

$169.99

$

Usually ships in 3-10 days

0

95

RedMax 516182901

ROD ASSY
(Superseded to 513181201)

$39.99

$

Usually ships in 3-10 days

0

96

RedMax 577409801

BEARING GUIDE

$60.99

$

Usually ships in 3-10 days

0

97

RedMax 577409901

OILSEAL GUIDE

$194.99

$

Usually ships in 3-10 days

0

98

RedMax 577410101

SUPPORT CRANKCASE -S

$78.99

$

Usually ships in 3-10 days

0

99

RedMax 577410001

SUPPORT CRANKCASE - F

$48.99

$

Usually ships in 3-10 days

0

100

RedMax 516974201

WRENCH (RPLS 267096410)
(Superseded to 513795101)

$133.99

$

Usually ships in 3-10 days

0

101

RedMax 577083701

GASKET KIT

Note: . 3 10 11 18 23

$37.99

$

In Stock, Qty 16

0
