EBZ 7500 (966624301) - RedMax Backpack Blower (2010-09) CARBURETOR Parts Diagram

Backpack Blower

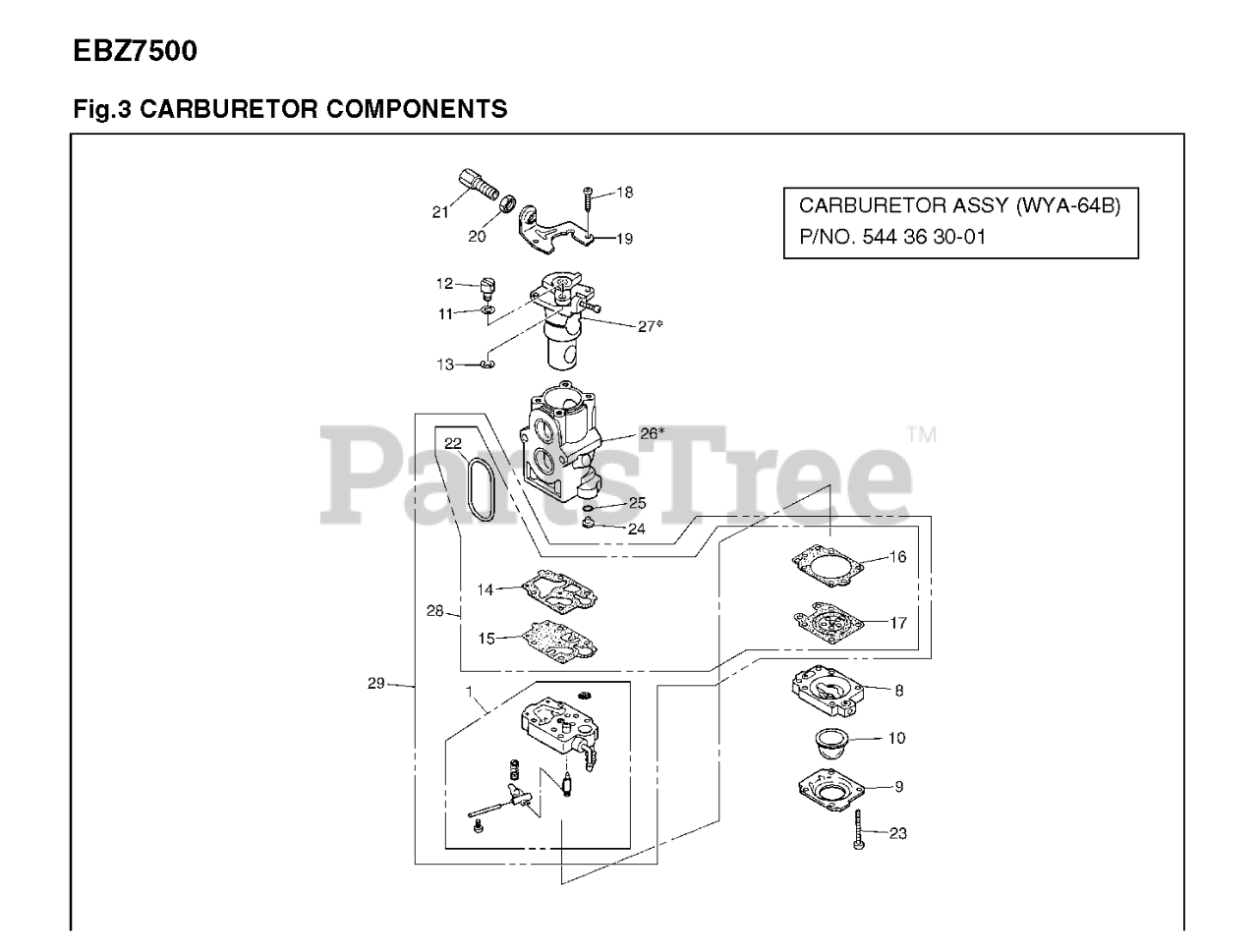

CARBURETOR Parts Diagram

  • Title

1

RedMax 544363501

BODY-A-PUMP

$85.99

$

In Stock, only 1 left!

0

8

RedMax 506740901

BODY

$34.99

$

In Stock, only 1 left!

0

9

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, only 3 left!

0

10

RedMax 505306701

PUMP

$9.49

$

In Stock, Qty 20+

0

11

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

12

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 506745101

GASKET

$10.99

$

In Stock, Qty 6

0

15

RedMax 506689801

DIAPHRAGM

$6.49

$

In Stock, only 4 left!

0

16

RedMax 506740801

GASKET

$11.99

$

In Stock, Qty 7

0

17

RedMax 505306801

DIAPHRAGM

$18.99

$

In Stock, only 1 left!

0

18

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

20

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

In Stock, only 1 left!

0

21

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 3 left!

0

22

RedMax 521631501

RING
(Superseded to 544365101)

$7.99

$

In Stock, only 1 left!

0

23

RedMax 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

24

RedMax 544365301

JET #58

Note: Jet 58

$13.99

$

Usually ships in 3-10 days

0

25

RedMax 505307501

O-RING

$6.49

$

In Stock, Qty 12

0

26

RedMax 544363001

CARB
(Superseded to 581156101)

Note: 26 BODY IS NOT SUPPLIED AS AN INDIVIDUAL PART BUT AS A CARBURETOR ASSY

$113.99

$

In Stock, Qty 20+

0

27

RedMax 544363001

CARB
(Superseded to 581156101)

Note: 27 VALVE ASSY IS NOT SUPPLIED AS AN INDIVIDUAL PART BUT AS A CARBURETOR ASSY

$113.99

$

In Stock, Qty 20+

0

28

RedMax 511459501

GASKET KIT

$53.99

$

Usually ships in 3-10 days

0

29

RedMax 511459601

REBUILD KIT

$120.99

$

In Stock, only 3 left!

0

544363001

RedMax 544363001

CARB
(Superseded to 581156101)

Note: CARBURETOR ASSY (WYA-64B)

$113.99

$

In Stock, Qty 20+

0
