EBZ 7150 - RedMax Backpack Blower (SN: 90700101 & Above) (2009-07) 003 - CARBURETOR COMPONENTS Parts Diagram

Backpack Blower

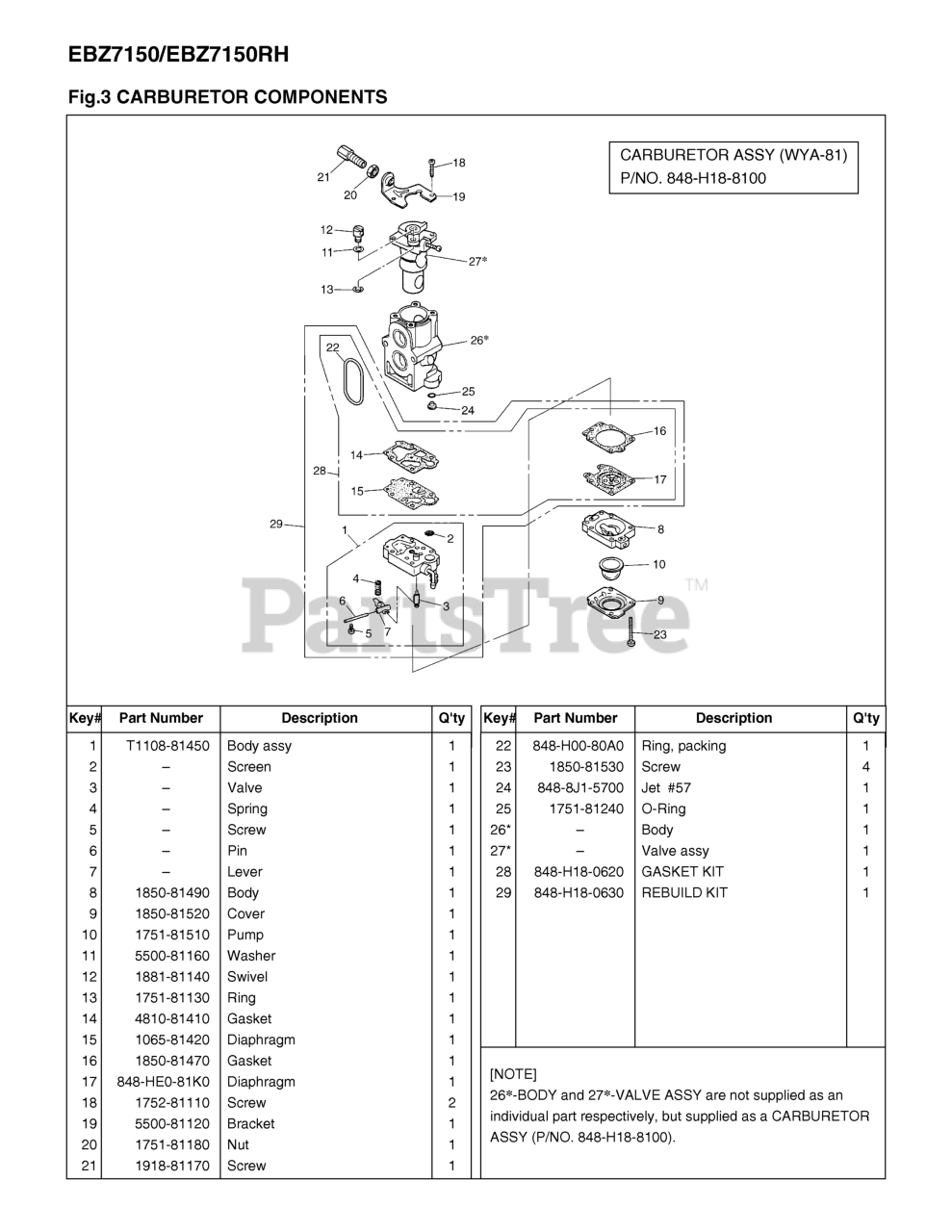

003 - CARBURETOR COMPONENTS Parts Diagram

  • Title
1

RedMax T110881450

BODY ASSY.
(Superseded to 544363501)

$74.99

$

In Stock, only 1 left!

0

2

SCREEN

$

$

Not available

3

VALVE

$

$

Not available

4

SPRING

$

$

Not available

5

SCREW

$

$

Not available

6

PIN

$

$

Not available

7

LEVER

$

$

Not available

8

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

9

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

10

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

12

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 481081410

GASKET, PUMP
(Superseded to 521343801)

$10.99

$

In Stock, only 4 left!

0

15

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

16

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

17

RedMax 848HE081K0

DIAPHRAGM
(Superseded to 505306801)

$18.99

$

Usually ships in 3-10 days

0

18

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

19

$7.42

$

Usually ships in 3-10 days

0

20

RedMax 175181180

USE 028210604
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 191881170

USE T160013170
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

22

RedMax 848H0080A0

RING, PACKING
(Superseded to 521631501)

$7.99

$

In Stock, only 1 left!

0

23

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

24

RedMax 8488J15700

JET No.57
(Superseded to 510925101)

$

$

Not available

25

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

26

RedMax 848H188100

CARBURETOR ASSY
(Superseded to 511460001)

$242.99

$

In Stock, only 1 left!

0

27

RedMax 848H188100

CARBURETOR ASSY
(Superseded to 511460001)

$242.99

$

In Stock, only 1 left!

0

28

RedMax 848H180620

GASKET KIT
(Superseded to 511459501)

$53.99

$

Usually ships in 3-10 days

0

29

RedMax 848H180630

REBUILD KIT
(Superseded to 574147601)

$30.99

$

Usually ships in 3-10 days

0
