EBZ 7100 RH - RedMax Backpack Blower (SN: 70800101 & Above) HANDLE CONTROLS Parts Diagram

Backpack Blower

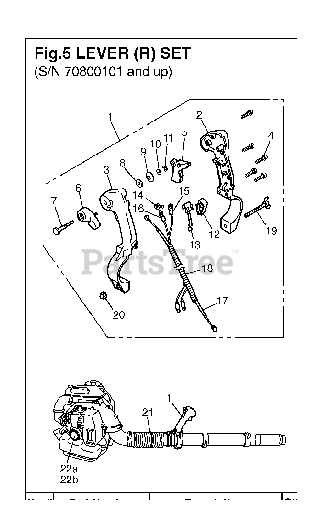

HANDLE CONTROLS Parts Diagram

  • Title

1

RedMax 511926801

LEVER SET

Note: . 2 3 4 5 6-20

$

$

Not available

2

RedMax 511775501

COVER

$13.99

$

Usually ships in 3-10 days

0

3

RedMax 511774801

CASE

$12.99

$

In Stock, only 1 left!

0

4

RedMax 521840701

SCREW 4X14(T)
(Superseded to 512691201)

$2.49

$

In Stock, only 3 left!

0

5

RedMax 512694901

LEVER THROTTLE

$6.49

$

In Stock, Qty 8

0

6

RedMax 521673501

RP_LEVER (RPLS T402325430)

$4.99

$

In Stock, only 3 left!

0

7

RedMax 512695601

SHAFT
(Superseded to 521841001)

$9.99

$

Usually ships in 3-10 days

0

8

RedMax 521841101

WASHER(T)

$3.99

$

In Stock, only 4 left!

0

9

RedMax 521841201

RP_SPRING WASHER

$3.99

$

In Stock, only 4 left!

0

10

RedMax 514154401

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

11

RedMax 521841301

RP_CLIP(T)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 512698001

SWTICH (T)

$6.49

$

In Stock, Qty 8

0

13

RedMax 521841601

SPRING (RPLS T402325720)

$7.99

$

Usually ships in 3-10 days

0

14

RedMax 521841701

RP_SCREW 4X10(T)

$3.99

$

In Stock, only 4 left!

0

15

RedMax 510934201

CORD

$

$

Not available

16

RedMax 510934301

CORD

$

$

Not available

17

RedMax 510939701

CABLE

$

$

Not available

18

RedMax 510922601

TUBE

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 514338401

BOLT WING

$6.49

$

In Stock, only 1 left!

0

20

RedMax 513671401

NUT

$7.49

$

In Stock, Qty 5

0

21

RedMax 544276001

CLAMP

$9.99

$

Usually ships in 3-10 days

0

22A

RedMax 511918901

OBSOLETE - LABEL, RECOIL

$

$

Not available
