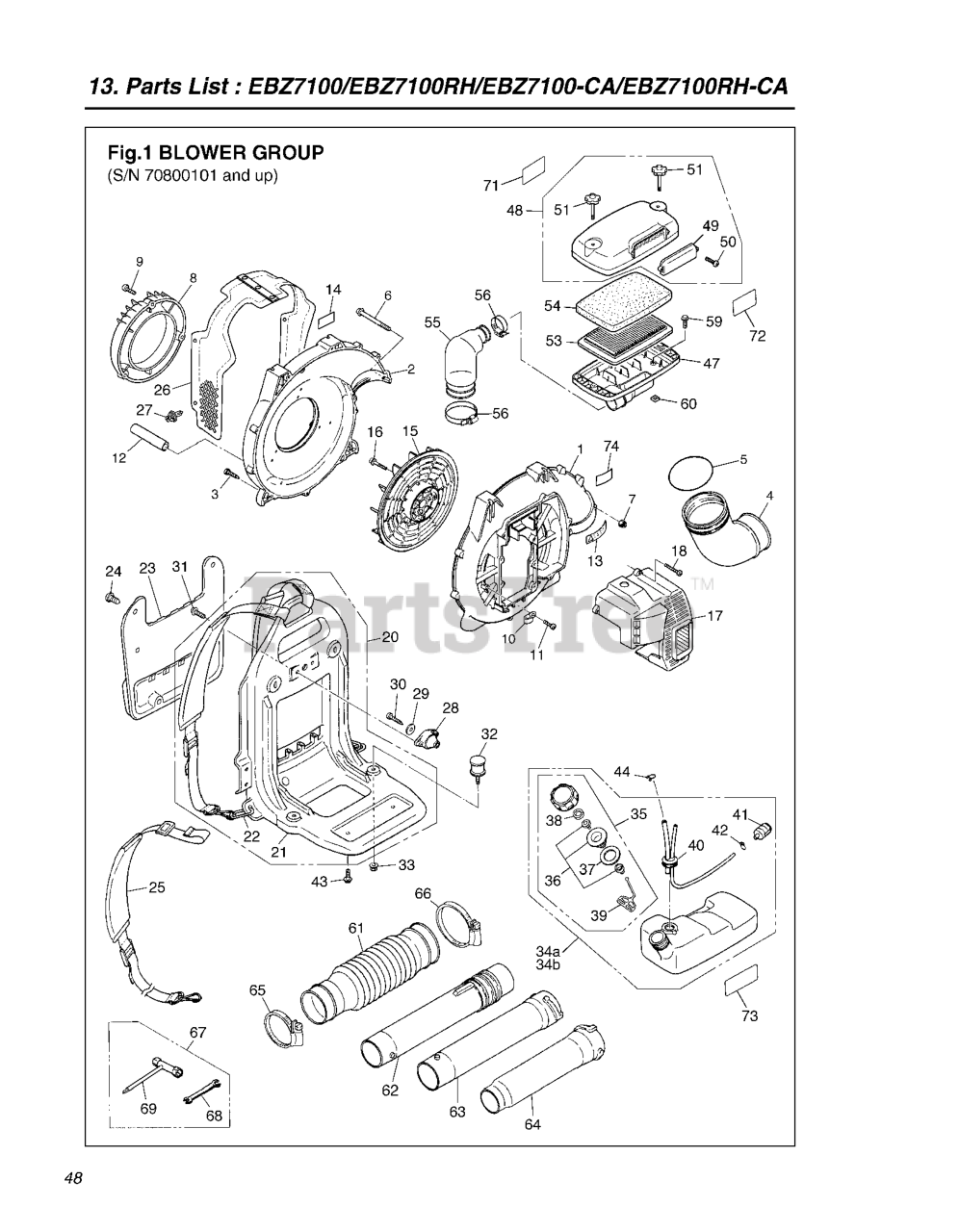

EBZ 7100 - RedMax Backpack Blower (SN: 70800101 & Above) FRAME Parts Diagram

Backpack Blower

FRAME Parts Diagram

  • Title
1

RedMax 511783101

VOLUTE CASE

$136.99

$

Usually ships in 3-10 days

0

2

$78.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 2 left!

0

$31.99

$

Usually ships in 3-10 days

0

5

$4.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 512717201

COVER, INLETEB7001

$

$

Not available

$3.99

$

In Stock, only 2 left!

0

10

$3.49

$

Usually ships in 3-10 days

0

11

$4.99

$

In Stock, only 3 left!

0

12

RedMax 513665201

TUBE
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 513666101

LABEL.CAUTION

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 521832401

LABEL, NET

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 513665901

FAN
(Superseded to 544265001)

$84.99

$

Usually ships in 3-10 days

0

16

RedMax 510906101

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 511782101

ENGINE COVER

$43.99

$

Usually ships in 3-10 days

0

18

$3.99

$

In Stock, only 2 left!

0

20

RedMax 511782401

FRAME ASSY(RPLS -3500,-3501)

Note: . 21 22

$113.99

$

Usually ships in 3-10 days

0

21

RedMax 511782501

FRAME COMP.

$74.99

$

Usually ships in 3-10 days

0

22

RedMax 514331601

RING
(Superseded to 521142801)

$4.99

$

In Stock, Qty 16

0

$37.99

$

In Stock, only 2 left!

0

24

RedMax 505184901

CLIP
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 511709601

BAND ASSY. (BUCKLE 275632910)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 511743601

NET COMP (RPLS-T402325430)

$6.99

$

Usually ships in 3-10 days

0

27

RedMax 505184701

CLIP
(Superseded to 526243901)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$13.99

$

In Stock, only 2 left!

0

29

RedMax 502850501

WASHER
(Superseded to 544270601)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 521517201

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, Qty 5

0

31

$5.99

$

In Stock, Qty 6

0

32

RedMax 513667301

DAMPER
(Superseded to 516874901)

$13.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 1 left!

0

34A

RedMax 521835301

RP_TANK ASSEM(RPLS T401285100)
(Superseded to 570987901)

Note: . 35 36 37-42

$44.99

$

Usually ships in 3-10 days

0

35

RedMax 504117701

ASSY FUEL CAP

Note: . 36 37 38 39

$30.99

$

In Stock, only 3 left!

0

36

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

37

$4.99

$

In Stock, only 2 left!

0

38

$6.49

$

In Stock, only 1 left!

0

39

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 521835501

PIPE COMPLETE
(Superseded to 570988101)

$

$

Not available

41

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

43

$3.49

$

In Stock, Qty 5

0

44

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 511918501

%BODY, CLEANER
(Superseded to 511918801)

$36.99

$

Usually ships in 3-10 days

0

48

RedMax 511913501

COVER ASSY
(Superseded to 521833201)

Note: . 49 50 51

$

$

Not available

49

$6.99

$

Usually ships in 3-10 days

0

50

$3.99

$

In Stock, only 2 left!

0

51

RedMax 544271401

KNOB BOLT

$13.99

$

In Stock, Qty 7

0

53

RedMax 512652001

ELEMENT
(Superseded to 544271501)

$31.99

$

In Stock, Qty 20+

0

54

RedMax 512654101

ELEMENT
(Superseded to 544271601)

$17.99

$

In Stock, Qty 20+

0

$17.99

$

Usually ships in 3-10 days

0

56

RedMax 510925801

CLAMP
(Superseded to 544271901)

$4.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 6

0

$3.99

$

Usually ships in 3-10 days

0

$37.99

$

Usually ships in 3-10 days

0

62

RedMax 505181101

SWIVEL JOINT
(Superseded to 511767301)

$17.99

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-10 days

0

64

RedMax 511785801

PIPE, END (RPLS 848L5C65E0)

$13.99

$

In Stock, only 1 left!

0

65

RedMax 510926001

CLAMP
(Superseded to 544274001)

$6.49

$

Usually ships in 3-10 days

0

66

RedMax 510926101

CLAMP
(Superseded to 544274101)

$4.99

$

In Stock, Qty 19

0

67

RedMax 521532301

TOOL-SET

Note: . 68 69

$7.99

$

Usually ships in 3-10 days

0

68

$4.99

$

In Stock, Qty 10

0

69

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 2 left!

0

71

$9.49

$

Usually ships in 3-10 days

0

72

RedMax 511924001

OBSOLETE - LABEL, CLEANER

$3.34

$

Usually ships in 3-10 days

0

73

RedMax 511926501

OBSOLETE - LABEL, TANK

$4.46

$

Usually ships in 3-10 days

0

$

$

Not available
