EBZ 7001 - RedMax Backpack Blower (SN: 60600101 & Above) (2006-05) 003 - BLOWER GROUP Parts Diagram

Backpack Blower

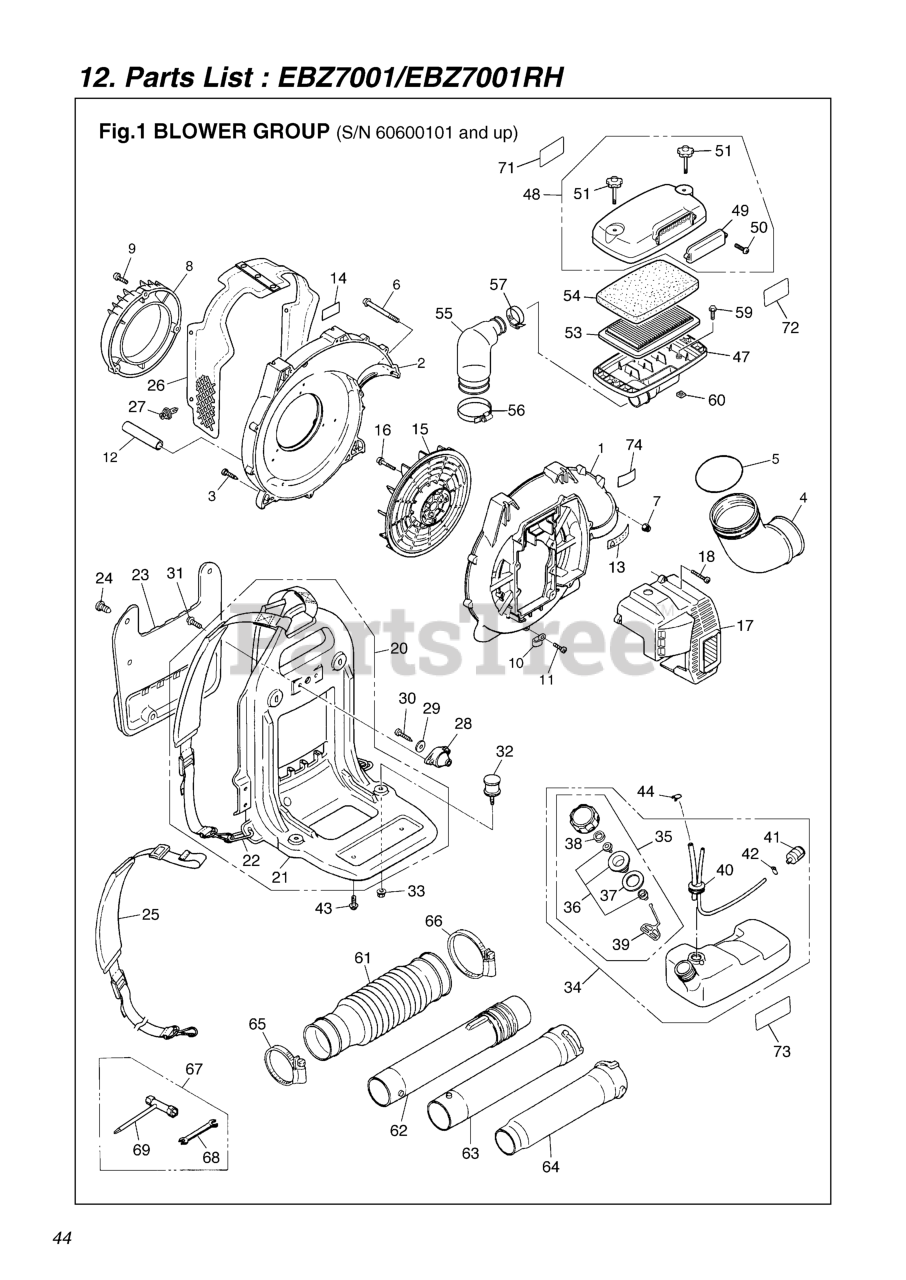

003 - BLOWER GROUP Parts Diagram

  • Title

1

RedMax 848L5C55A2

VOLUTE CASE
(Superseded to 511783101)

$136.99

$

Usually ships in 3-10 days

0

2

RedMax 848L5C55B5

VOLUTE COVER
(Superseded to 511785201)

$78.99

$

Usually ships in 3-10 days

0

3

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 8

0

4

RedMax 848L5C55C0

ELBOW
(Superseded to 511785401)

$31.99

$

Usually ships in 3-10 days

0

5

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, only 2 left!

0

6

RedMax T496057030

SCREW TORX
(Superseded to 544264601)

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

8

RedMax T403031310

COVER, INLET
(Superseded to 512717201)

$

$

Not available

9

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 8

0

10

RedMax 8488K40010

CLAMP (RPLS 1140-72231)
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax T497051410

SCREW

$

$

Not available

12

RedMax 275031290

TUBE (RPLS. 07270-01507)
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 275031911

LABEL, CAUTION (RPLS -31910)
(Superseded to 516873201)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax T401232610

LABEL, NET
(Superseded to 521832401)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 275031510

FAN
(Superseded to 544265001)

$84.99

$

Usually ships in 3-10 days

0

16

RedMax 8488163500

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 848L5C31A2

ENGINE COVER
(Superseded to 511782101)

$43.99

$

Usually ships in 3-10 days

0

18

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 8

0

20

RedMax 848L5C3500

FRAME ASSY.
(Superseded to 511782401)

$113.99

$

Usually ships in 3-10 days

0

21

RedMax 848L5C3510

FRAME COMP
(Superseded to 511782501)

$74.99

$

Usually ships in 3-10 days

0

22

RedMax 349021121

RING (REPLACES -21120)
(Superseded to 521142801)

$4.99

$

In Stock, Qty 14

0

23

RedMax 848L5C35C0

PAD
(Superseded to 511782601)

$37.99

$

Usually ships in 3-10 days

0

24

RedMax 349521320

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 275632300

BAND ASSY (RPLS 2750- )
(Superseded to 511709601)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax T401232500

NET COMPLETE
(Superseded to 521832301)

$

$

Not available

27

RedMax 148074710

CLIP
(Superseded to 516342801)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 275032510

DAMPER, UPPER
(Superseded to 513666701)

$13.99

$

In Stock, only 2 left!

0

29

RedMax 8488705030

WASHER

$1.36

$

Usually ships in 3-10 days

0

30

RedMax 8488154000

BOLT, TORX
(Superseded to 510905401)

$4.99

$

In Stock, only 4 left!

0

31

RedMax T496051631

SCREW TORX
(Superseded to 544270801)

$5.99

$

In Stock, only 3 left!

0

32

RedMax 275032610

DAMPER, LOWER
(Superseded to 516875701)

$

$

Not available

33

RedMax 275032620

NUT, M6
(Superseded to 513667501)

$4.99

$

In Stock, only 1 left!

0

34

RedMax T401285101

TANK ASSY (RPLS. -85100)
(Superseded to 570987901)

$44.99

$

Usually ships in 3-10 days

0

35

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 2 left!

0

36

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

39

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

40

RedMax T401285300

PIPE COMPLETE
(Superseded to 521835501)

$

$

Not available

41

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

43

RedMax T496051231

SCREW TORX
(Superseded to 544273101)

$3.49

$

In Stock, Qty 5

0

44

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

47

RedMax 848L5383A2

BODY (RPLS. T4012-82111)
(Superseded to 544271101)

$40.99

$

Usually ships in 3-10 days

0

48

RedMax 848L5C8320

COVER ASSY
(Superseded to 511785901)

$78.99

$

Usually ships in 3-10 days

0

49

RedMax T401282220

COVER
(Superseded to 544271301)

$6.99

$

Usually ships in 3-10 days

0

50

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 8

0

51

RedMax 848L5383J1

KNOB BOLT
(Superseded to 544271401)

$13.99

$

In Stock, Qty 7

0

53

RedMax T401282311

ELEMENT (PAPER)
(Superseded to 544271501)

$31.99

$

In Stock, Qty 20+

0

54

RedMax T401282321

ELEMENT (FOAM) (RPLS -82320)
(Superseded to 544271601)

$17.99

$

In Stock, Qty 7

0

55

RedMax 848L5C83P1

HOSE
(Superseded to 544271701)

$

$

Not available

56

RedMax 8488K40000

CLAMP
(Superseded to 544271901)

$4.99

$

In Stock, only 2 left!

0

57

RedMax 8488K40040

CLAMP
(Superseded to 510926201)

$

$

Not available

59

RedMax T495052030

BOLT (USE 848-815-2000)
(Superseded to 521516501)

$6.49

$

In Stock, only 3 left!

0

60

RedMax T401282710

NUT
(Superseded to 544272101)

$3.99

$

Usually ships in 3-10 days

0

61

RedMax 848L5865A1

FLEX HOSE
(Superseded to 505180901)

$37.99

$

Usually ships in 3-10 days

0

62

RedMax 848L586510

SWIVEL JOINT
(Superseded to 511767301)

$17.99

$

Usually ships in 3-10 days

0

63

RedMax 848L5865D0

PIPE, STRAIGHT
(Superseded to 511768201)

$18.99

$

In Stock, only 2 left!

0

64

RedMax 848L5C65E0

PIPE, END
(Superseded to 511785801)

$13.99

$

In Stock, only 1 left!

0

65

RedMax 8488K40020

CLAMP
(Superseded to 544274001)

$6.49

$

Usually ships in 3-10 days

0

66

RedMax 8488K40030

CLAMP
(Superseded to 544274101)

$4.99

$

In Stock, Qty 17

0

67

RedMax 8488U00020

TOOL-SET
(Superseded to 521532301)

$7.99

$

Usually ships in 3-10 days

0

68

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

69

RedMax 8488U10020

SOCKET

$4.04

$

Usually ships in 3-10 days

0

71

RedMax T401282280

LABEL
(Superseded to 512651301)

$9.49

$

Usually ships in 3-10 days

0

72

RedMax 848L5C90R0

LABEL, EBZ7001

$

$

Not available

73

RedMax 848L5C90S2

LABEL
(Superseded to 511788701)

$6.49

$

Usually ships in 3-10 days

0

74

RedMax 8488X50770

LABEL, SOUND

$

$

Not available
