EBZ 6500 RH - RedMax Backpack Blower (2011-09) ENGINE Parts Diagram

Backpack Blower

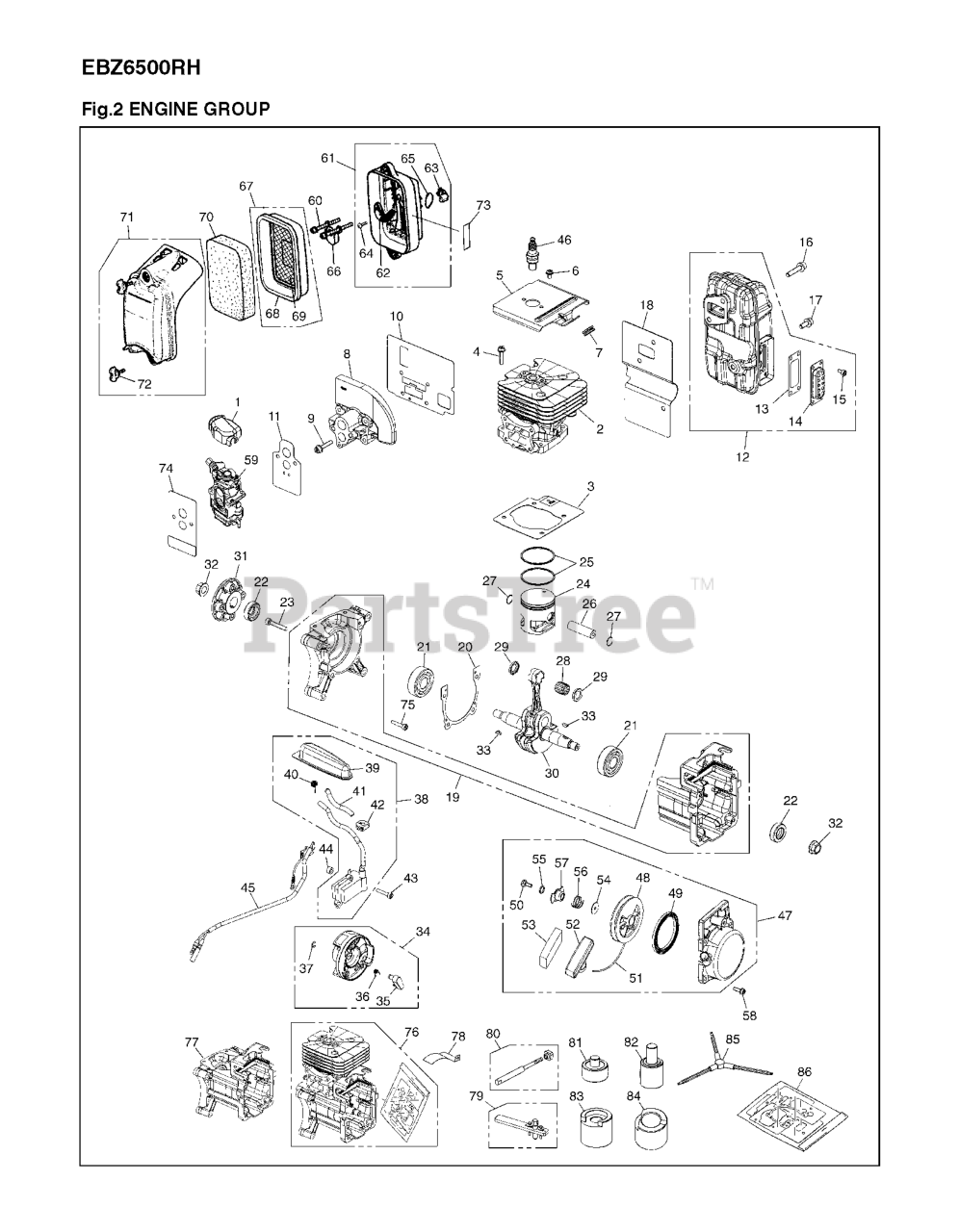

ENGINE Parts Diagram

  • Title

1

RedMax 506744201

COVER

$9.99

$

Usually ships in 3-10 days

0

2

RedMax 577257301

CYLINDER ASSY

$87.99

$

Usually ships in 3-10 days

0

3

RedMax 576589401

GASKET

$5.99

$

In Stock, Qty 12

0

4

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

5

RedMax 576589501

PLATE

$8.99

$

Usually ships in 3-10 days

0

6

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 576589601

GROMMET

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 578108301

INSULATOR

$34.99

$

In Stock, Qty 5

0

9

RedMax 576589801

BOLT

$3.99

$

In Stock, only 3 left!

0

10

RedMax 577694801

GASKET

$13.99

$

In Stock, Qty 19

0

11

RedMax 577089601

GASKET

$3.99

$

In Stock, Qty 20+

0

12

RedMax 577953501

MUFFLER ASSY
(Superseded to 585044201)

Note: . 13 14 15

$100.99

$

Usually ships in 3-10 days

0

13

RedMax 576590501

SPARK ARRESTER
(Superseded to 585044401)

$4.99

$

In Stock, only 3 left!

0

14

RedMax 576590601

DIFFUSOR

$7.49

$

In Stock, only 1 left!

0

15

RedMax 544362701

BOLT

$3.49

$

In Stock, Qty 10

0

16

RedMax 576590701

BOLT

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 576590801

BOLT

$3.99

$

In Stock, only 2 left!

0

18

RedMax 576590901

GASKET

$9.99

$

Usually ships in 3-10 days

0

19

RedMax 577067401

CRANKCASE COMP.

$125.99

$

Usually ships in 3-10 days

0

20

RedMax 576591601

GASKET

$6.49

$

In Stock, only 1 left!

0

21

RedMax 521521301

BALL BEARING

$18.99

$

In Stock, Qty 10

0

22

RedMax 521521901

SEAL
(Superseded to 544258501)

$8.99

$

In Stock, Qty 9

0

23

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

24

RedMax 544259201

PISTON

$51.99

$

In Stock, Qty 7

0

25

RedMax 544259301

RING

$11.99

$

In Stock, Qty 20+

0

26

RedMax 544259401

PIN

$7.99

$

In Stock, only 3 left!

0

27

RedMax 521531901

SNAP RING

$6.49

$

In Stock, Qty 5

0

28

RedMax 576696401

BEARING
(Superseded to 544259601)

$18.99

$

In Stock, Qty 5

0

29

RedMax 521520501

WASHER

$4.99

$

In Stock, only 1 left!

0

30

RedMax 577143301

CRANKSHAFT COMP.

$119.99

$

Usually ships in 3-10 days

0

31

RedMax 577144301

COUPLING

$37.99

$

Usually ships in 3-10 days

0

32

RedMax 513241901

NUT

$6.49

$

In Stock, only 3 left!

0

33

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 576593001

ROTOR ASSY
(Superseded to 587655101)

Note: . 35 36 37

$

$

Not available

35

RedMax 576593201

RATCHET

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 576593301

SPRING

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 510490101

RING

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 577969801

COIL COMPLETE
(Superseded to 583917301)

Note: . 39 40 41 42

$

$

Not available

39

RedMax 576593601

CAP

$11.99

$

Usually ships in 3-10 days

0

40

RedMax 513243301

SPRING PLUG

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 578258401

TUBE

$

$

Not available

42

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 522654401

BOLT TORX

$2.49

$

In Stock, only 1 left!

0

44

RedMax 521769701

SPACER
(Superseded to 588171401)

$6.49

$

Usually ships in 3-10 days

0

45

RedMax 576593801

CORD

$17.99

$

Usually ships in 3-10 days

0

46

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

47

RedMax 576594001

RECOIL ASSY

Note: . 48 THRU 57

$66.99

$

In Stock, Qty 20+

0

48

RedMax 576594201

REEL

$10.99

$

In Stock, Qty 14

0

49

RedMax 521629601

SPRING

$17.99

$

In Stock, Qty 8

0

50

RedMax 515367101

SCREW

$4.99

$

In Stock, only 2 left!

0

51

RedMax 577053101

ROPE

$7.99

$

In Stock, only 3 left!

0

52

RedMax 521630001

KNOB
(Superseded to 544261501)

$6.49

$

Usually ships in 3-10 days

0

53

RedMax 521631301

COVER
(Superseded to 544261601)

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 521630801

WASHER
(Superseded to 544261801)

$4.99

$

In Stock, Qty 20+

0

55

RedMax 521631201

WASHER

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 521630601

SPRING FRICTION

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 521630301

PLATE
(Superseded to 544262001)

$10.99

$

Usually ships in 3-10 days

0

58

RedMax 506745601

BOLT

$3.99

$

Usually ships in 3-10 days

0

59

RedMax 577144601

CARBURETOR

$104.99

$

Usually ships in 3-10 days

0

60

RedMax 502844601

SCREW

$4.99

$

Usually ships in 3-10 days

0

61

RedMax 502844902

AIR FILTER HOLDER ASSY

Note: . 62 THRU 65

$31.99

$

In Stock, only 4 left!

0

62

RedMax 512259601

PLATE
(Superseded to 521740401)

$4.99

$

In Stock, only 2 left!

0

63

RedMax 521740501

LEVER

$4.99

$

In Stock, only 1 left!

0

64

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

65

RedMax 512260001

O-RING

$4.99

$

In Stock, only 1 left!

0

66

RedMax 502844701

PLATE

$4.99

$

Usually ships in 3-10 days

0

67

RedMax 502844501

GASKET

Note: . 68 69

$26.99

$

In Stock, only 1 left!

0

68

RedMax 512260301

PACKING

$17.99

$

Usually ships in 3-10 days

0

69

RedMax 512260401

SCREEN
(Superseded to 521741401)

$4.99

$

In Stock, Qty 5

0

70

RedMax 502844401

AIR FILTER

$10.99

$

In Stock, Qty 13

0

71

RedMax 511496101

COVER ASSY.

Note: . 72

$24.99

$

In Stock, only 2 left!

0

72

RedMax 506673901

KNOB

$3.49

$

In Stock, only 4 left!

0

73

RedMax 521740201

LABEL,CHOKE

$3.99

$

In Stock, Qty 10

0

74

RedMax 578274001

PLATE

$24.99

$

Usually ships in 3-10 days

0

75

RedMax 576564301

BOLT

$4.99

$

In Stock, only 4 left!

0

76

RedMax 578031701

SHORT BLOCK
(Superseded to 579655601)

Note: . 10 11 18

$364.99

$

Usually ships in 3-10 days

0

77

RedMax 578032101

CRANKCASE ASSY
(Superseded to 577067401)

Note: . 19 20 21 22

$125.99

$

Usually ships in 3-10 days

0

78

RedMax 513673701

GAUGE

$60.99

$

Usually ships in 3-10 days

0

79

RedMax 577409701

PULLER ASSY

$169.99

$

Usually ships in 3-10 days

0

80

RedMax 516182901

ROD ASSY
(Superseded to 513181201)

$39.99

$

Usually ships in 3-10 days

0

81

RedMax 577409801

BEARING GUIDE

$60.99

$

Usually ships in 3-10 days

0

82

RedMax 577409901

OILSEAL GUIDE

$194.99

$

Usually ships in 3-10 days

0

83

RedMax 577410001

SUPPORT CRANKCASE - F

$48.99

$

Usually ships in 3-10 days

0

84

RedMax 577410101

SUPPORT CRANKCASE -S

$78.99

$

Usually ships in 3-10 days

0

85

RedMax 516974201

WRENCH (RPLS 267096410)
(Superseded to 513795101)

$133.99

$

Usually ships in 3-10 days

0

86

RedMax 578032001

GASKET KIT

Note: . 3 10 11 18 20

$20.99

$

Usually ships in 3-10 days

0
