EBZ 5150 RH (966358401) - RedMax Backpack Blower (2012-08) HOUSING Parts Diagram

Backpack Blower

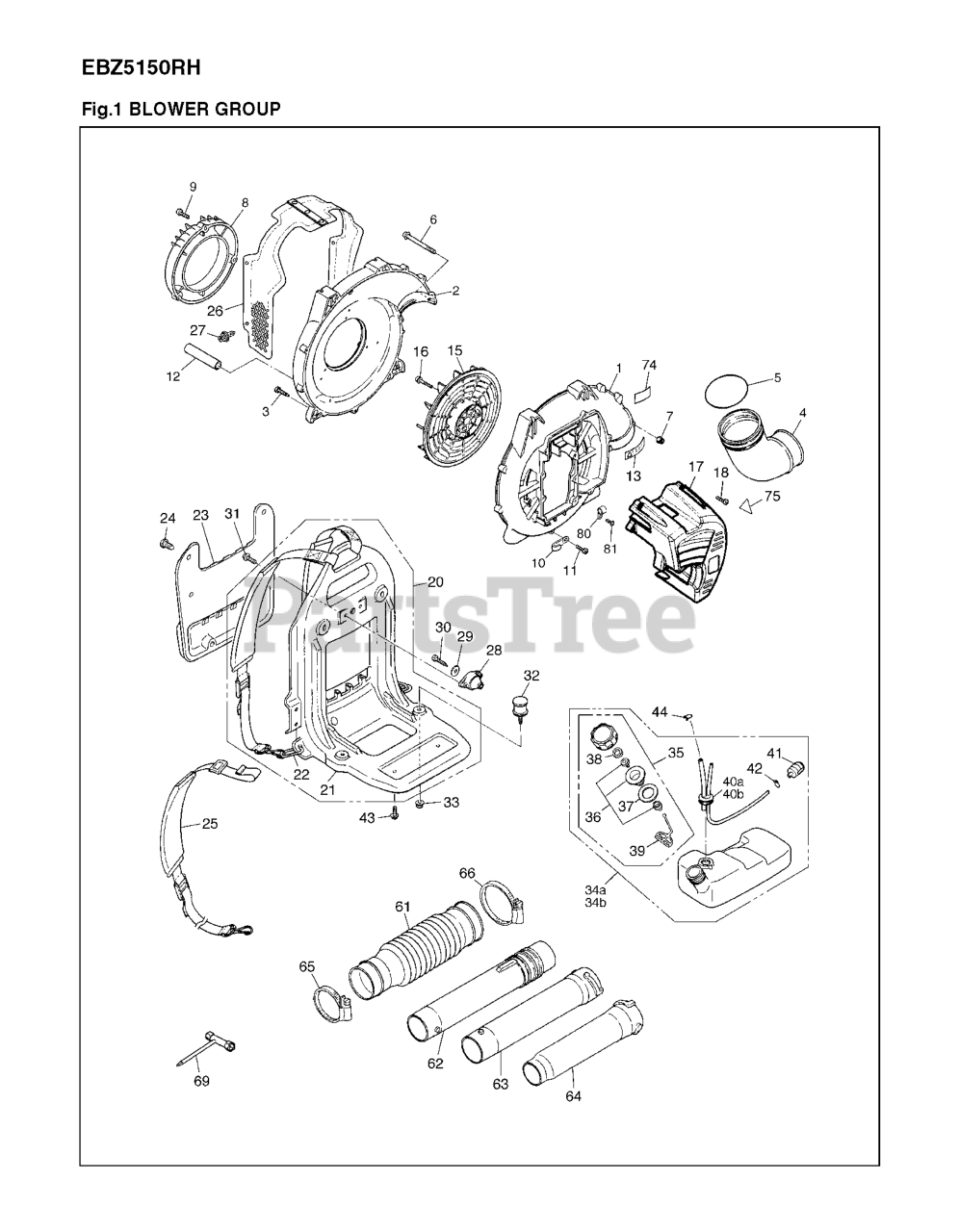

HOUSING Parts Diagram

  • Title

2

RedMax 511727901

VOLUTE COVER

$51.99

$

Usually ships in 3-10 days

0

1

RedMax 574769301

VOLUTE CASE

$79.99

$

Usually ships in 3-10 days

0

3

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

4

RedMax 502842501

PIPE BEND
(Superseded to 577078701)

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 516135401

O-RING

$4.99

$

In Stock, only 2 left!

0

6

RedMax 544264601

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 514183901

NUT

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 511728001

FUNNEL

$10.99

$

Usually ships in 3-10 days

0

9

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

10

RedMax 513671901

CLAMP

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0

12

RedMax 513665201

TUBE
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 529266201

LABEL,CAUTION
(Superseded to 513666101)

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 502850201

FAN

$56.99

$

Usually ships in 3-10 days

0

16

RedMax 510906101

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 511726901

ENGINE COVER

$31.99

$

Usually ships in 3-10 days

0

18

RedMax 512848101

SCREW

$3.99

$

In Stock, only 2 left!

0

20

RedMax 511782401

FRAME ASSY(RPLS -3500,-3501)

Note: INCL 21 22

$113.99

$

Usually ships in 3-10 days

0

21

RedMax 511782501

FRAME COMP.

$74.99

$

Usually ships in 3-10 days

0

22

RedMax 514331601

RING
(Superseded to 521142801)

$4.99

$

In Stock, Qty 16

0

23

RedMax 511782601

PAD

$37.99

$

In Stock, only 2 left!

0

24

RedMax 526476701

CLIP
(Superseded to 505184901)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 511709601

BAND ASSY. (BUCKLE 275632910)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 511743601

NET COMP (RPLS-T402325430)

$6.99

$

Usually ships in 3-10 days

0

27

RedMax 526243901

CLIP
(Superseded to 505184701)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$13.99

$

In Stock, only 2 left!

0

29

RedMax 502850501

WASHER
(Superseded to 544270601)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 521863801

SCREW (RPLS T497054010)

$4.99

$

Usually ships in 3-10 days

0

31

RedMax 544270801

SCREW

$5.99

$

In Stock, Qty 6

0

32

RedMax 513667301

DAMPER
(Superseded to 516874901)

$13.99

$

In Stock, only 2 left!

0

33

RedMax 513667501

NUT

$4.99

$

In Stock, only 1 left!

0

34

RedMax 528913501

TANK ASSY
(Superseded to 579139101)

Note: UP TO SN11299999

$96.99

$

Usually ships in 3-10 days

0

34

RedMax 579139101

TANK ASSY

Note: FROM SN20100001

$96.99

$

Usually ships in 3-10 days

0

35

RedMax 504117701

ASSY FUEL CAP

Note: INCL 36 THRU 39

$30.99

$

In Stock, only 3 left!

0

36

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

38

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

39

RedMax 504117901

STOPPER

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 570988101

PIPE COMPLETE

Note: UP TO SN11299999

$

$

Not available

40

RedMax 579138302

PIPE COMPLETE
(Superseded to 570988101)

Note: FROM SN20100001

$

$

Not available

41

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

43

RedMax 544273101

SCREW

$3.49

$

In Stock, Qty 5

0

44

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

61

RedMax 502842601

BELLOWS
(Superseded to 577078801)

$17.99

$

In Stock, Qty 7

0

62

RedMax 504064801

SWIVEL JOINT
(Superseded to 577078901)

$11.99

$

In Stock, Qty 11

0

63

RedMax 504064701

PIPE STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 5

0

64

RedMax 513689401

PIPE,END
(Superseded to 516898001)

$14.99

$

In Stock, only 3 left!

0

65

RedMax 504064901

CLAMP

$4.99

$

In Stock, only 2 left!

0

66

RedMax 544274101

CLAMP(F115)

$4.99

$

In Stock, Qty 19

0

69

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 2 left!

0

74

RedMax 510963801

$

$

Not available

75

RedMax 521553601

LABEL

$3.99

$

In Stock, Qty 10

0

80

RedMax 504122301

CLAMP

$3.49

$

In Stock, only 3 left!

0

81

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0
