EBZ 5150 (966358301) - RedMax Backpack Blower (2011-01) CARBURETOR Parts Diagram

Backpack Blower

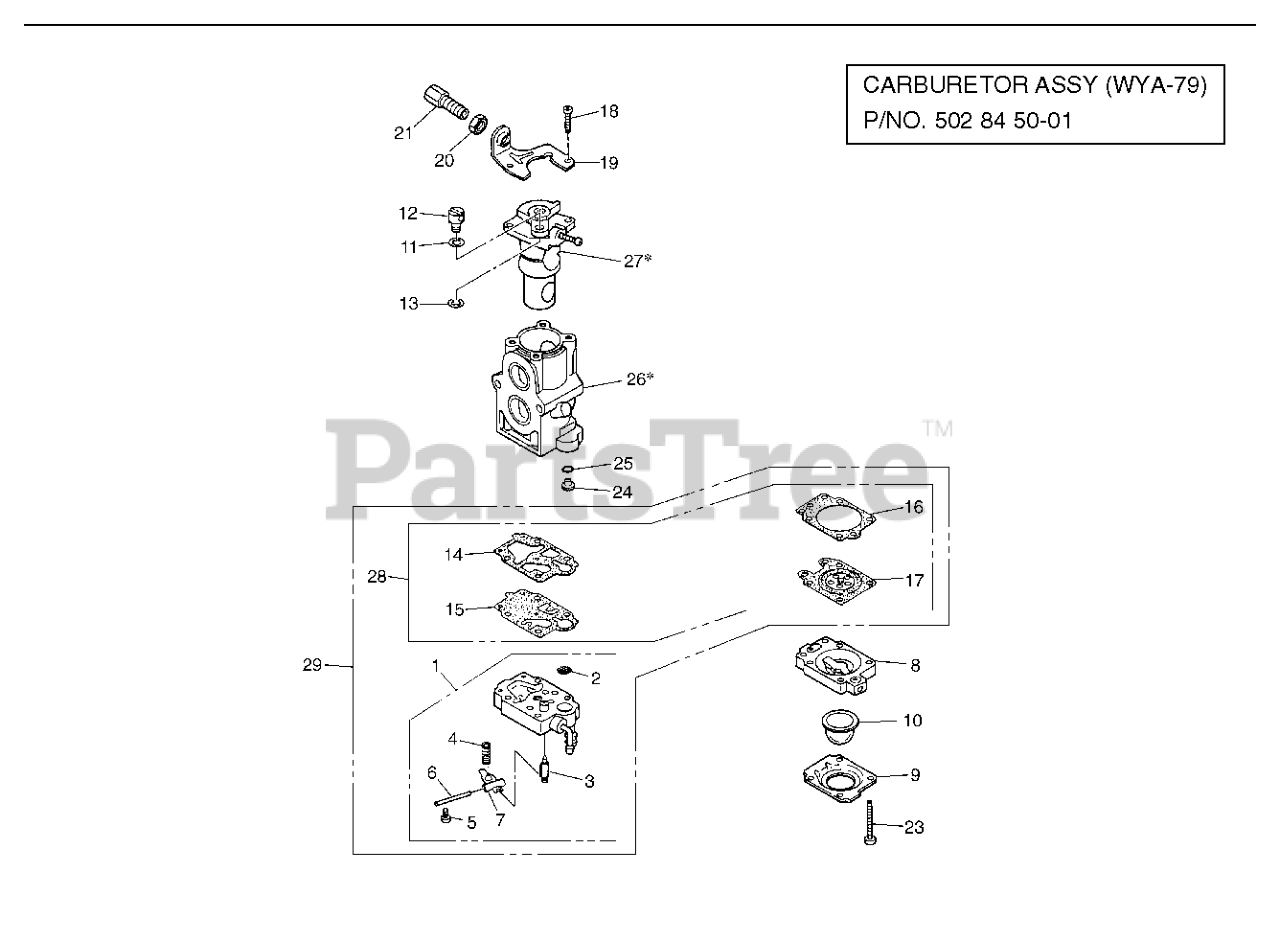

CARBURETOR Parts Diagram

  • Title

1

RedMax 544363501

BODY-A-PUMP

Note: . 2 THRU 7

$74.99

$

Usually ships in 3-10 days

0

8

RedMax 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

9

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

10

RedMax 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

12

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 506738601

RING
(Superseded to 516523601)

Note: . 14 THRU 17

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

20

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

23

RedMax 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

24

RedMax 512259001

JET (RPLS T104881250)

$15.99

$

Usually ships in 3-10 days

0

25

RedMax 505307501

O-RING

$6.49

$

In Stock, only 1 left!

0

26

RedMax 502845001

CARBURETOR

Note: ASSY ONLY

$145.99

$

In Stock, only 1 left!

0

27

RedMax 502845001

CARBURETOR

Note: ASSY ONLY

$145.99

$

In Stock, only 1 left!

0

28

RedMax 511494901

GASKET KIT

$39.99

$

Usually ships in 3-10 days

0

29

RedMax 511495001

REBUILD KIT

$11.99

$

Usually ships in 3-10 days

0
