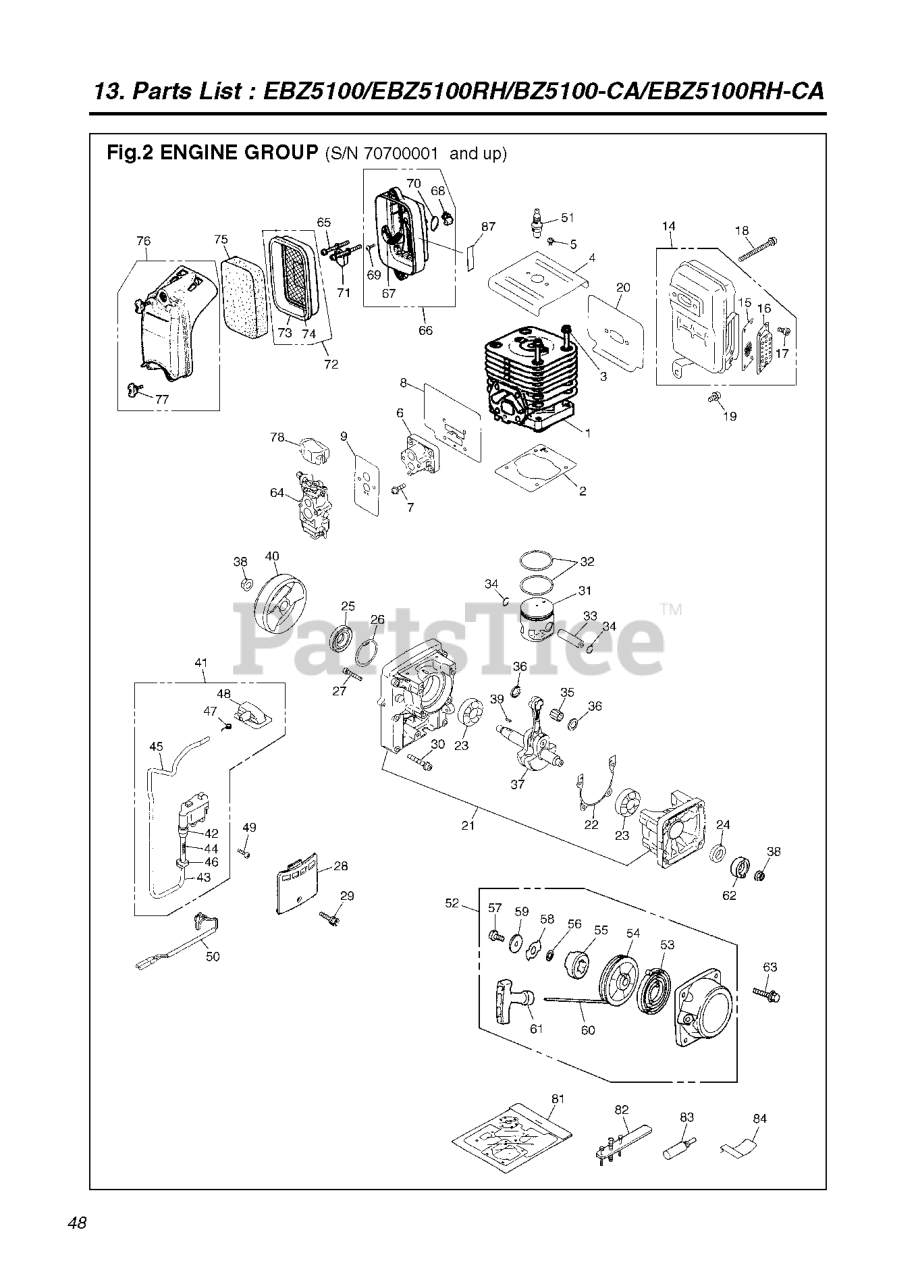

EBZ 5100 - RedMax Backpack Blower (SN: 70700001 & Above) ENGINE Parts Diagram

Backpack Blower

ENGINE Parts Diagram

  • Title

1

RedMax 502848701

CYLINDER

$45.99

$

In Stock, Qty 5

0

2

RedMax 502848801

GASKET

$6.99

$

In Stock, Qty 5

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 502846501

CYLINDER COVER

$7.99

$

Usually ships in 3-10 days

0

5

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 502845401

INSULATION

$26.99

$

Usually ships in 3-10 days

0

7

RedMax 521516501

BOLT

$6.49

$

Usually ships in 3-10 days

0

8

RedMax 502845501

GASKET,INSULATOR

$11.99

$

In Stock, only 1 left!

0

9

RedMax 502845301

GASKET

$6.49

$

In Stock, Qty 5

0

14

RedMax 502845701

MUFFLER ASSY

Note: . 15 16 17

$74.99

$

Usually ships in 3-10 days

0

15

RedMax 502845801

SPARK ARRESTOR SCREEN

$7.99

$

Usually ships in 3-10 days

0

16

RedMax 502845901

EXHAUST DUCT

$4.99

$

In Stock, Qty 11

0

17

RedMax 544362701

BOLT

$3.49

$

In Stock, Qty 10

0

18

RedMax 544257901

BOLT

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 544258001

RP_BOLT

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 502845601

GASKET
(Superseded to 511496901)

$6.49

$

In Stock, only 2 left!

0

21

RedMax 502848901

CRANKCASE

$68.99

$

In Stock, only 1 left!

0

22

RedMax 502849401

GASKET

$6.49

$

In Stock, Qty 8

0

23

RedMax 502849101

BEARING

$24.99

$

In Stock, only 2 left!

0

24

RedMax 502849201

SEALING

$10.99

$

In Stock, only 2 left!

0

25

RedMax 502849001

SEALING

$9.49

$

In Stock, only 2 left!

0

26

RedMax 502849301

SNAP RING

$3.49

$

In Stock, only 3 left!

0

27

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

28

RedMax 513663901

COVER

$9.49

$

Usually ships in 3-10 days

0

29

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 17

0

30

RedMax 521517601

BOLT
(Superseded to 576810401)

$4.99

$

In Stock, only 4 left!

0

31

RedMax 502849601

PISTON

$34.99

$

In Stock, only 2 left!

0

32

RedMax 502849501

PISTON RING

$10.99

$

In Stock, only 3 left!

0

33

RedMax 510916901

PISTON PIN

$9.99

$

In Stock, Qty 10

0

34

RedMax 502849801

SNAP RING

$3.49

$

In Stock, only 1 left!

0

35

RedMax 502849901

BEARING

$12.99

$

In Stock, only 2 left!

0

36

RedMax 502850001

WASHER

$5.99

$

In Stock, Qty 7

0

37

RedMax 502850101

CRANKSHAFT

$136.99

$

Usually ships in 3-10 days

0

38

RedMax 513241901

NUT

$6.49

$

In Stock, only 3 left!

0

39

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 511493101

ROTOR

$60.99

$

Usually ships in 3-10 days

0

41

RedMax 511495801

%COIL ASSY
(Superseded to 511497001)

Note: . 42 43 44-48

$121.99

$

Usually ships in 3-10 days

0

42

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 511495901

$

$

Not available

44

RedMax 511493401

TUBE-B

$

$

Not available

45

RedMax 544362901

RP TUBE-A

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 515415201

SPRING

$4.99

$

In Stock, only 2 left!

0

48

RedMax 512258501

CAP

$12.99

$

Usually ships in 3-10 days

0

49

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 17

0

50

RedMax 512258401

CORD-COMP

$9.99

$

In Stock, only 1 left!

0

51

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

52

RedMax 502843101

STARTER ASSY

$43.99

$

Usually ships in 3-10 days

0

53

RedMax 502843301

SPRING

$11.99

$

In Stock, only 2 left!

0

54

RedMax 502843401

STARTER PULLEY

$17.99

$

In Stock, only 1 left!

0

55

RedMax 504554801

STARTER PAWL

$10.99

$

In Stock, only 1 left!

0

56

RedMax 502843601

WASHER

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 502843801

SCREW

$3.49

$

Usually ships in 3-10 days

0

58

RedMax 504554901

RETAINER
(Superseded to 516348601)

$

$

Not available

59

RedMax 502843701

WASHER
(Superseded to 516348701)

$

$

Not available

60

RedMax 502843501

CHORD
(Superseded to 516316801)

$

$

Not available

61

RedMax 502843201

KNOB

$11.99

$

Usually ships in 3-10 days

0

62

RedMax 513288801

PULLEY
(Superseded to 516348901)

$11.99

$

In Stock, only 2 left!

0

63

RedMax 506745601

BOLT

$3.99

$

Usually ships in 3-10 days

0

64

RedMax 502845001

CARBURETOR

$145.99

$

In Stock, only 1 left!

0

65

RedMax 502844601

SCREW

$4.99

$

Usually ships in 3-10 days

0

66

RedMax 502844901

CARBURETOR BODY
(Superseded to 502844902)

Note: . 67 68 69 70

$31.99

$

In Stock, only 4 left!

0

67

RedMax 512259601

PLATE
(Superseded to 521740401)

$4.99

$

In Stock, only 2 left!

0

68

RedMax 521740501

LEVER

$4.99

$

In Stock, only 1 left!

0

69

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

70

RedMax 512260001

O-RING

$4.99

$

In Stock, only 1 left!

0

71

RedMax 502844701

PLATE

$4.99

$

Usually ships in 3-10 days

0

72

RedMax 502844501

GASKET

Note: . 73 74

$26.99

$

In Stock, only 1 left!

0

73

RedMax 512260301

PACKING

$17.99

$

Usually ships in 3-10 days

0

74

RedMax 512260401

SCREEN
(Superseded to 521741401)

$4.99

$

In Stock, Qty 5

0

75

RedMax 502844401

AIR FILTER

$10.99

$

In Stock, Qty 13

0

76

RedMax 511496101

COVER ASSY.

$24.99

$

In Stock, only 2 left!

0

77

RedMax 506673901

KNOB

$3.49

$

In Stock, only 4 left!

0

78

RedMax 506744201

COVER

$9.99

$

Usually ships in 3-10 days

0

81

RedMax 528759701

GASKET KIT

$34.99

$

Usually ships in 3-10 days

0

82

RedMax 513673501

PULLER ASSY

$241.99

$

Usually ships in 3-10 days

0

83

RedMax 515387901

STOPPER

$32.99

$

Usually ships in 3-10 days

0

84

RedMax 510961701

GAUGE

$60.99

$

Usually ships in 3-10 days

0

87

RedMax 521740201

LABEL,CHOKE

$3.99

$

In Stock, Qty 10

0
