EBZ 5000 - RedMax Backpack Blower (SN: 50100000 & Above) (2005-01) 005 - CARBURETOR COMPONENTS Parts Diagram

Backpack Blower

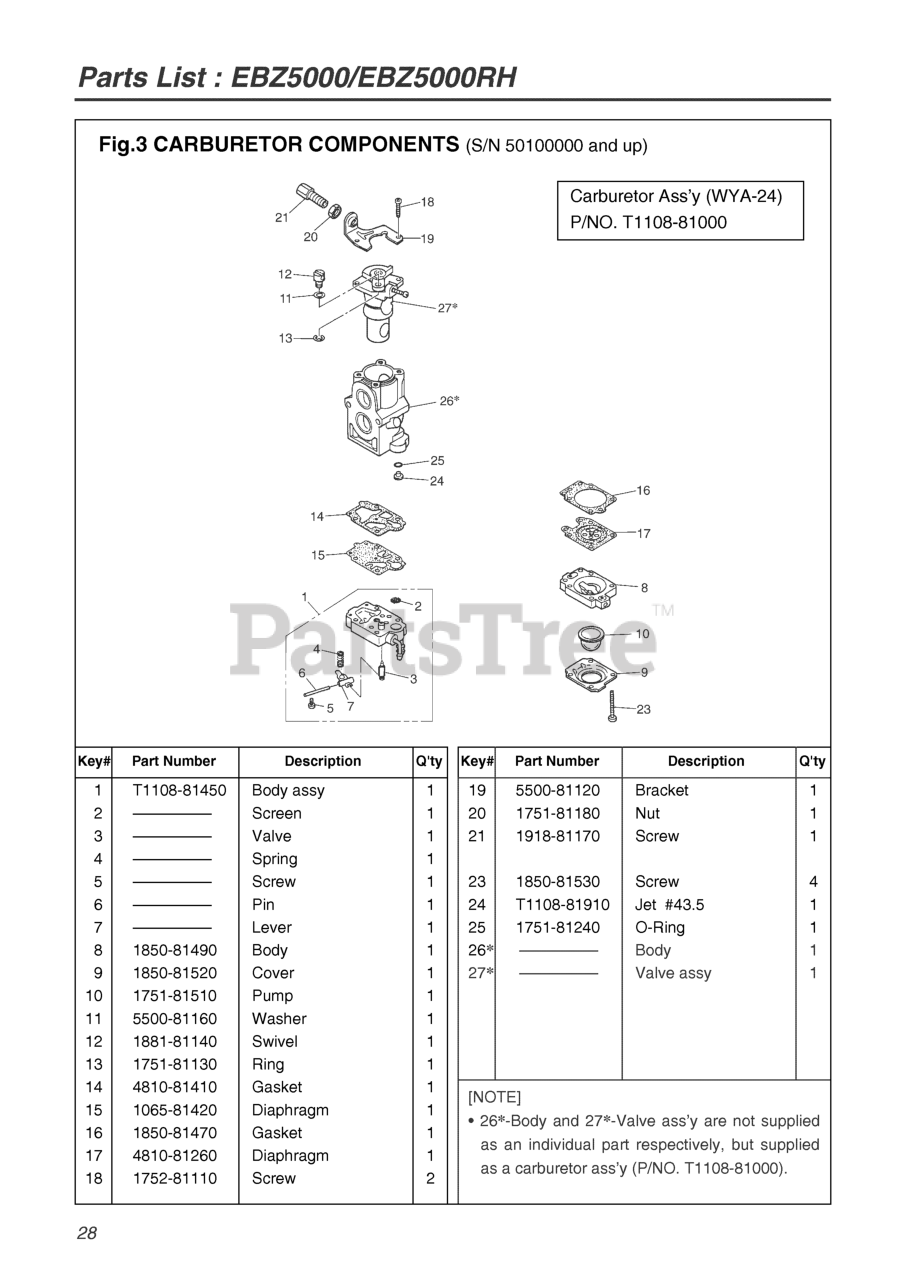

005 - CARBURETOR COMPONENTS Parts Diagram

  • Title
NI

RedMax T110881000

CARBURETOR (WYA 24A)

$

$

Not available

1

RedMax T110881450

BODY ASSY.
(Superseded to 544363501)

$74.99

$

In Stock, only 1 left!

0

2

SCREEN

$

$

Not available

3

VALVE

$

$

Not available

4

SPRING

$

$

Not available

5

SCREW

$

$

Not available

6

PIN

$

$

Not available

7

LEVER

$

$

Not available

8

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

9

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

10

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

12

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 481081410

GASKET, PUMP
(Superseded to 521343801)

$10.99

$

In Stock, only 4 left!

0

15

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

16

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

17

RedMax 481081260

DIAPHRAGM (RPLS 3310-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 1 left!

0

18

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

19

$7.42

$

Usually ships in 3-10 days

0

20

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

23

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

24

RedMax T110881910

JET 43.5
(Superseded to 521740001)

$

$

Not available

25

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

26

RedMax T110881000

CARBURETOR (WYA 24A)

$

$

Not available

27

RedMax T110881000

CARBURETOR (WYA 24A)

$

$

Not available
