EBZ 5000 Q - RedMax Backpack Blower (SN: 300001 & Above) (2007-02) 003 - ENGINE GROUP Parts Diagram

Backpack Blower

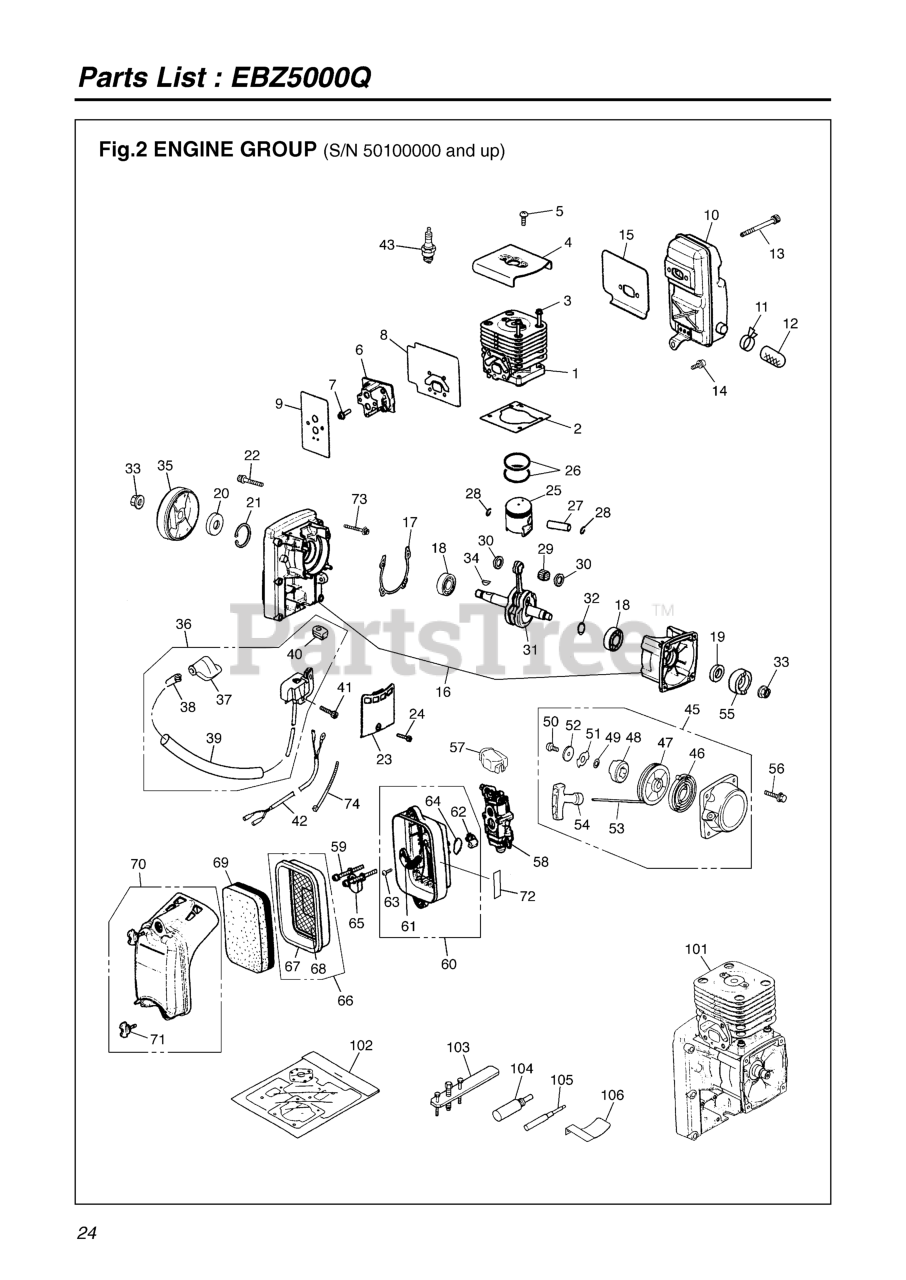

003 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax T110812110

CYLINDER
(Superseded to 512255101)

$40.99

$

Usually ships in 3-10 days

0

2

RedMax T110812210

GASKET, BASE
(Superseded to 502848801)

$6.99

$

In Stock, Qty 5

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

4

RedMax T110812310

PLATE, CYLINDER
(Superseded to 502846501)

$7.99

$

Usually ships in 3-10 days

0

5

RedMax T496050810

SCREW TORX
(Superseded to 544256801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 848GC014A1

INSULATOR
(Superseded to 502845401)

$26.99

$

Usually ships in 3-10 days

0

7

RedMax 8488152002

BOLT
(Superseded to 521516501)

$6.49

$

Usually ships in 3-10 days

0

8

RedMax 848GC014B2

GASKET, INSU
(Superseded to 521620801)

$11.99

$

In Stock, only 1 left!

0

9

RedMax T110813130

GASKET, CARBURETOR
(Superseded to 502845301)

$6.49

$

In Stock, Qty 5

0

10

RedMax 848GC015A1

MUFFLER
(Superseded to 521620901)

$54.99

$

Usually ships in 3-10 days

0

11

RedMax T110815120

ARRESTER
(Superseded to 512256401)

$

$

Not available

12

RedMax 141086130

CLIP

$

$

Not available

13

RedMax T495067031

BOLT
(Superseded to 544257901)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax T495061431

BOLT
(Superseded to 544258001)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax T110815210

GASKET, MUFFLER
(Superseded to 502845601)

$6.49

$

In Stock, only 2 left!

0

16

RedMax T110821101

CRANKCASE-C

$72.48

$

Usually ships in 3-10 days

0

17

RedMax T110821140

GASKET, CASE
(Superseded to 521738701)

$

$

Not available

18

RedMax T401221240

BEARING (REPLACES 2810-21240)
(Superseded to 502849101)

$24.99

$

In Stock, only 2 left!

0

19

RedMax T401921210

SEAL, OIL 15 X 25 X 7
(Superseded to 502849201)

$10.99

$

In Stock, only 2 left!

0

20

RedMax T110821220

SEAL (REPLACES 1400-21220)
(Superseded to 502849001)

$9.49

$

In Stock, only 2 left!

0

21

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

22

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

23

RedMax 275021211

COVER
(Superseded to 513663801)

$9.99

$

Usually ships in 3-10 days

0

24

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 17

0

25

RedMax T110841110

PISTON
(Superseded to 512257201)

$28.99

$

Usually ships in 3-10 days

0

26

RedMax 267041211

RING, PISTON (REPLACES -41210)
(Superseded to 513622201)

$6.99

$

Usually ships in 3-10 days

0

27

RedMax 288041310

PIN, PISTON
(Superseded to 513947801)

$9.99

$

In Stock, Qty 10

0

28

RedMax 335041320

RING, SNAP
(Superseded to 502849801)

$3.49

$

In Stock, only 1 left!

0

29

RedMax 140041410

BEARING
(Superseded to 502849901)

$12.99

$

In Stock, only 2 left!

0

30

RedMax 261641510

WASHER (RPLS 1491-41510)
(Superseded to 502850001)

$5.99

$

In Stock, Qty 7

0

31

RedMax T110842000

CRANKSHAFT COMP

$132.30

$

Usually ships in 3-10 days

0

32

RedMax 130042410

SHIM (REPLACES 848-870-G000)
(Superseded to 516283101)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 140043230

NUT, M10
(Superseded to 513241901)

$6.49

$

In Stock, only 3 left!

0

34

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax T110871110

ROTOR
(Superseded to 521739101)

$

$

Not available

36

RedMax T110871200

COIL ASSY.
(Superseded to 512258301)

$121.99

$

Usually ships in 3-10 days

0

37

RedMax T110872110

CAP
(Superseded to 521739401)

$12.99

$

Usually ships in 3-10 days

0

38

RedMax T110872120

SPRING
(Superseded to 521739501)

$4.99

$

In Stock, only 2 left!

0

39

RedMax T110872130

TUBE
(Superseded to 544362901)

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

41

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 17

0

42

RedMax T110871240

CORD-C
(Superseded to 512258401)

$9.99

$

In Stock, only 1 left!

0

43

RedMax 369991809

T2070-73110
(Superseded to 514530801)

$15.99

$

Usually ships in 3-10 days

0

45

RedMax T403075100

RECOIL ASSY
(Superseded to 502843101)

$43.99

$

Usually ships in 3-10 days

0

46

RedMax 118075221

SPRING (RPLS -75220)
(Superseded to 516231101)

$11.99

$

In Stock, only 2 left!

0

47

RedMax T403075120

REEL
(Superseded to 502843401)

$17.99

$

In Stock, only 1 left!

0

48

RedMax T403075140

DOG
(Superseded to 504554801)

$10.99

$

In Stock, only 1 left!

0

49

RedMax 186175150

WASHER
(Superseded to 502843601)

$3.99

$

Usually ships in 3-10 days

0

50

RedMax 148375270

SCREW
(Superseded to 513282901)

$3.99

$

Usually ships in 3-10 days

0

51

RedMax 148775160

RETAINER (RPLS 1861-75161)
(Superseded to 516348601)

$

$

Not available

52

RedMax 148775170

WASHER
(Superseded to 516348701)

$

$

Not available

53

RedMax 140075160

ROPE
(Superseded to 516316801)

$

$

Not available

54

RedMax 140075170

KNOB
(Superseded to 502843201)

$11.99

$

Usually ships in 3-10 days

0

55

RedMax 148775211

PULLEY (RPLS -75210)
(Superseded to 516348901)

$11.99

$

In Stock, only 2 left!

0

56

RedMax T496051431

SCREW TORX
(Superseded to 502843901)

$6.49

$

In Stock, only 3 left!

0

57

RedMax 450081910

COVER
(Superseded to 506744201)

$9.99

$

Usually ships in 3-10 days

0

58

RedMax T110881000

CARBURETOR (WYA 24A)

$

$

Not available

59

RedMax T495056240

BOLT
(Superseded to 502844601)

$4.99

$

Usually ships in 3-10 days

0

60

RedMax T110882100

BODY-A
(Superseded to 502844902)

$31.99

$

In Stock, only 4 left!

0

61

RedMax T110882130

PLATE,CHOKE
(Superseded to 512259601)

$4.99

$

In Stock, only 2 left!

0

62

RedMax T110882140

LEVER
(Superseded to 521740501)

$4.99

$

In Stock, only 1 left!

0

63

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

64

RedMax T110882180

RING,O
(Superseded to 521740801)

$4.99

$

In Stock, only 1 left!

0

65

RedMax T110882150

PLATE
(Superseded to 502844701)

$4.99

$

Usually ships in 3-10 days

0

66

RedMax T110882300

PACKING-C
(Superseded to 502844501)

$26.99

$

In Stock, only 1 left!

0

67

RedMax T110882310

PACKING
(Superseded to 521741301)

$17.99

$

Usually ships in 3-10 days

0

68

RedMax T110882320

SCREEN

$3.37

$

Usually ships in 3-10 days

0

69

RedMax T110882170

ELEMENT
(Superseded to 521740701)

$

$

Not available

70

RedMax T110882200

COVER-A
(Superseded to 521741001)

$

$

Not available

71

RedMax T110882220

KNOB
(Superseded to 506673901)

$3.49

$

In Stock, only 4 left!

0

72

RedMax T110882061

LABEL, CHOKE
(Superseded to 521740201)

$3.99

$

In Stock, Qty 10

0

73

RedMax T495064031

BOLT
(Superseded to 521862501)

$6.99

$

In Stock, only 1 left!

0

74

RedMax 612961210

BAND

$0.00

$

Usually ships in 3-10 days

0

101

RedMax T110805010

SHORT BLOCK

$388.45

$

Usually ships in 3-10 days

0

102

RedMax T110806010

GASKET KIT
(Superseded to 570753501)

$31.99

$

Usually ships in 3-10 days

0

103

RedMax 275096100

PULLER ASSY

$69.26

$

Usually ships in 3-10 days

0

104

RedMax 481096220

STOPPER (TOOL)
(Superseded to 521345101)

$32.99

$

Usually ships in 3-10 days

0

105

RedMax 275096230

PULLER, PISTON PIN

$24.12

$

Usually ships in 3-10 days

0

106

RedMax 275096240

GAUGE

$

$

Not available
