EBZ 4800 - RedMax Backpack Blower (SN: 100101 & Above) (2002-01) 027 - LEVER SET Parts Diagram

Backpack Blower

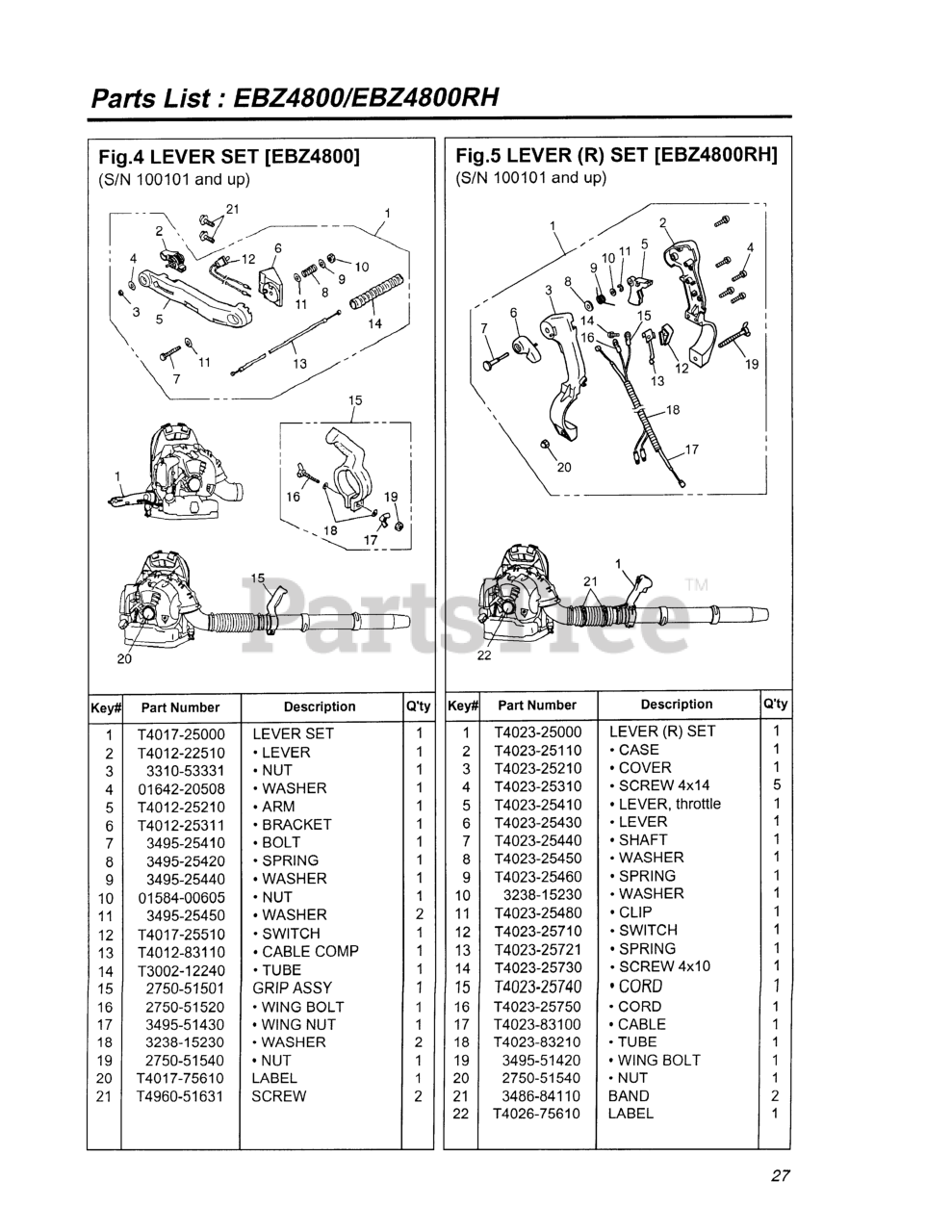

027 - LEVER SET Parts Diagram

  • Title
1

RedMax T401725000

LEVER SET
(Superseded to 526110401)

$

$

Not available

2

RedMax T401222510

T4012-25100

$

$

Not available

3

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

4

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

5

RedMax T401225210

ARM (USE T4012-25211)
(Superseded to 544276601)

$24.99

$

Usually ships in 3-10 days

0

6

RedMax T401225311

BRACKET (RPLS -25310)
(Superseded to 512648101)

$12.99

$

Usually ships in 3-10 days

0

7

RedMax 349525410

BOLT
(Superseded to 514336201)

$4.99

$

In Stock, Qty 11

0

8

RedMax 349525420

SPRING
(Superseded to 514336301)

$4.99

$

In Stock, Qty 9

0

9

RedMax 349525440

WASHER
(Superseded to 514336501)

$3.49

$

In Stock, only 3 left!

0

10

RedMax 0158400605

NUT, M6 X 5
(Superseded to 521519601)

$3.49

$

In Stock, Qty 12

0

11

RedMax 349525450

WASHER, FLAT
(Superseded to 514336701)

$3.99

$

In Stock, Qty 7

0

12

RedMax T401725510

SWITCH
(Superseded to 526110501)

$

$

Not available

13

RedMax T401283110

CABLE COMPLETE
(Superseded to 544277501)

$12.99

$

In Stock, only 4 left!

0

14

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 275051501

GRIP ASSEMBLY (RPLS -51500)
(Superseded to 513670501)

$44.99

$

Usually ships in 3-10 days

0

16

RedMax 275051520

WING BOLT
(Superseded to 510909801)

$

$

Not available

17

RedMax 349551430

NUT, WING
(Superseded to 521149401)

$6.49

$

In Stock, Qty 7

0

18

RedMax 323815230

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

19

RedMax 275051540

NUT
(Superseded to 513671401)

$7.49

$

In Stock, Qty 5

0

20

RedMax T401775610

LABEL, RECOIL (EBZ4800)

$

$

Not available

21

RedMax T496051631

SCREW TORX
(Superseded to 544270801)

$5.99

$

In Stock, only 3 left!

0
