EBZ 4800 - RedMax Backpack Blower (SN: 100101 & Above) (2002-01) 022 - BLOWER GROUP Parts Diagram

Backpack Blower

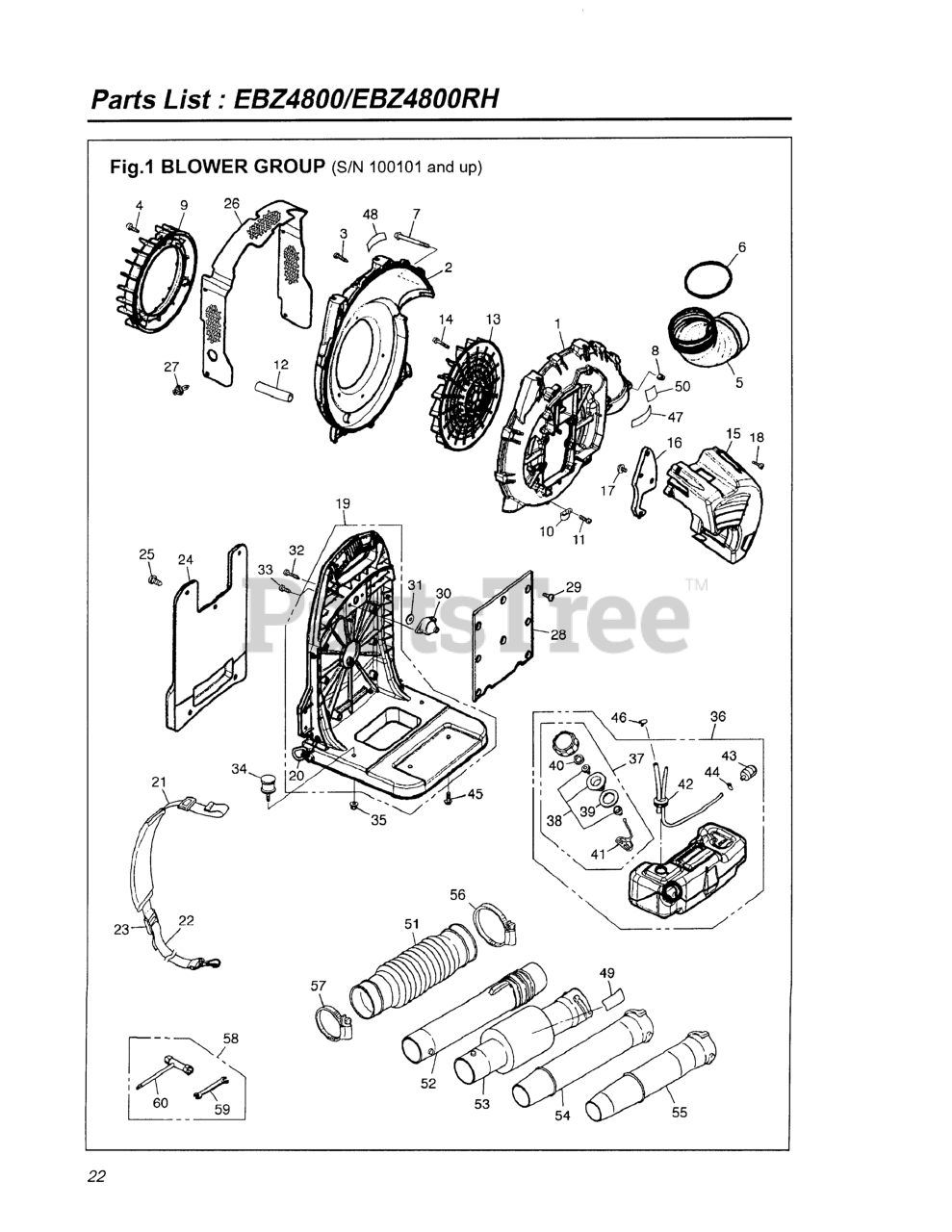

022 - BLOWER GROUP Parts Diagram

  • Title

1

RedMax T401731110

CASE, VOLUTE
(Superseded to 574769301)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax T401731210

848-L36-55B0
(Superseded to 521672801)

$45.99

$

Usually ships in 3-10 days

0

3

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, only 2 left!

0

4

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, only 2 left!

0

5

RedMax 349011150

2751-31410
(Superseded to 513675101)

$

$

Not available

6

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, only 2 left!

0

7

RedMax T496057030

SCREW TORX
(Superseded to 544264601)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax T401731310

FUNNEL

$12.89

$

Usually ships in 3-10 days

0

10

RedMax 114072231

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax T497051410

SCREW

$

$

Not available

12

RedMax 275031290

TUBE (RPLS. 07270-01507)
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax T401731510

FAN
(Superseded to 502850201)

$56.99

$

Usually ships in 3-10 days

0

14

RedMax T495063031

BOLT
(Superseded to 521862201)

$

$

Not available

15

RedMax T401731600

COVER, ENGINE
(Superseded to 521838901)

$34.99

$

Usually ships in 3-10 days

0

16

RedMax T401731620

GLASS
(Superseded to 521839101)

$

$

Not available

17

RedMax T497050831

SCREW
(Superseded to 512847801)

$

$

Not available

18

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, only 2 left!

0

19

RedMax T401732100

FRAME COMPLETE
(Superseded to 521839201)

$

$

Not available

20

RedMax 349021121

RING (REPLACES -21120)
(Superseded to 521142801)

$4.99

$

In Stock, Qty 16

0

21

RedMax 275632310

USE T4017-32310
(Superseded to 574162401)

$24.99

$

Usually ships in 3-10 days

0

22

RedMax T401732320

BAND (B)

$12.71

$

Usually ships in 3-10 days

0

24

RedMax T401721310

PAD
(Superseded to 521838401)

$42.99

$

Usually ships in 3-10 days

0

25

RedMax 349521320

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

26

RedMax T401732500

NET COMPLETE
(Superseded to 521839401)

$14.99

$

Usually ships in 3-10 days

0

27

RedMax 148074710

CLIP
(Superseded to 516342801)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax T401732600

PLATE

$7.41

$

Usually ships in 3-10 days

0

29

RedMax T497050831

SCREW
(Superseded to 512847801)

$

$

Not available

30

RedMax 275032510

DAMPER, UPPER
(Superseded to 513666701)

$13.99

$

In Stock, only 2 left!

0

31

RedMax 275032520

WASHER
(Superseded to 516875001)

$3.99

$

Usually ships in 3-10 days

0

32

RedMax T497254010

SCREW (RPLS T4970-54010)
(Superseded to 521863801)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax T496051631

SCREW TORX
(Superseded to 544270801)

$5.99

$

In Stock, Qty 6

0

34

RedMax 275032610

DAMPER, LOWER
(Superseded to 516875701)

$

$

Not available

35

RedMax 275032620

NUT, M6
(Superseded to 513667501)

$4.99

$

In Stock, only 1 left!

0

36

RedMax T401785100

TANK ASSEMBLY
(Superseded to 521839801)

$

$

Not available

37

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 3 left!

0

38

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

39

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

40

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 1 left!

0

41

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

42

RedMax 275085300

PIPE COMP.(RPLS 2756-85300)
(Superseded to 516879801)

$14.99

$

Usually ships in 3-10 days

0

43

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

44

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 8

0

45

RedMax T496051231

SCREW TORX
(Superseded to 544273101)

$3.49

$

In Stock, Qty 5

0

46

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 275031911

LABEL, CAUTION (RPLS -31910)
(Superseded to 516873201)

$3.49

$

Usually ships in 3-10 days

0

48

RedMax T401232610

LABEL, NET
(Superseded to 521832401)

$6.49

$

Usually ships in 3-10 days

0

49

RedMax T401751340

LABEL, SILENCER

$3.41

$

Usually ships in 3-10 days

0

50

RedMax T401731920

LABEL, NOISE

$2.68

$

Usually ships in 3-10 days

0

51

RedMax T401751110

HOSE (RPLS 2750-51110)
(Superseded to 504065101)

$31.99

$

Usually ships in 3-10 days

0

52

RedMax 275051200

JOINT, SWIVEL (USE 51201)
(Superseded to 504064801)

$11.99

$

In Stock, Qty 11

0

53

RedMax T401751300

PIPE, SILENCER
(Superseded to 521839701)

$

$

Not available

54

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

Usually ships in 3-10 days

0

55

RedMax 275651220

KIT, NOZZLE (USE 2756-51221)

$

$

Not available

56

RedMax 275651510

CLAMP (RPLS 3490- )
(Superseded to 526343301)

$5.99

$

Usually ships in 3-10 days

0

57

RedMax 275651520

CLAMP (RPLS 3050-13230)
(Superseded to 574006101)

$

$

Not available

58

RedMax T401791000

TOOL SET

$14.60

$

Usually ships in 3-10 days

0

59

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

60

RedMax T401791130

SOCKET

$11.01

$

Usually ships in 3-10 days
