EBZ 3050 RH - RedMax Backpack Blower (SN: 90100101 & Above) (2009-05) 003 - CARBURETOR COMPONENTS Parts Diagram

Backpack Blower

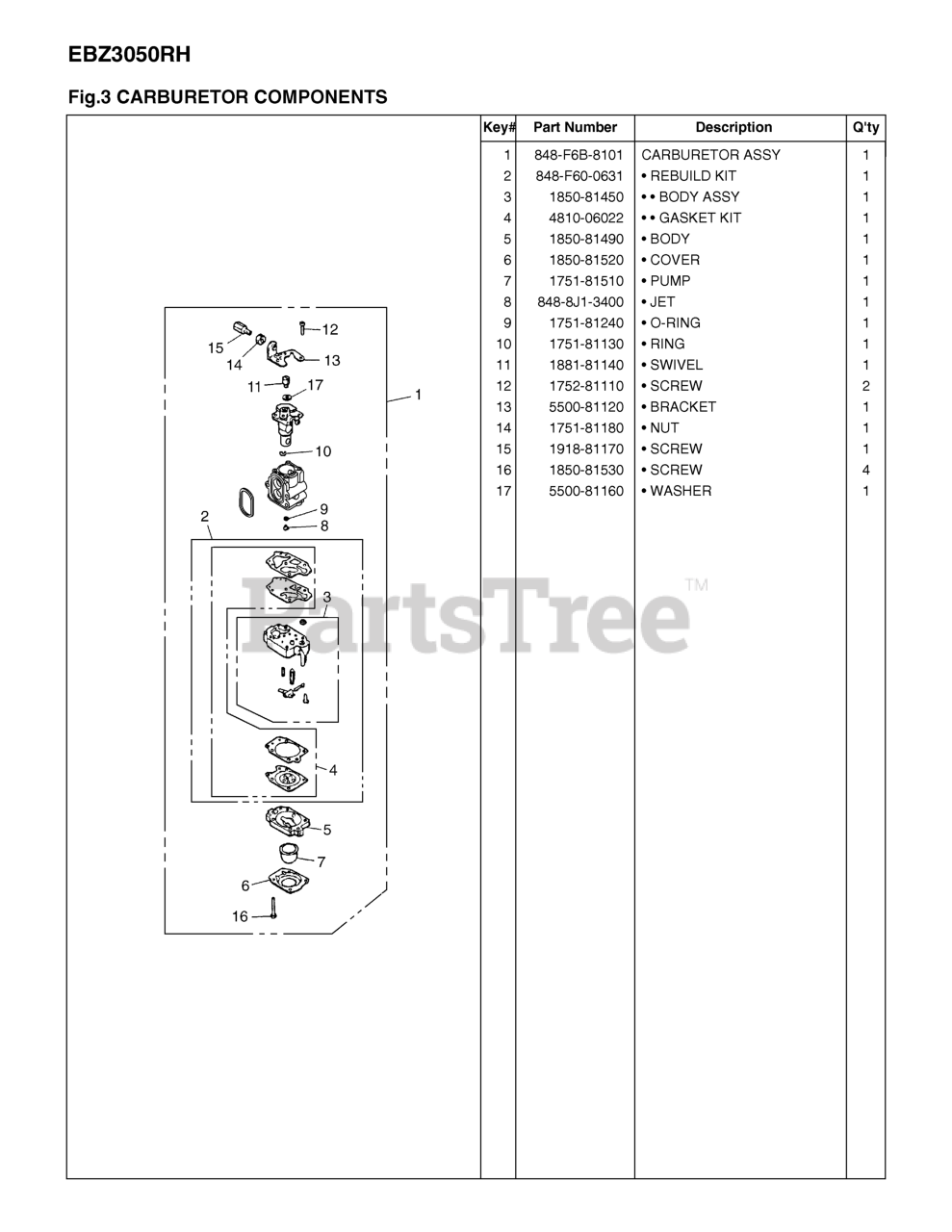

003 - CARBURETOR COMPONENTS Parts Diagram

  • Title

1

RedMax 848F6B8101

CARBURETOR ASSY
(Superseded to 504116101)

$68.99

$

Usually ships in 3-10 days

0

2

RedMax 848F600631

REBUILD KIT

$

$

Not available

3

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

4

RedMax 481006022

GASKET KIT

$

$

Not available

5

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

6

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

7

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

8

RedMax 8488J13400

JET

$3.98

$

Usually ships in 3-10 days

0

9

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

10

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

12

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

14

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

16

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 2 left!

0

17

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0
