EBZ 3000 RH - RedMax Backpack Blower (SN: 61200101 & Above) ENGINE Parts Diagram

Backpack Blower

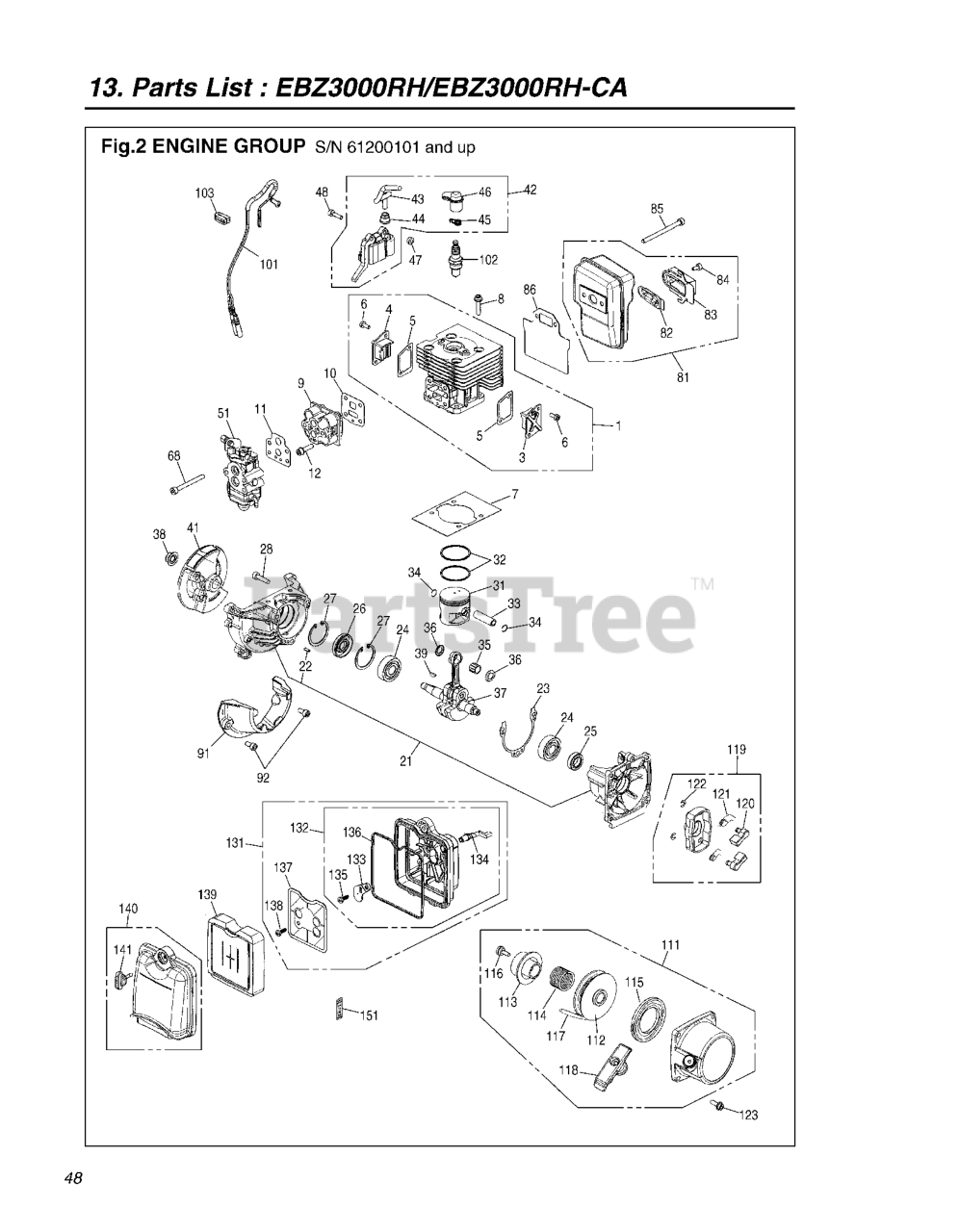

ENGINE Parts Diagram

  • Title

1

RedMax 504118701

CYLINDER
(Superseded to 586931201)

Note: . 3 4 5 6

$113.99

$

Usually ships in 3-10 days

0

3

RedMax 504118801

COVER TR(S)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 504118901

COVER TR (F)

$6.99

$

Usually ships in 3-10 days

0

5

RedMax 504119001

GASKET TR

$3.49

$

In Stock, only 4 left!

0

6

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

7

RedMax 504119101

GASKET BASE

$5.99

$

In Stock, Qty 17

0

8

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

9

RedMax 504116301

INSULATOR

$13.99

$

Usually ships in 3-10 days

0

10

RedMax 504116401

GASKET INSULATOR

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 504116201

GASKET

$6.49

$

Usually ships in 3-10 days

0

12

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

21

RedMax 521615501

CRANKCASE-C

$37.99

$

Usually ships in 3-10 days

0

22

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 504121201

GASKET CASE

$4.99

$

In Stock, only 1 left!

0

24

RedMax 504121401

BEARING
(Superseded to 521521001)

$12.99

$

In Stock, only 4 left!

0

25

RedMax 504121501

SEAL

$9.99

$

In Stock, Qty 12

0

26

RedMax 504121301

SEAL

$10.99

$

Usually ships in 3-10 days

0

27

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

31

RedMax 504120301

PISTON
(Superseded to 576389101)

$39.99

$

In Stock, only 2 left!

0

32

RedMax 521755401

RING
(Superseded to 510917801)

$11.99

$

In Stock, Qty 19

0

33

RedMax 521800501

PIN
(Superseded to 504120601)

$10.99

$

In Stock, only 3 left!

0

34

RedMax 504120901

RING

$4.99

$

In Stock, Qty 5

0

35

RedMax 504120101

BEARING

$13.99

$

Usually ships in 3-10 days

0

36

RedMax 504120201

WASHER

$4.99

$

In Stock, only 2 left!

0

37

RedMax 504119301

CRANKSHAFT C

$96.99

$

Usually ships in 3-10 days

0

38

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

39

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 511393901

ROTOR

$

$

Not available

42

RedMax 511393701

COIL-A
(Superseded to 504118401)

Note: . 43 44 45 46

$68.99

$

Usually ships in 3-10 days

0

43

RedMax 511393601

$

$

Not available

44

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 506655201

SPRING

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 512444001

CAP

$7.49

$

In Stock, only 3 left!

0

47

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 17

0

51

RedMax 504116101

CARBURETOR A

$68.99

$

Usually ships in 3-10 days

0

68

RedMax 504116501

BOLT

$4.99

$

In Stock, Qty 10

0

81

RedMax 504117001

MUFFLER A

Note: . 82 83 84

$51.99

$

In Stock, only 1 left!

0

82

RedMax 504117201

ARRESTER

$7.99

$

Usually ships in 3-10 days

0

83

RedMax 504117301

EXHAUSE DUCT

$9.49

$

Usually ships in 3-10 days

0

84

RedMax 544362701

BOLT

$3.49

$

In Stock, Qty 10

0

85

RedMax 504116901

BOLT
(Superseded to 510905601)

$3.99

$

Usually ships in 3-10 days

0

86

RedMax 504117101

GASKET

$

$

Not available

91

RedMax 511392601

OBSOLETE - COVER

$

$

Not available

92

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

101

RedMax 510933201

OBSOLETE - CORD-C

$

$

Not available

102

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

103

RedMax 506615901

GROMMET

$3.99

$

Usually ships in 3-10 days

0

111

RedMax 521618001

RECOIL-A

$

$

Not available

112

RedMax 521618301

REEL

$13.99

$

Usually ships in 3-10 days

0

113

RedMax 521618501

PLATE, CAM

$6.99

$

Usually ships in 3-10 days

0

114

RedMax 521618401

SPRING, DAMPER

$

$

Not available

115

RedMax 521618201

SPRING,SPIRAL

$21.99

$

Usually ships in 3-10 days

0

116

RedMax 515367101

SCREW

$4.99

$

In Stock, only 2 left!

0

117

RedMax 511389901

OBSOLETE - ROPE

$

$

Not available

118

RedMax 506614701

KNOB

$6.99

$

In Stock, only 2 left!

0

119

RedMax 521618101

PULLEY-A

Note: . 120 121 122

$

$

Not available

120

RedMax 521618601

RATCHET

$2.49

$

Usually ships in 3-10 days

0

121

RedMax 521618701

SPRING

$

$

Not available

122

RedMax 513167701

E-RING
(Superseded to 516155501)

$3.99

$

Usually ships in 3-10 days

0

123

RedMax 506745601

BOLT

$3.99

$

Usually ships in 3-10 days

0

131

RedMax 521607701

BODY & SCREEN

Note: . 132 133 134-138

$20.99

$

In Stock, only 1 left!

0

132

RedMax 521607401

BODY-A (RPLS 848F028310)
(Superseded to 521607701)

Note: . 133 134 135 136

$20.99

$

In Stock, only 1 left!

0

133

RedMax 506684301

PLATE.CHOKE

$3.49

$

Usually ships in 3-10 days

0

134

RedMax 521760501

LEVER CHOKE

$4.99

$

In Stock, only 4 left!

0

135

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

136

RedMax 521751301

PACKING

$4.99

$

In Stock, only 1 left!

0

137

RedMax 521607901

SCREEN

$5.99

$

In Stock, only 2 left!

0

138

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

139

RedMax 504115301

ELEMENT
(Superseded to 521751401)

$6.49

$

Usually ships in 3-10 days

0

140

RedMax 511395601

AIR FILTER COVER

Note: . 141

$

$

Not available

141

RedMax 504115101

KNOB

$4.99

$

In Stock, only 1 left!

0

151

RedMax 504155101

LABEL, CHOKE

$3.49

$

Usually ships in 3-10 days

0
