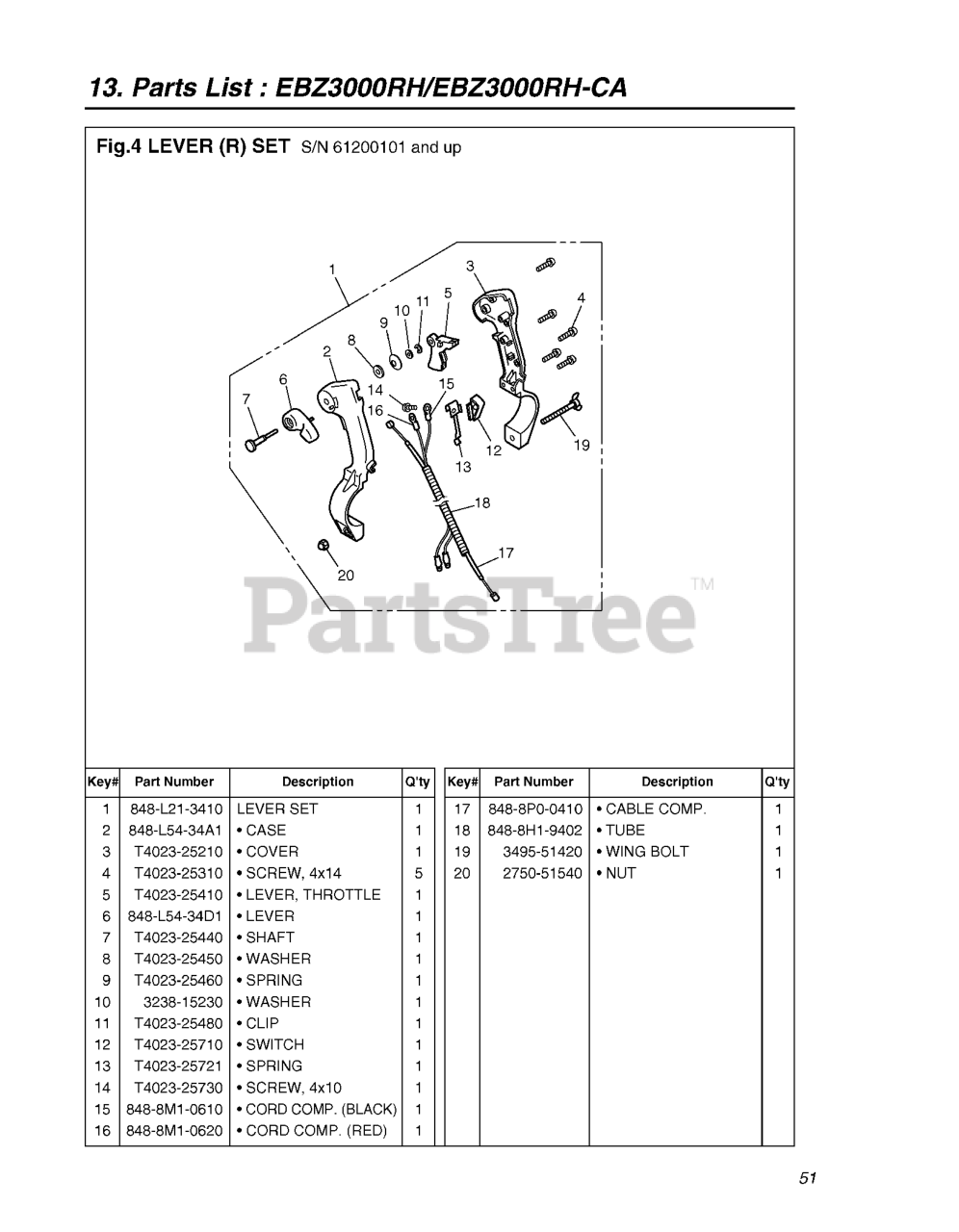

EBZ 3000 RH - RedMax Backpack Blower (SN: 61200101 & Above) ASSEMBLY Parts Diagram

Backpack Blower

ASSEMBLY Parts Diagram

  • Title

1

RedMax 511686601

LEVER SET

Note: . 2 3 4-20

$

$

Not available

2

RedMax 511746901

CASE
(Superseded to 521673401)

$13.99

$

In Stock, only 4 left!

0

3

RedMax 512690801

COVER

$12.99

$

In Stock, Qty 5

0

4

RedMax 521840701

SCREW 4X14(T)
(Superseded to 512691201)

$4.99

$

In Stock, only 3 left!

0

5

RedMax 512694901

LEVER THROTTLE

$6.49

$

In Stock, Qty 8

0

6

RedMax 521673501

RP_LEVER (RPLS T402325430)

$4.99

$

In Stock, only 2 left!

0

7

RedMax 512695601

SHAFT
(Superseded to 521841001)

$11.99

$

Usually ships in 3-10 days

0

8

RedMax 521841101

WASHER(T)

$3.99

$

In Stock, only 4 left!

0

9

RedMax 521841201

RP_SPRING WASHER

$3.99

$

In Stock, only 4 left!

0

10

RedMax 514154401

WASHER
(Superseded to 520921901)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 521841301

RP_CLIP(T)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 512698001

SWTICH (T)

$6.49

$

In Stock, only 2 left!

0

13

RedMax 521841601

SPRING (RPLS T402325720)

$7.99

$

Usually ships in 3-10 days

0

14

RedMax 521841701

RP_SCREW 4X10(T)

$3.99

$

In Stock, only 4 left!

0

15

RedMax 529255501

CORD-COMP

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 529255601

CORD-COMP

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 510938001

CABLE-C

$22.99

$

Usually ships in 3-10 days

0

18

RedMax 521524301

TUBE (RPLS T402383210)

$8.99

$

Usually ships in 3-10 days

0

19

RedMax 514338401

BOLT WING

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 513671401

NUT

$7.49

$

In Stock, only 1 left!

0
