EBTPV 22675 HWEX (7800880) - Brute 22" Walk-Behind Mower (2012) Handle & Controls Group (7502872) Parts Diagram

22" Walk-Behind Mower

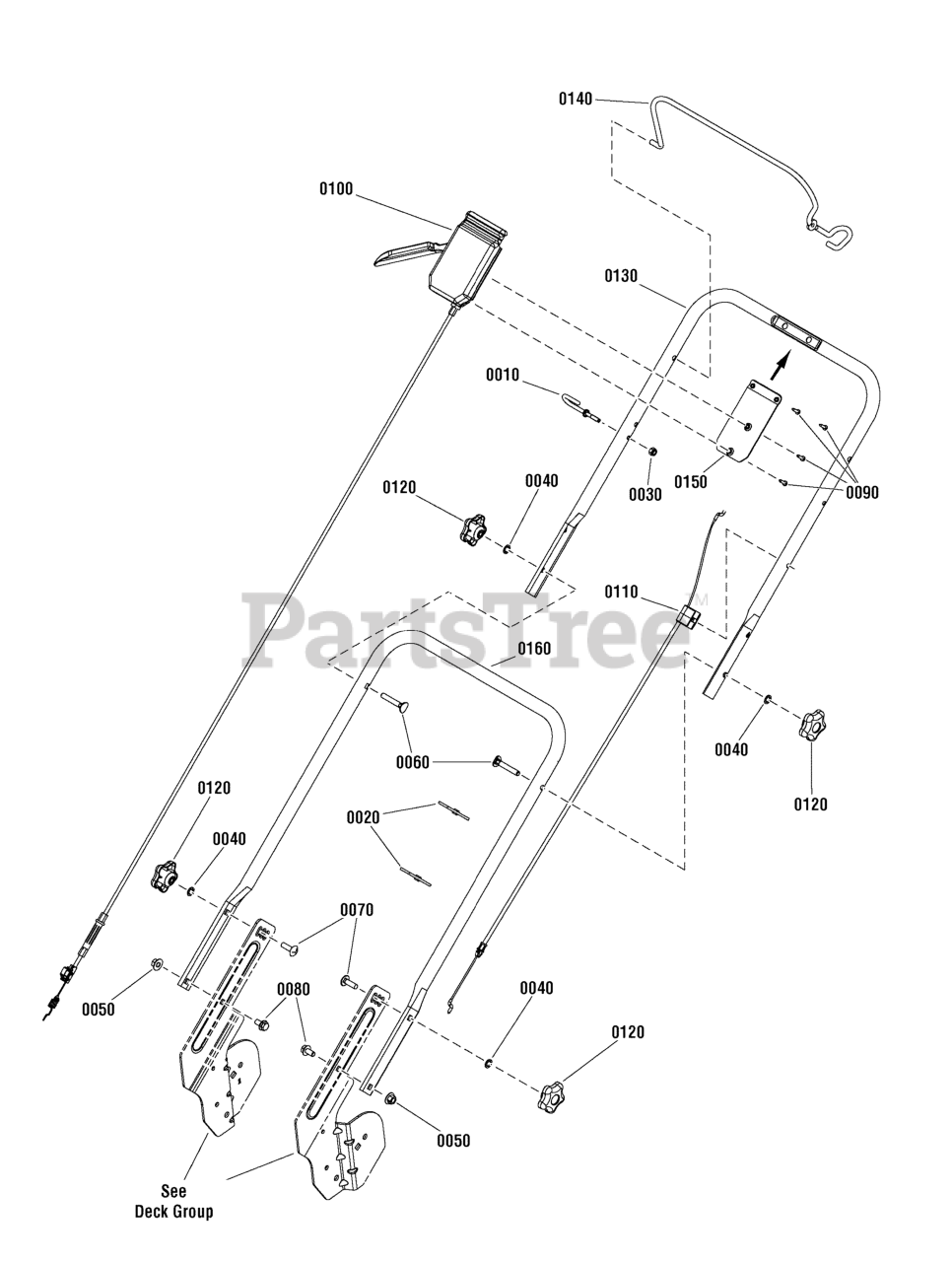

Handle & Controls Group (7502872) Parts Diagram

  • Title

0010

Murray 071530MA

GUIDE, Rope, 1/4-20 thread

$5.99

$

Usually ships in 2-12 days

0

0020

Murray 7024649YP

WIRE TIE, 11 Inch Std Blk Nylon

$5.49

$

Usually ships in 2-12 days

0

0030

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

0060

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

0070

Murray 7091714YP

BOLT, Carriage, Short Neck, 5/16-18 x 1, GR5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0080

Murray 7091811SM

CAPSCREW, Hex Flange, 5/16-18 x 5/8, G5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0090

Murray 7100225YP

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 7105618YP

ASSEMBLY, Control Head

$65.99

$

Usually ships in 2-12 days

0

0110

Murray 7100074YP

CABLE, Control

$21.99

$

In Stock, only 1 left!

0

0120

Murray 7105085YP

KNOB, Handle

$3.99

$

In Stock, Qty 20+

0

0130

Murray 7078247AYP

HANDLE, Upper

$142.99

$

Usually ships in 2-12 days

0

0140

Murray 7101675AYP

BAIL, OPC Push

$46.99

$

Usually ships in 2-12 days

0

0150

Murray 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

0160

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0
