EBTPV 22675 HWEX (7800880) - Brute 22" Walk-Behind Mower (2012) Engine Group (7502869_7502866) Parts Diagram

22" Walk-Behind Mower

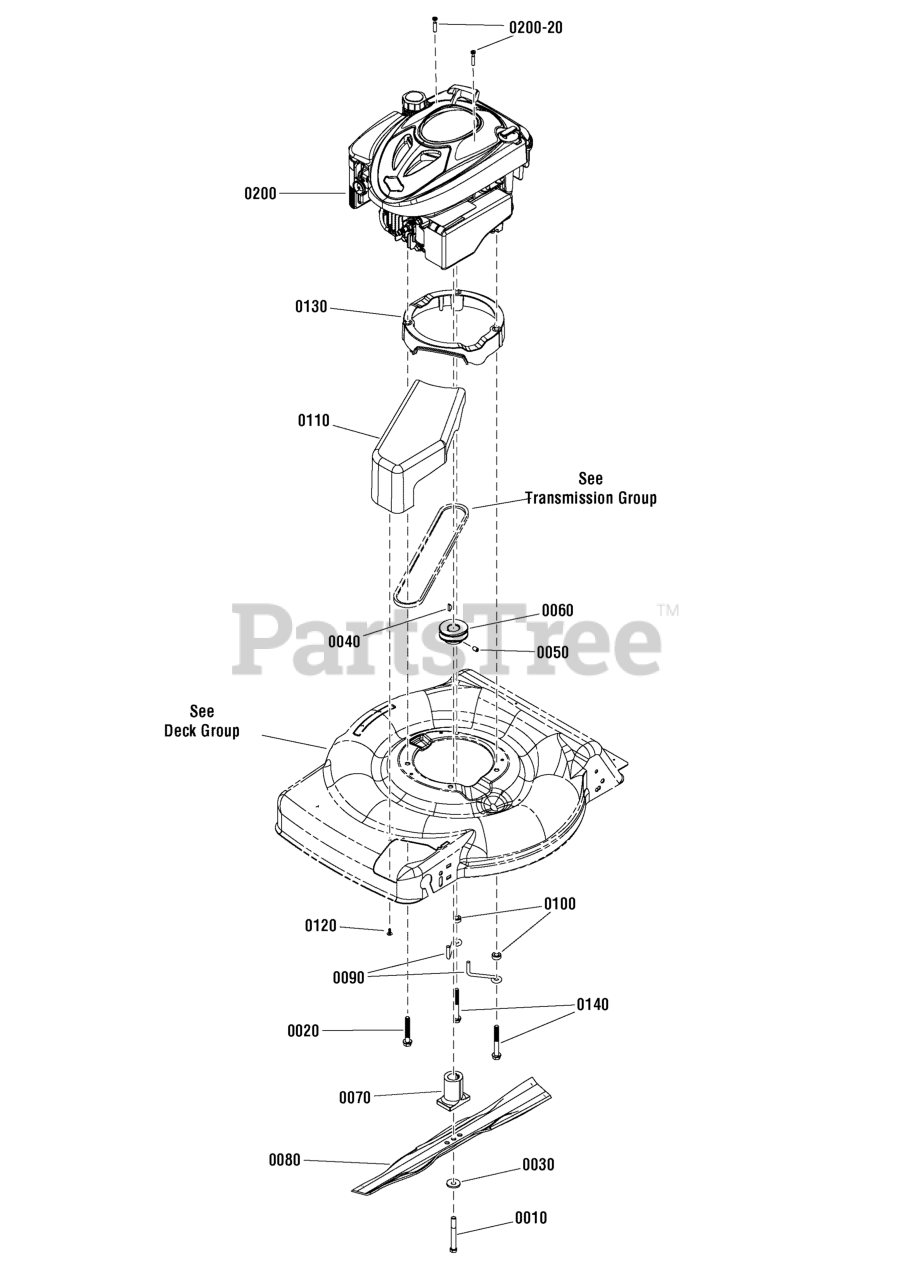

Engine Group (7502869_7502866) Parts Diagram

  • Title
0010

Murray 01X144MA

BOLT, 3/8-24 x 3-1/4 Hex Head, GR 8

$5.49

$

In Stock, only 3 left!

0

0020

Murray 025X11MA

BOLT, 3/8-16 x 2-1/2" Hex Washer Face

$6.99

$

Usually ships in 2-12 days

0

0030

Murray 1101989MA

WASHER, .38" ID x 1.183 OD Bellville

$5.49

$

Usually ships in 2-12 days

0

0040

Murray 7091214YP

KEY, Hi-Pro, HP-506

$4.99

$

In Stock, only 1 left!

0

0050

Murray 7092086YP

SET SCREW, 5/16-18 x 1/2", Hex Recess

$4.99

$

Usually ships in 2-12 days

0

0060

Murray 7105122YP

PULLEY, Engine

$40.99

$

In Stock, only 1 left!

0

0070

Murray 7100740YP

HUB, Blade, 22" Deck

$15.99

$

Usually ships in 2-12 days

0

0080

Murray 7100851AYP

BLADE, 22" Walk Mower

$19.99

$

In Stock, only 1 left!

0

0090

Murray 7101024YP

BELT GUIDE, Engine, 22" VS

$5.49

$

Usually ships in 2-12 days

0

0100

Murray 7101302YP

SPACER, Belt Guide, 22" VS

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 1101596MA

COVER, Belt, Plastic

$37.99

$

Usually ships in 2-12 days

0

0120

Murray 26X303MA

SCREW, #8-11 Poly Thread x .63, Pan Head Cross Recess

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 7101449YP

ASSEMBLY, Engine Spacer, 22 WBM, Propelled

$64.99

$

Usually ships in 2-12 days

0

0140

Murray 7101451YP

SCREW 3/8-16 x 3" Hex Washer Self-Tap

$5.49

$

Usually ships in 2-12 days

0

0200

Murray 126T02-7268-H1

* ENGINE, 6.75TP Briggs & Stratton

Note: (Engine Model: 126T02-7268-H1)

$

$

Not available

0200-20

Murray 691138

SCREW, Pan HD Cross Recess, Tapping

$3.99

$

In Stock, Qty 18

0
