EBTP 22675 HWEX (7800879) - Brute 22" Walk-Behind Mower (2012) Deck Group (7501881) Parts Diagram

22" Walk-Behind Mower

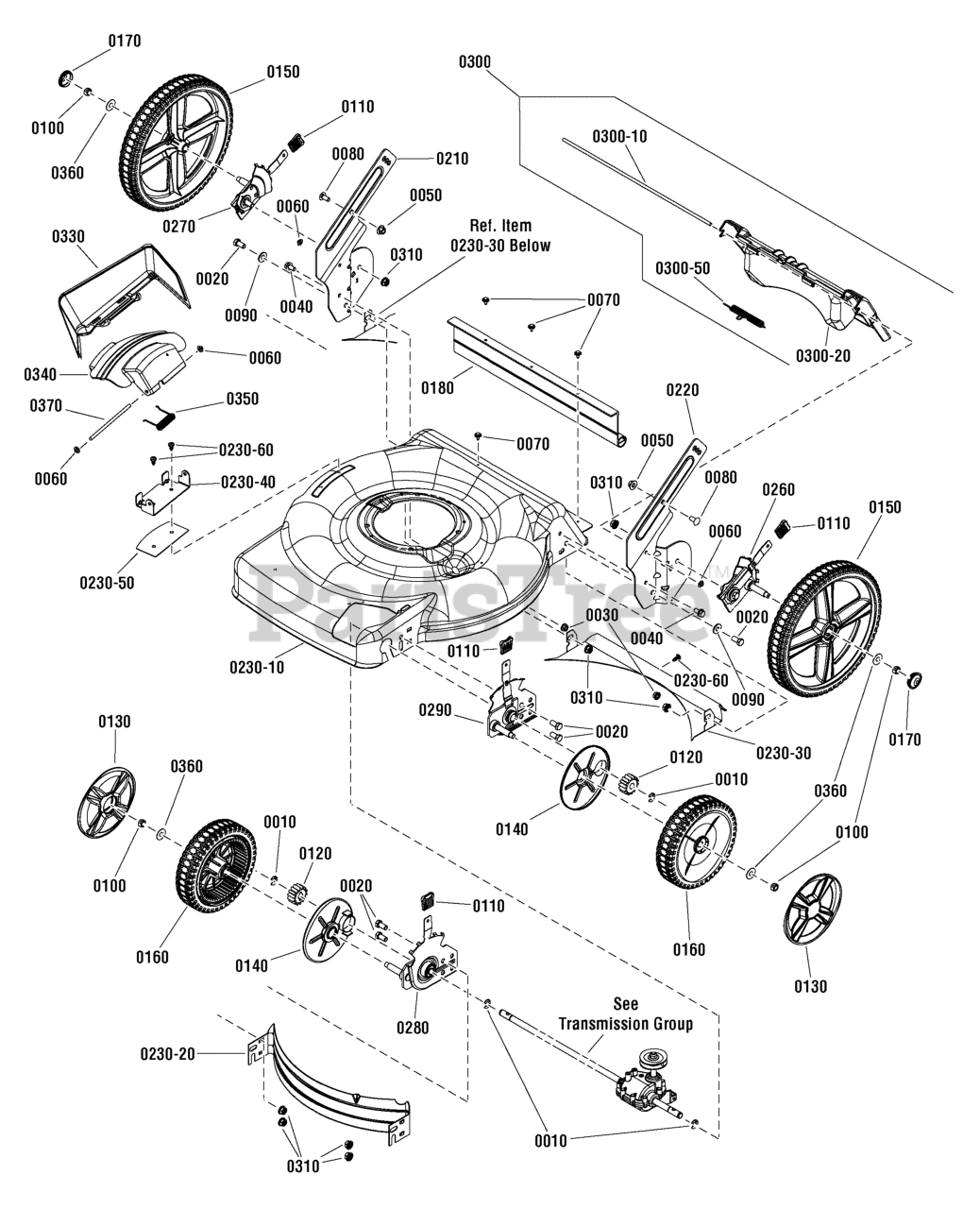

Deck Group (7501881) Parts Diagram

  • Title

0010

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0020

Murray 7090134MA

SCREW, 3/8-16 x 3/4" Hex Head Cap

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 7

0

0040

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0050

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

0060

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

0080

Murray 7091508SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 7091528SM

WASHER, Flat, 3/8 X .875

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

0110

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0120

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

0130

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

0140

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

0150

Murray 7101708MA

WHEEL, 12"X 2" Idle
(Superseded to 7105711YP)

$54.99

$

In Stock, Qty 5

0

0160

Murray 7101710MA

WHEEL, 8"X 2" Drive

$39.99

$

In Stock, Qty 6

0

0170

Murray 7101931MA

HUBCAP, 12" Wheel

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 7102422YP

GUARD, Rear 22" Hi-Wheel

$18.99

$

Usually ships in 2-12 days

0

0210

Murray 7301196ZYP

BRACKET, Lower Handle, RH, Hi-Wheel

$30.99

$

Usually ships in 2-12 days

0

0220

Murray 7301197ZYP

BRACKET, Lower Handle, LH, Hi-Wheel

$30.99

$

Usually ships in 2-12 days

0

0230-10

Murray 7300400ZMA

DECK, 22" Walk, 3-N-1

$

$

Not available

0230-20

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

0230-30

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

0230-40

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

0230-50

Murray 7300856ZMA

PLATE, Mulch

$6.49

$

Usually ships in 2-12 days

0

0230-60

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0260

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Left Rear

$

$

Not available

0270

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Right Rear

$

$

Not available

0280

Murray 7501057YP

ASSEMBLY, Height-Of-Cut, 22, Propelled, 7 Position, Right Front

$74.99

$

Usually ships in 2-12 days

0

0290

Murray 7501058YP

ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Left Front

$86.99

$

In Stock, only 1 left!

0

0300

Murray 7500416YP

DOOR ASSEMBLY

Note: (Incl. Ref. Nos. 0300-10, 0300-20 & 0300-50)

$75.99

$

Usually ships in 2-12 days

0

0300-10

Murray 7101070YP

ROD, Pivot, Rear Door

Note: (Included with Ref. No. 0300)

$6.49

$

Usually ships in 2-12 days

0

0300-20

Murray 7101243YP

DOOR, Rear Discharge, 22" Walk Mower

Note: (Included with Ref. No. 0300)

$51.99

$

Usually ships in 2-12 days

0

0300-50

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

Note: (Included with Ref. No. 0300)

$6.99

$

Usually ships in 2-12 days

0

0310

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock

$3.99

$

Usually ships in 2-12 days

0

0330

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

Usually ships in 2-12 days

0

0340

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

0350

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

0360

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0370

Murray 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0
