EBTP 22650 E (7800878) - Brute 22" Walk-Behind Mower (2012) Transmission Group (7501884) Parts Diagram

22" Walk-Behind Mower

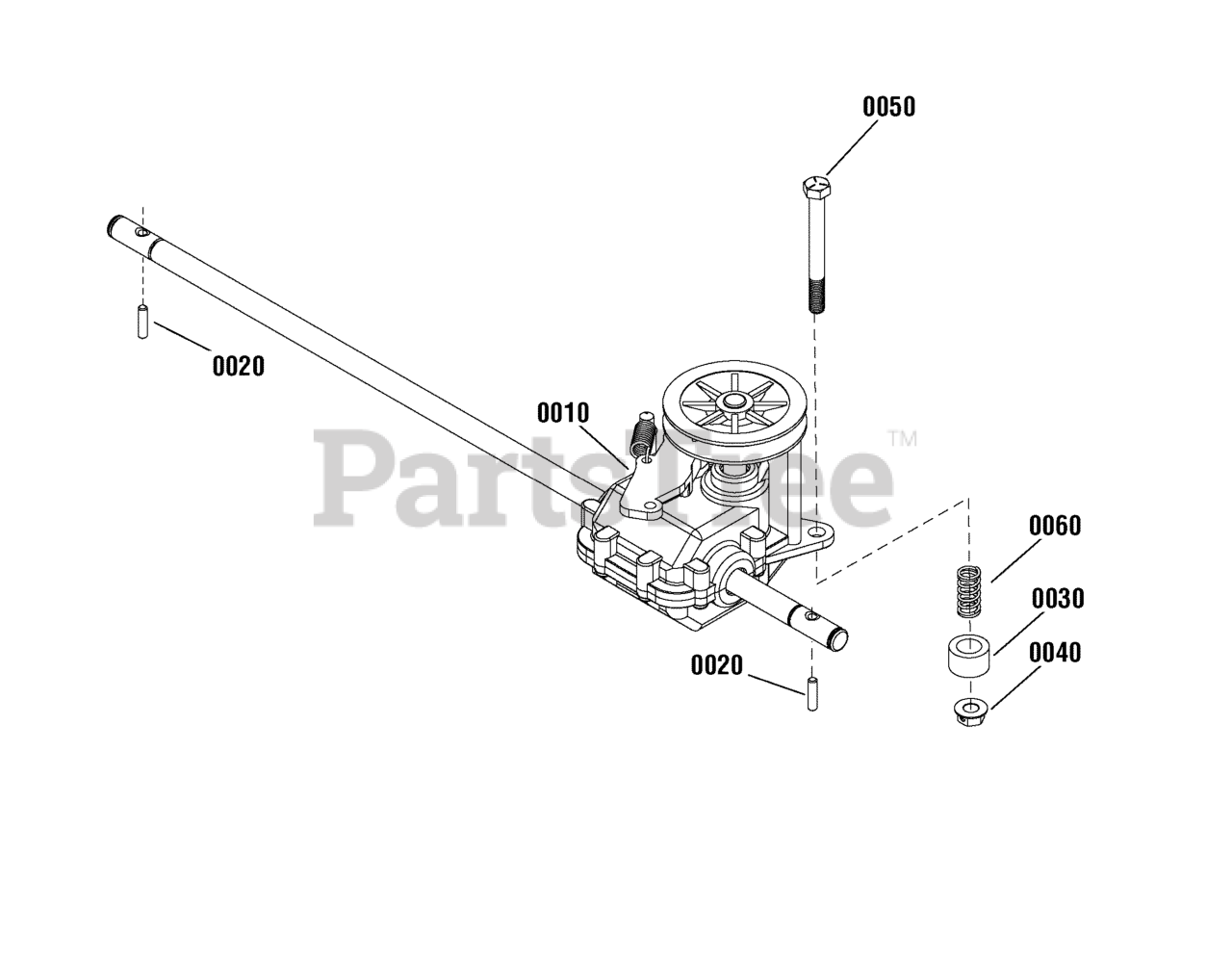

Transmission Group (7501884) Parts Diagram

  • Title

0010

Murray 7101206MA

TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive

$137.99

$

Usually ships in 2-12 days

0

0020

Murray 7101270YP

PIN, Drive

$5.49

$

In Stock, only 2 left!

0

0030

Murray 7102671YP

SPACER, Drive Transmission

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0050

Murray 01X156MA

BOLT, Hex-Head, 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0060

Murray 164X27MA

SPRING, Compression

$3.99

$

Usually ships in 2-12 days

0
