EBTP 22650 E (7800878) - Brute 22" Walk-Behind Mower (2012) Handle & Controls Group (7501891) Parts Diagram

22" Walk-Behind Mower

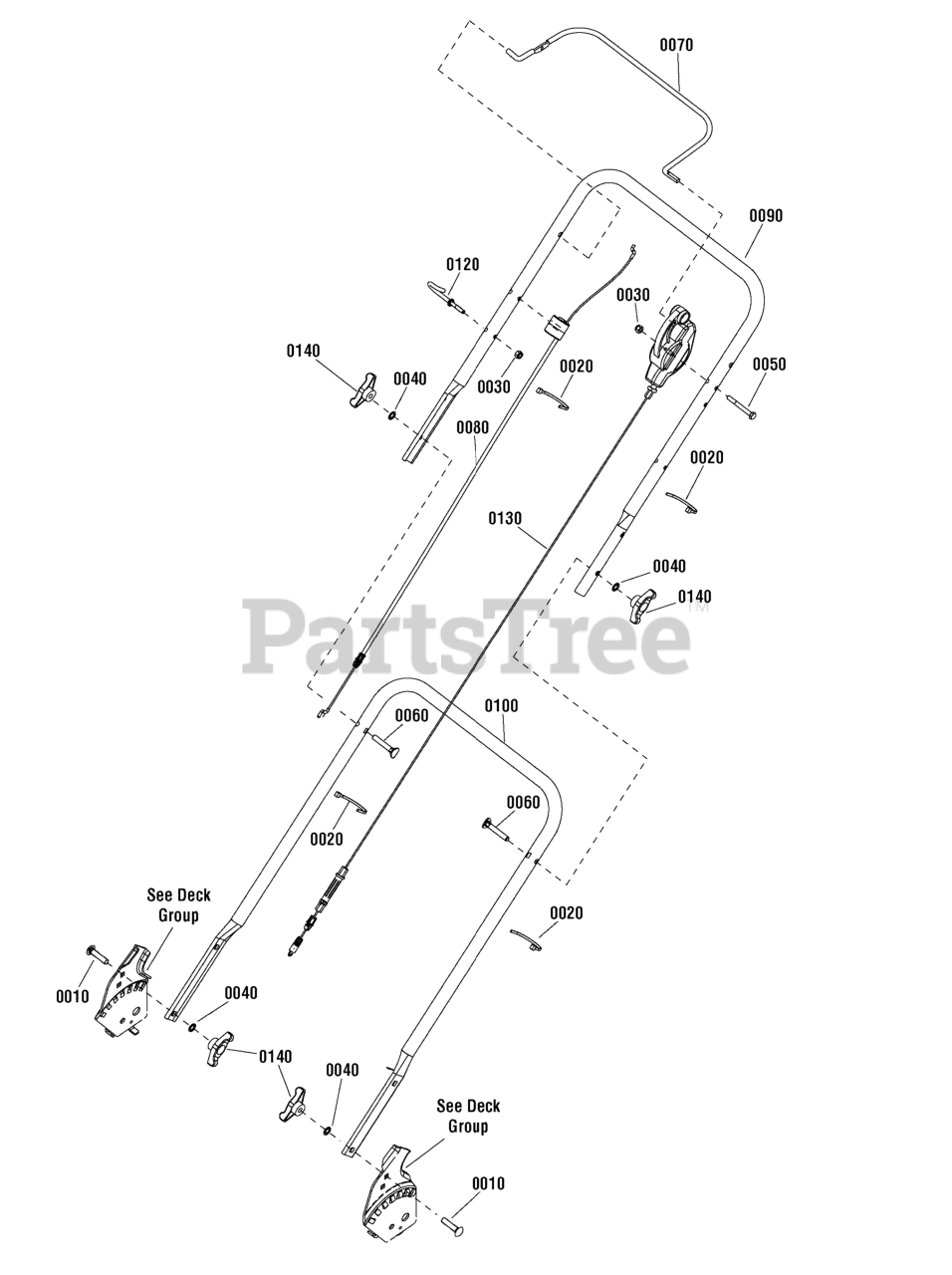

Handle & Controls Group (7501891) Parts Diagram

  • Title
0010

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0020

Murray 7024649YP

WIRE TIE, 11 Inch Std Blk Nylon

$5.49

$

Usually ships in 2-12 days

0

0030

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7090892YP

CAPSCREW, Hex Head, 1/4-20 x 2-1/4, GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

0060

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

0070

Murray 7103975AYP

BAIL, OPC Propelled

$12.99

$

Usually ships in 2-12 days

0

0080

Murray 7103978YP

CABLE, Bail, Std Propelled, 53.5"

$21.99

$

Usually ships in 2-12 days

0

0090

Murray 7300705AMA

HANDLE, Upper

$51.99

$

Usually ships in 2-12 days

0

0100

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

0120

Murray 071530MA

GUIDE, Rope, 1/4-20 thread

$5.99

$

Usually ships in 2-12 days

0

0130

Murray 1101670MA

CONTROL, Drive, Single Speed

$54.99

$

In Stock, Qty 8

0

0140

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0
