EBTP 2265 (7800693) - Brute 22" Walk-Behind Mower (2010) Engine & Blade Group Parts Diagram

22" Walk-Behind Mower

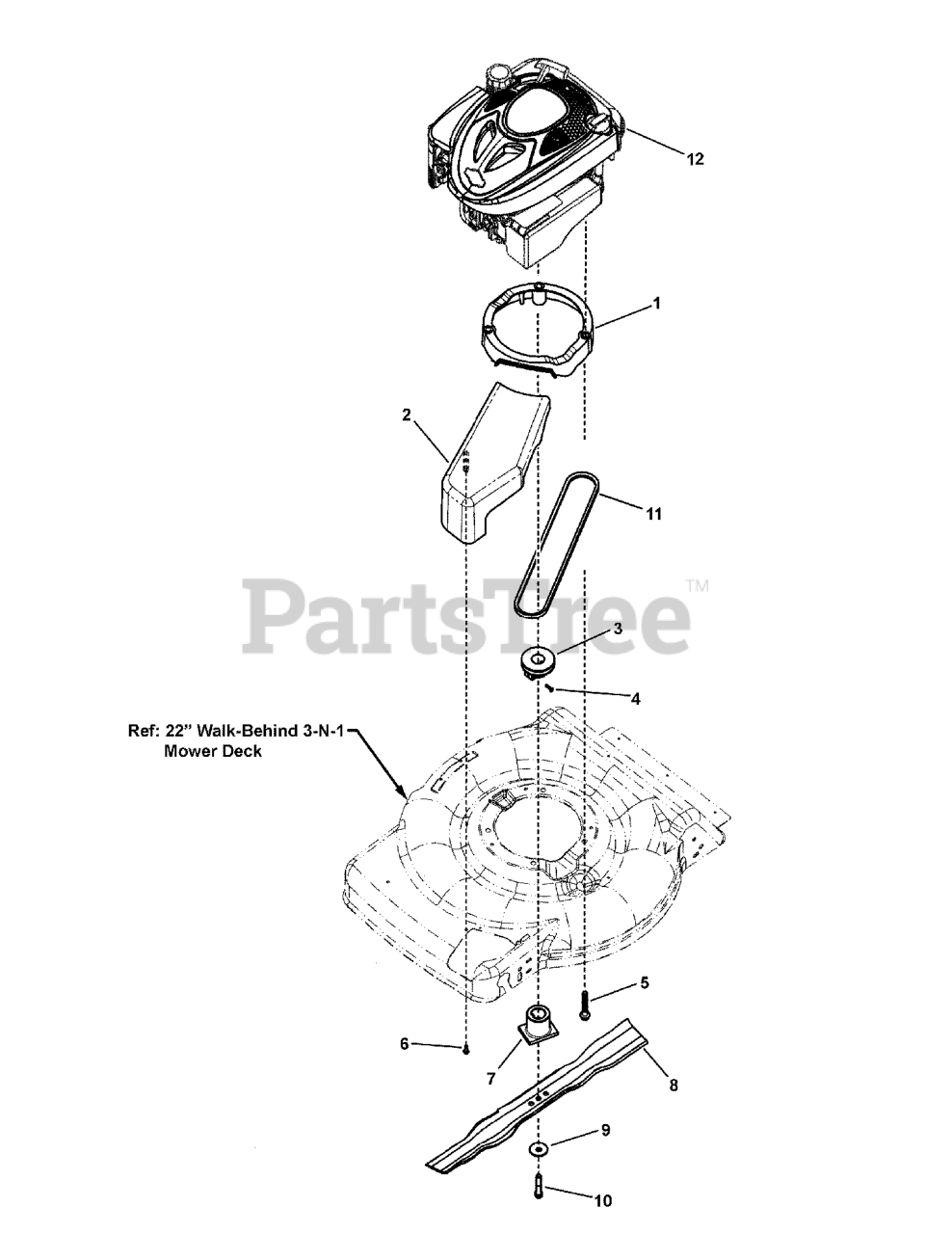

Engine & Blade Group Parts Diagram

  • Title

1

Murray 7101449YP

ASSY, Engine Spacer, 22" WBM, Propelled

$64.99

$

Usually ships in 2-12 days

0

2

Murray 1101596MA

COVER, Belt, Plastic

$37.99

$

Usually ships in 2-12 days

0

3

Murray 7100763MA

PULLEY, Engine, 22" Deck, SS

$12.99

$

Usually ships in 2-12 days

0

4

Murray 26X303MA

SCREW, #8-11 Poly Thread x .63, Pan Head Cross Recess

$3.99

$

Usually ships in 2-12 days

0

5

Murray 025X11MA

BOLT, 3/8-16 NS x 2-1/2" Hex Head

$6.99

$

Usually ships in 2-12 days

0

6

Murray 80004416YP

SCREW, 4.8MM X 1.59MM X 13MM, Torx Round Washer Head, HI-LO

Note: (Was 7900018YP)

$

$

Currently unavailable

7

Murray 7100740YP

HUB, Blade, 22" Deck

$15.99

$

Usually ships in 2-12 days

0

8

Murray 7100851AYP

BLADE, 22", Walk Mower

$19.99

$

In Stock, only 1 left!

0

9

Murray 1101989MA

WASHER, .38" ID x 1.183 OD Bellville

$5.49

$

Usually ships in 2-12 days

0

10

Murray 01X144MA

BOLT, 3/8-24 NF x 3-1/4" Hex Head, GR 8

$5.49

$

In Stock, only 3 left!

0

11

Murray 7101193MA

BELT, Drive 22" WBM, SS

Note: 3L Section; 33.75 Effective Length

$22.99

$

In Stock, only 2 left!

0

12

Murray 124T02-0188-B1

* ENGINE, B&S, 650 Ser, X-Spec, B1, Euro

Note: used on 7800693 model

$

$

Currently unavailable

12

Murray 126T02-0268-B1

* ENGINE, B&S, 675 Series QTM, Euro

Note: used on 7800694 model

$

$

Not available
